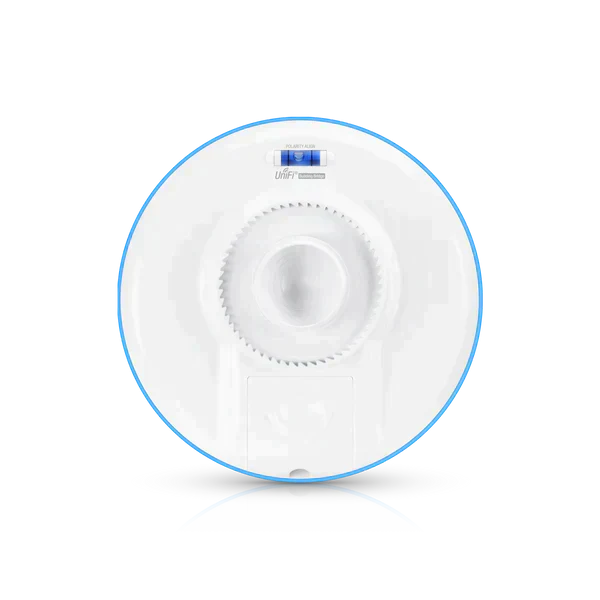

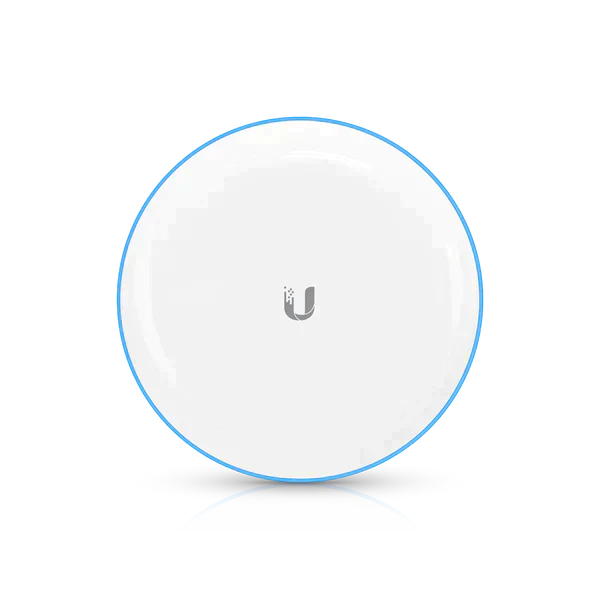

UBB-XG Ubiquiti UniFi Building-to-Building Bridge
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
1.7+ Gbps bi-directional Plug and Play 60 GHz Bridge with 5 GHz Radio Redundancy, UniFi Application Management, and range of up to 500 m
UBB-XG - 1 x RTJ45 1 Gb/s Port + 1 x 10Gb/s SFP+ Port
UniFi® Building-to-Building Bridge is the ideal solution for short-range, high-throughput connectivity. Integration with the UniFi application makes bridging two networks seamless.
As a pack of two radios, UniFi Building-to-Building Bridge contains everything you need to get up and running within minutes. Enjoy simple, easy-to-use gigabit connectivity anywhere.
Package Contents:
UniFi Building-to-Building Bridge (x2)
Ball joint mount (x2)
Lock ring (x2)
Metal strap (x2)
Gigabit PoE (48V, 0.32A) with mounting bracket (x2)
Power cord (x2)
Frequently asked questions5 questions
What is the UBB-XG designed for?
What ports does each radio have?
How is the UBB-XG powered?
What is included in the box?
Can it be installed outdoors and on a pole?
Specifications38 specifications · 3 sections
| Overview | |
|---|---|
| Dimensions | ⌀191.8 x 59 mm / (⌀7.6 x 2.3") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 500 m (1,640 ft) |
| Uplink | 10G SFP+ |
| Mounting Locations | Wall, pole |
| Weatherproofing | IPX6 |
| Power Method | PoE++ / Passive PoE |
| Performance | |
| MIMO · 5 GHz | 2 x 2 (DL MU-MIMO) |
| Max. Data Rate · 60 GHz | 6 Gbps |
| Max. Data Rate · 5 GHz | 866.6 Mbps (BW80) |
| Antenna Gain · 60 GHz | 21 dBi |
| Antenna Gain · 5 GHz | 14 dBi |
| Antenna Gain · 2.4 GHz | 2 dBi (BLE) |
| Max. TX Power · 60 GHz | 16 dBm |
| Max. TX Power · 5 GHz | 23 dBm |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Supported Data Rates · 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES |
| Hardware | |
| Max. Power Consumption | 29W |
| Supported Voltage Range | 48V DC ± 10% |
| Networking Interface | (1) GbE RJ45 port / (1) 1/10G SFP+ port |
| Weight | Device: 1.7 kg (3.8 lb) / With mount: 2.9 kg (6.3 lb) |
| Operating Modes | PtP |
| Wind Loading | 56 N at 200 km/h (12.6 lbf at 125 mph) |
| Pole Mount Diameter | 1–2.5" (25–63.5 mm) |
| Management | Ethernet / Bluetooth |
| Channel Bandwidth | Main radio (60 GHz): 2160/4320 MHz / Backup radio (5 GHz): VHT 20/40/80 MHz |
| Enclosure Material | Aluminum alloy, UV-resistant polycarbonate |
| Mount Material | Stainless steel |
| Button | (1) Factory reset |
| LEDs · System | R/G/B |
| Operating Frequency | Main radio (60 GHz): 57 - 66 GHz / Backup radio (5 GHz): / US/CA / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / / Worldwide / 5150 - 5850 MHz |
| Bluetooth (MHz) | Worldwide: 2400 - 2483.5 MHz |
| Ambient Operating Temperature | -40 to 55° C (-40 to 131° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Terragraph |
