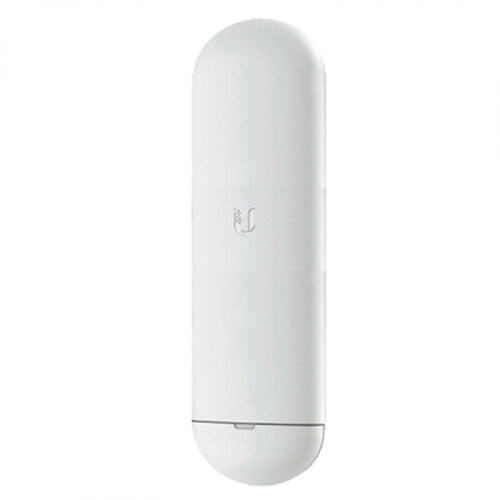

NS-5AC Ubiquiti airMAX NanoStation Radio

$227.70 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

Classic NanoStation design with updated proprietary airMAX ac chipset and dedicated management WiFi for easy UISP® mobile app support and fast setup.

Ubiquiti Networks set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE). The NanoStation AC and NanoStation AC Loco take the same concept to the future with sleek form factors, along with integrated airMAX (MIMO TDMA protocol) technology and dedicated Wi-Fi management.

The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC and NanoStation AC Loco get maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the NanoStation AC and NanoStation AC Loco make them extremely versatile and economical to deploy.

Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).

Features:

New antenna
Improved design
Management WiFi Radio/UISP mobile app
AirOS 8

Frequently asked questions5 questions

What is the NS-5AC NanoStation used for?

It combines a radio and antenna in one compact unit, with airMAX ac technology. It works well as a simple point-to-point (PtP) bridge or as a point-to-multipoint (PtMP) station (CPE). It supports Access Point and Station operating modes.

How is the NS-5AC powered, and is a PoE adapter included?

It is powered over passive PoE, and a 24V, 0.5A gigabit PoE adapter is included. It accepts 44-54V DC or 22-27V DC, with a maximum power consumption of 9W.

What ports and mounting options does it have?

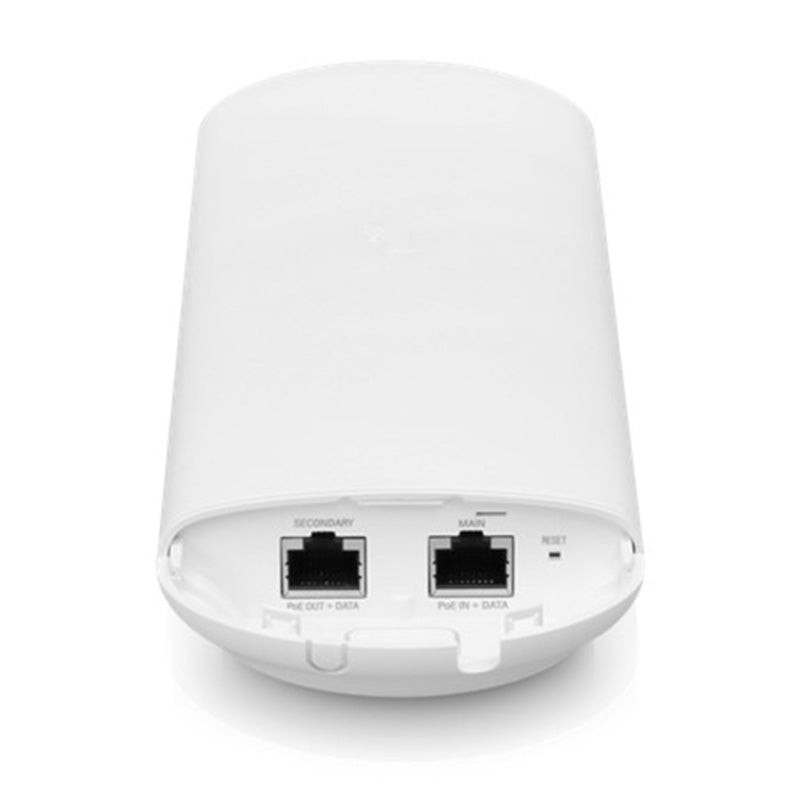

It has two GbE RJ45 ports. Pole and wall mounts are included, so it can be installed on either type of surface.

What frequency range and antenna gain does it offer?

It covers 5150-5875 MHz worldwide and has a 16 dBi dual-linear polarised antenna with a 45° beamwidth. Channel bandwidths of 10/20/30/40/50/60/80 MHz are supported.

Can it be set up with a mobile app?

Yes. It includes a dedicated management WiFi radio (2412-2472 MHz worldwide) that supports the UISP mobile app for easier, faster setup. It runs AirOS 8.

Click HERE to Access the Datasheet

Click HERE to Access the Installation Guide

Specifications24 specifications · 6 sections

Mechanical
Dimensions	With Mount: / 257 x 84 x 41 mm (10.1 x 3.3 x 1.6") / Without Mount: / 257 x 84 x 30 mm (10.1 x 3.3 x 1.2")
Weight	233 g (8.2 oz)
Enclosure Materials	UV-resistant polycarbonate

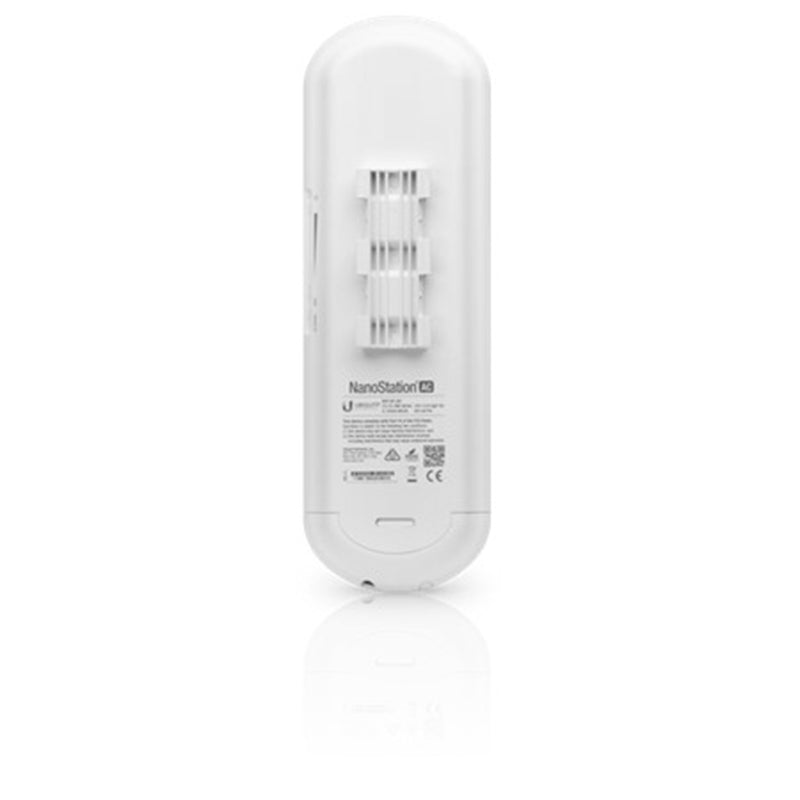

Mounting	Pole and Wall Mount (Mounts Included)
Hardware
Networking Interface	(2) GbE RJ45 ports
Power Method	Passive PoE 2-pair (4, 5+; 7, 8 return) / PoE alternative A (pairs 1, 2+; 3, 6 return)
Power Supply	24V, 0.5A gigabit PoE adapter (Included)
Supported Voltage Range	44–54V DC / 22–27V DC
Max. Power Consumption	9W
Ambient Operating Temperature	-40 to 70° C (-40 to 158° F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC, Anatel: 09603-19-08356
Software
Operating Modes	Access Point / Station
QoS	WMM packet classification with user-level priority: High, Medium, Low
System
Channel Bandwidth	10/20/30/40/50/60/80 MHz
Antenna Gain	16 dBi
Max. VSWR	1.6:1
Polarization	Dual-Linear
Antenna beamwidth	45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Cross-Pol Isolation	Min. 20 dB
Radio Frequency
Supported Frequency Range · Worldwide	5150 - 5875 MHz
Supported Frequency Range · US/CA	U-NII-1: 5150-5250 MHz / U-NII-2A: 5250-5350 MHz / U-NII-2C: 5470-5725 MHz / U-NII-3: 5725-5850 MHz
Management Radio (MHz)
Supported Frequency Range · Worldwide	2412 - 2472 MHz
Supported Frequency Range · US/CA	2412 - 2462 MHz
