Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
AMO-5G13
AMO-5G13 Ubiquiti airMAX Omni 5GHz Antenna
$291.09 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
Brisbane (none in stock)Sydney (none in stock)MelbourneAdelaide (none in stock)Perth (none in stock)North Lakes (none in stock)
Description
Description

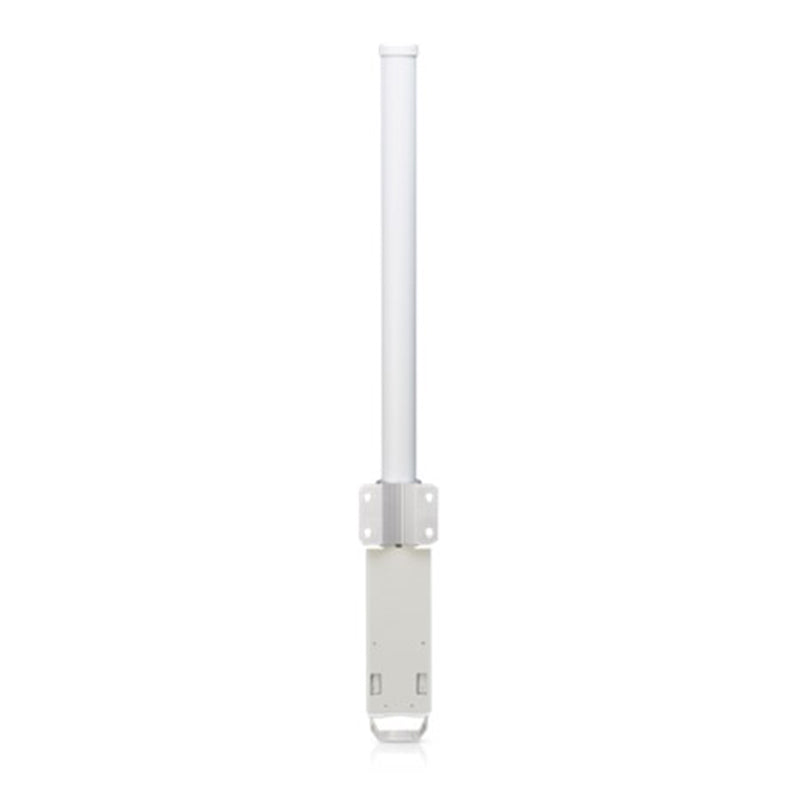

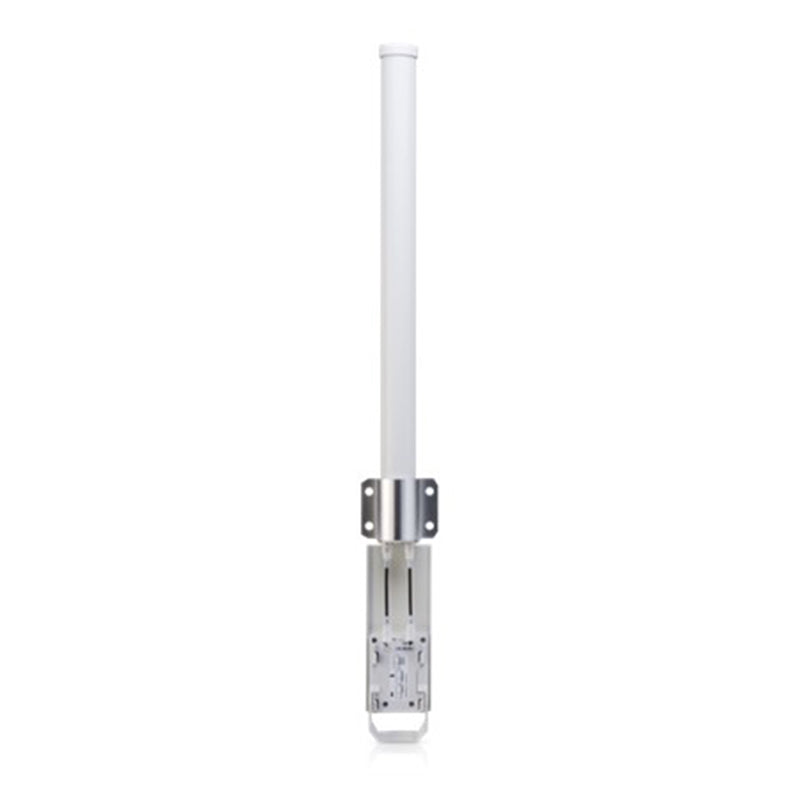

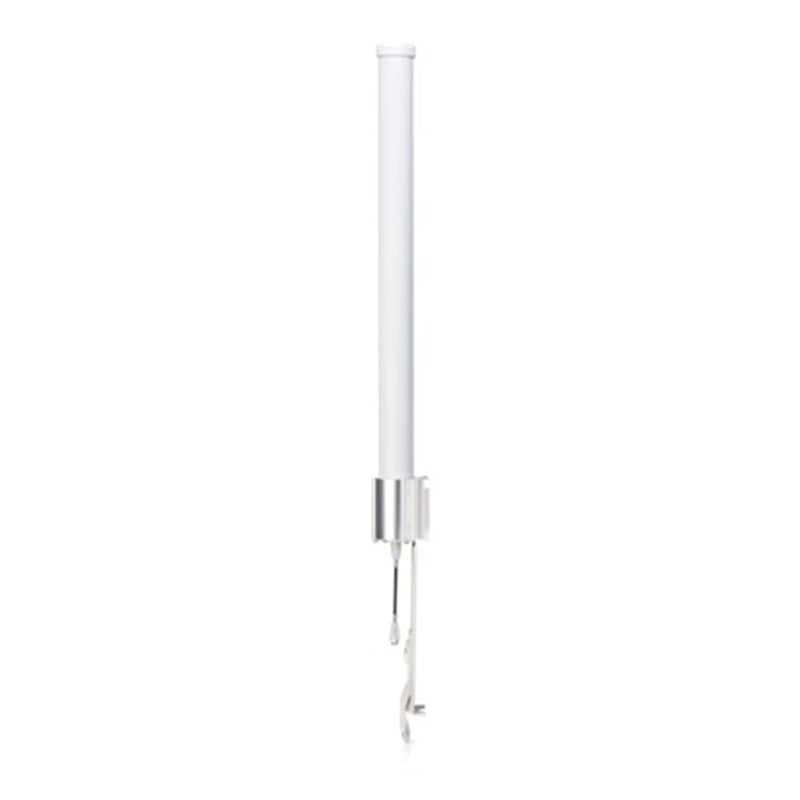

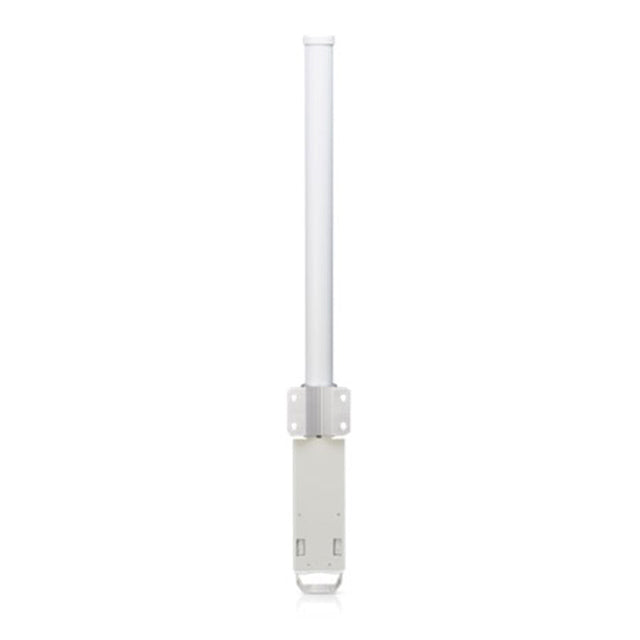

The AMO-5G13 is a 5 GHz, 13 dBi airMAX Omni antenna that provides powerful 360° coverage, 2x2 MIMO performance in Line‑of‑Sight (LoS) or Non‑Line‑of‑Sight (NLoS) applications.
Every airMAX Omni antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Omni Antenna for your application.
Frequently asked questions5 questions
What is the AMO-5G13 used for?
It is a 5 GHz, 13 dBi airMAX Omni antenna that provides 360° coverage with 2x2 MIMO performance. It suits both Line-of-Sight (LoS) and Non-Line-of-Sight (NLoS) applications.
What frequency range and gain does it offer?
It covers 5.45–5.85 GHz with 13 dBi of antenna gain. Elevation beamwidth is 7° and the downtilt is 2°.
How is the antenna installed?
It has a built-in Rocket mount, so installation needs no special tools. You snap the Rocket radio securely into place and then mount the antenna.
What are its physical dimensions and wind rating?
It measures 799 x 90 x 65 mm and weighs 820 g. It is rated for wind survivability of 200 km/h, with a wind loading of 84.52 N at that speed.
What polarisation does the AMO-5G13 use?
It uses dual-linear polarisation with a minimum cross-pol isolation of 25 dB. Maximum VSWR is 1.5:1.
Specifications12 specifications · 2 sections
| Mechanical | |
|---|---|
| Dimensions | 799 x 90 x 65 mm / (31.5 x 3.5 x 2.6") |
| Weight | 820 g (1.8 lb) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 84.52 N at 200 km/h (19 lbf at 125 mph) |
| Downtilt | 2° |
| Hardware | |
| Frequency Range | 5.45—5.85 GHz |
| Antenna Gain | 13 dBi |
| Elevation Beamwidth | 7° |
| Max. VSWR | 1.5:1 |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 25 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model AMO-5G13 · Ubiquiti's spec sheet
