AM-5AC21-60 Ubiquiti airMAX AC Sector 5GHz Antenna

Price:

$336.40

SKU: AM-5AC21-60

Chat 7am to 10pm - 7 days a week

We love what we do!

Shipping Costs From

Standard - $15 or Express - $20

Want The Best Prices?

Request a quote

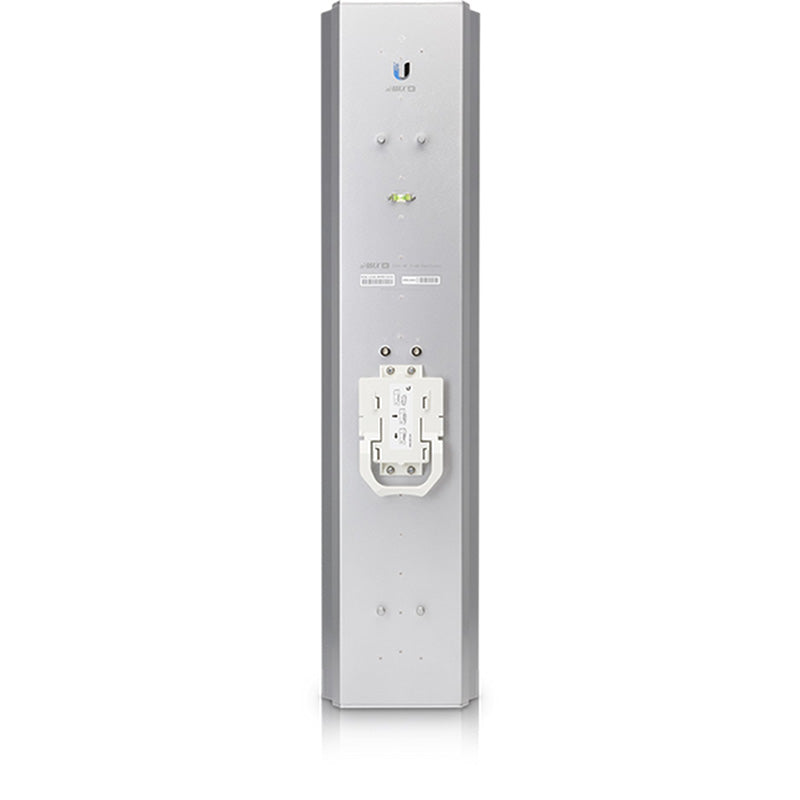

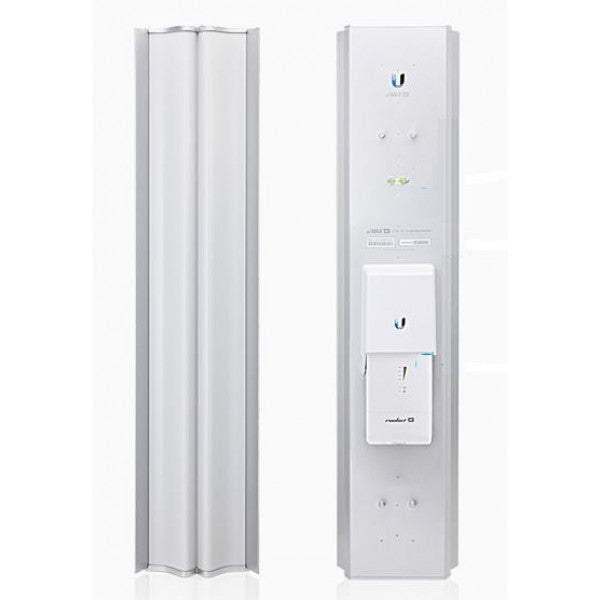

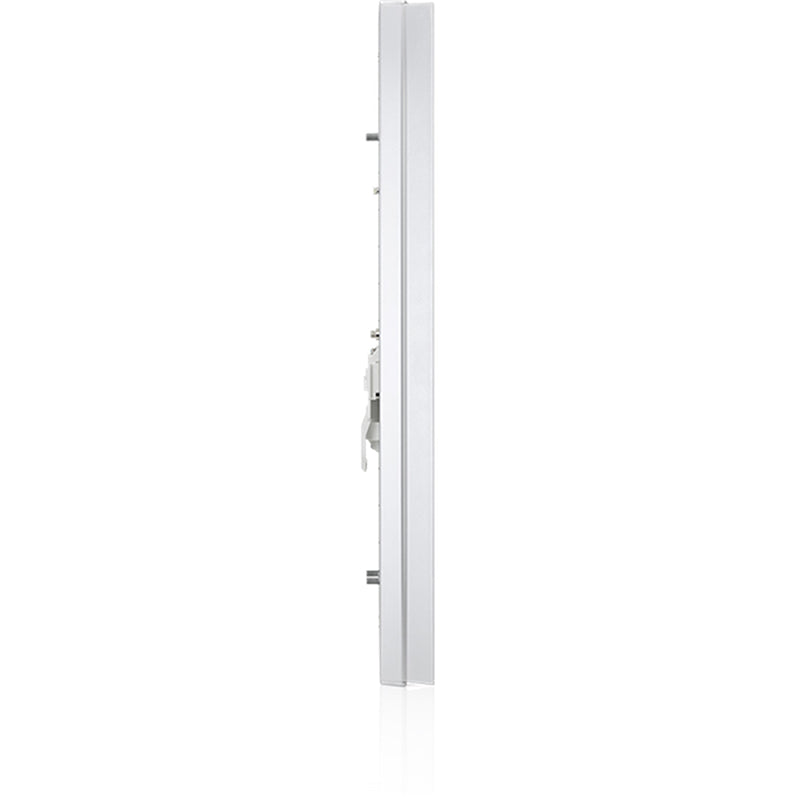

Ubiquiti has you covered with the next generation of 2x2 MIMO sector antennas from Ubiquiti Networks, the airMAX ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket 5ac radios. They are also compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.



Breakthrough Performance the airMAX ac Sector Antennas are highly resistant to noise interference in co-location deployments. The innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area potentially on the same tower. Improved Signal-to-Noise Ratio (S/N or SNR) allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate).



Due to innovative design, the Ubiquiti airMAX ac Sector Antennas provide higher gain and superior beam performance for high-capacity, multipoint networks.



Features:


5.10 - 5.85 GHz
21 dBi
Beamwidth: 60°
Dual-Linear Polarization
Universal Pole Mount (Included)
Rocket Bracket (Included)
Weatherproof RF Jumpers (Included)

  • Datasheets and Guides

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Learn how to create the perfect Point to Point connection

Step One - Get to know how a point to point works

Step Two - Choose your Point to Point device

There are many factors that affect a point to point to point connection, including distance, elevation, obstructions etc.   Please do reach out to our team if you are not sure.  We have listed some of the most common devices below, which should be good for connections that are generally less than 2km in length.

Step Three - You will probably need some way to mount it

Step Four - You will need to power it

Many of the devices will come with a PoE injector in the box.  If they don't you will need to either power it from a PoE switch or a PoE injector.

$283.50$174.38

Not sure what PoE is, this video may help.
