Manufacturer's photos. Where a power lead is pictured, an AU one is provided.

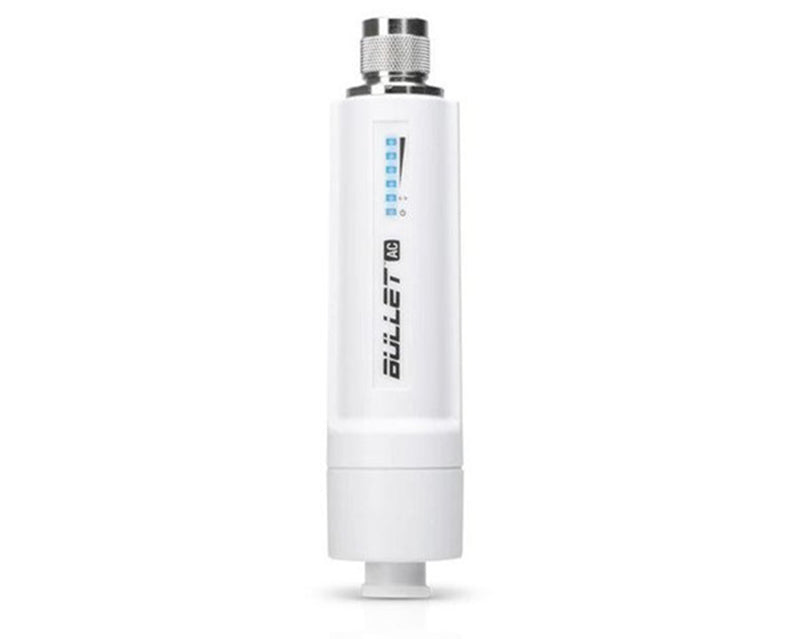

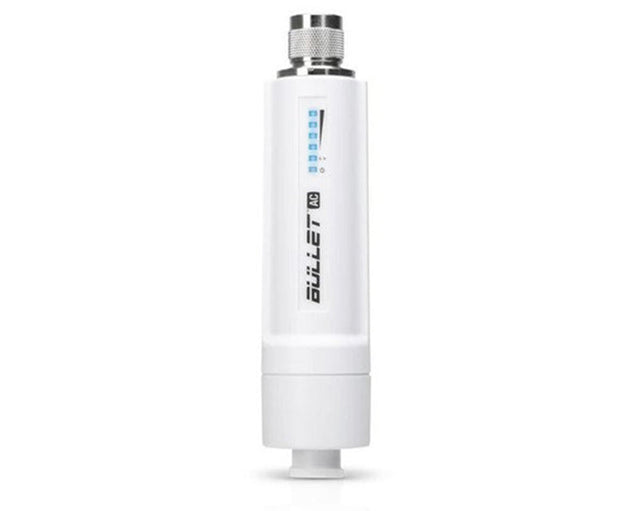

B-DB-AC Ubiquiti Bullet Dual-Band AC ROW
Description
Description
Ubiquiti Networks designed airMAX® ac radios for high performance and ease of installation. You have the freedom to deploy the Bullet™ AC anywhere in the world, as it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).
The Bullet AC eliminates the need to use RF cables and requires no special antenna or tools to install. No radio card / host board issues. No RF cable quality concerns. No mechanical stability concerns. No enclosure mounting requirements. With the Bullet AC, operators can just plug and go.
Features:
Dual-Band Frequency: The Bullet AC covers both 2.4 and 5 GHz spectrums, covering a wide range of frequency bands that work well for both short and long-distance links.
Passive Power over Ethernet (PoE): 24V Passive PoE functionality is included. Both power and data are carried over a single Ethernet cable to the Bullet AC. Use the included PoE Adapter or an optional PoE switch.
Output Power: The Bullet AC offers up to 22 dBm of output power.
Weatherproof Design: The Bullet AC features a weatherproof design. Made from a high-grade, powder-coated aluminum, the casing can withstand nature’s harshest outdoor elements.
Frequently asked questions5 questions
Which frequency bands does the Bullet AC cover?
How is the Bullet AC powered?
What throughput can the Bullet AC deliver?
Can the Bullet AC be used outdoors?
What operating modes and antenna connection does it have?
Click HERE to access the Datasheet
Specifications18 specifications · 5 sections
| Mechanical | |
|---|---|
| Dimensions | 190 x 46 mm (7.5 x 1.8") |
| Weight | 116 g (4.1 oz) |
| Enclosure Materials | Polycarbonate |
| Hardware | |

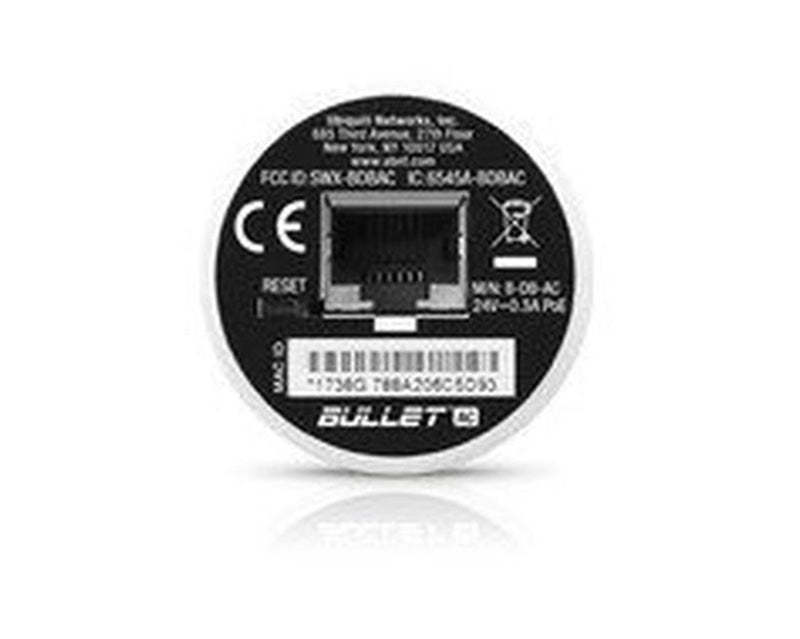

| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V DC, 0.3A gigabit PoE adapter (Not Included) |
| Supported Voltage Range | 20–27V DC |
| Max. Power Consumption | 7W |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Shock and Vibration Certification | ETSI300-019-1.4 |
| Certifications | CE, FCC, IC |

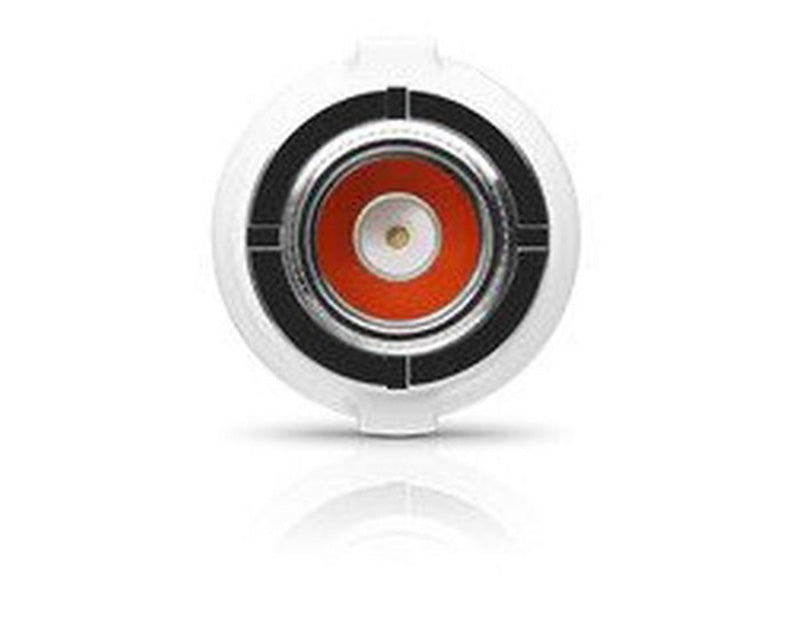

| Antenna Connector | N-Type Connector |
| Software | |
| Operating Modes | Access Point / Station |
| QoS | WMM packet classification with user-level priority: High, Medium, Low |
| System | |
| Total Throughput | 5 GHz: 300+ Mbps / 2.4 GHz: 160+ Mbps |
| Radio Frequency | |
| Supported Frequency Range · Worldwide | 2400 - 2483.5 MHz / 5150 - 5875 MHz |
| Supported Frequency Range · US/CA | 2400 – 2483.5 MHz / U-NII-1: 5150 – 5250 MHz / U-NII-2A: 5250 – 5350 MHz / U-NII-2C: 5470 – 5725 MHz / U-NII-3: 5725 – 5850 MHz |
