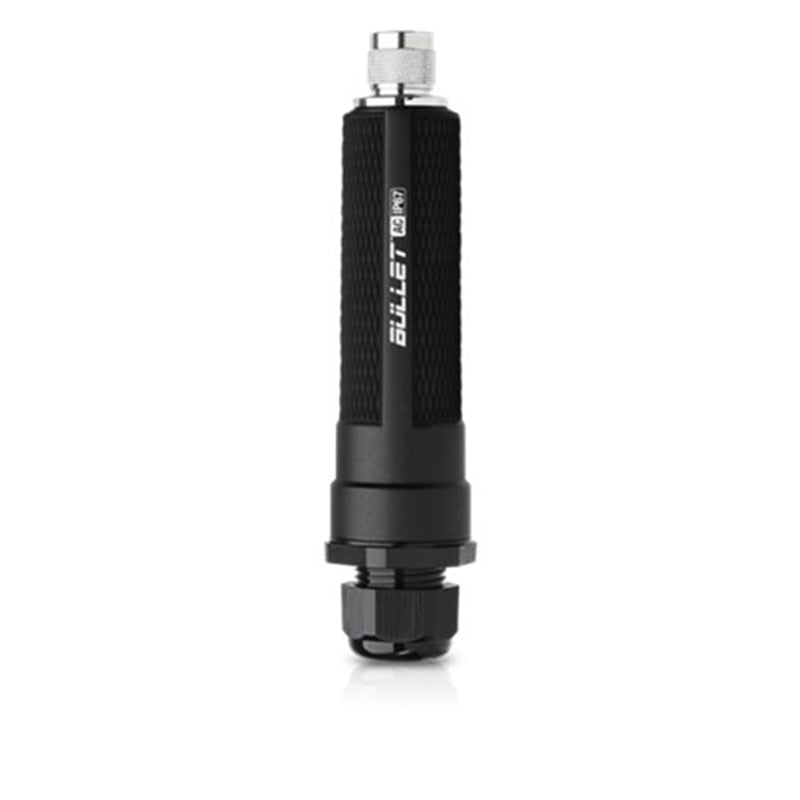

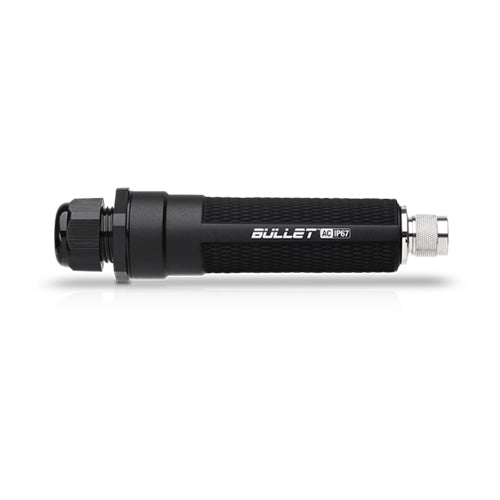

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
BulletAC-IP67 Ubiquiti airMAX Bullet AC Dual Band Radio
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
Ubiquiti designed airMAX ac radios for high performance and ease of installation. You have the freedom to deploy the Bullet ™AC anywhere in the world, as it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).
Bullet™ AC IP67 covers both 2.4 and 5 GHz bands, covering a wide range of frequency bands that work well for both short and long-distance links. It also features IP 67 protection for deploy-anywhere reliability.
Features:
airMAX ac Technology for 300+ Mbps Throughput at 5 GHz
Superior Processing by airMAX Engine with Custom IC
Plug and Play Integration with airMAX Antennas
Frequently asked questions5 questions
Which frequency bands does the BulletAC-IP67 cover?
What throughput can the Bullet AC deliver?
How is the BulletAC-IP67 powered?
Is the BulletAC-IP67 suitable for outdoor installation?
How does it connect to an antenna, and what operating modes does it support?
Specifications20 specifications · 5 sections
| Mechanical | |
|---|---|
| Dimensions | 190 x 46 mm (7.7 x 1.8") |
| Weight | 190 g (6.7 oz) |
| Enclosure Materials | Aluminum, rubber |
| Weatherproofing | IP67 |
| Hardware | |

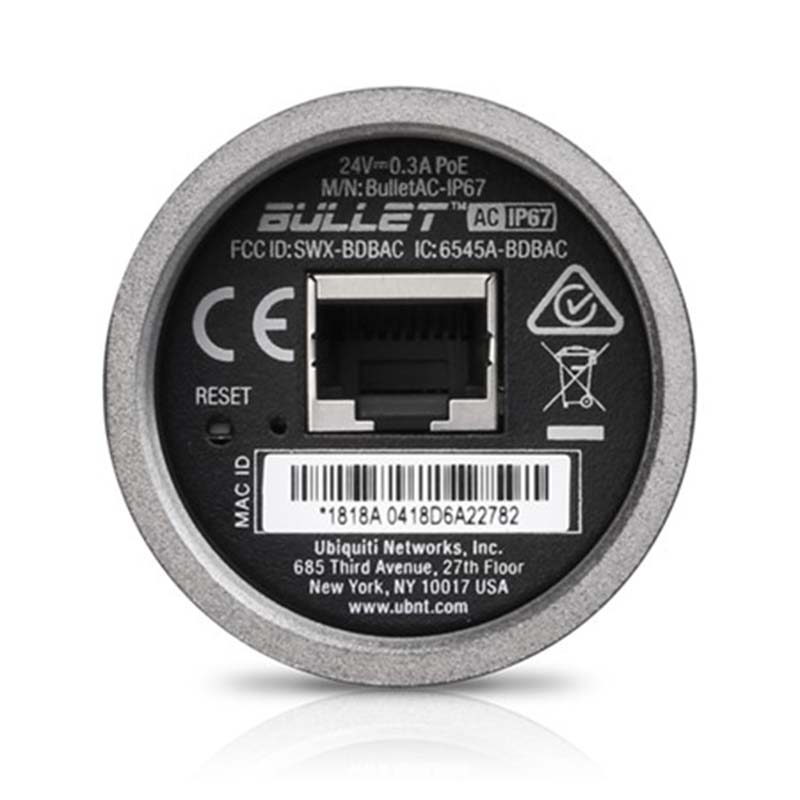

| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V DC, 0.3A gigabit PoE adapter (Not Included) |
| Supported Voltage Range | 20–27V DC |
| Max. Power Consumption | 7W |
| Max. TX Power | 22 dBm |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Shock and Vibration Certification | ETSI300-019-1.4 |
| Certifications | CE, FCC, IC |

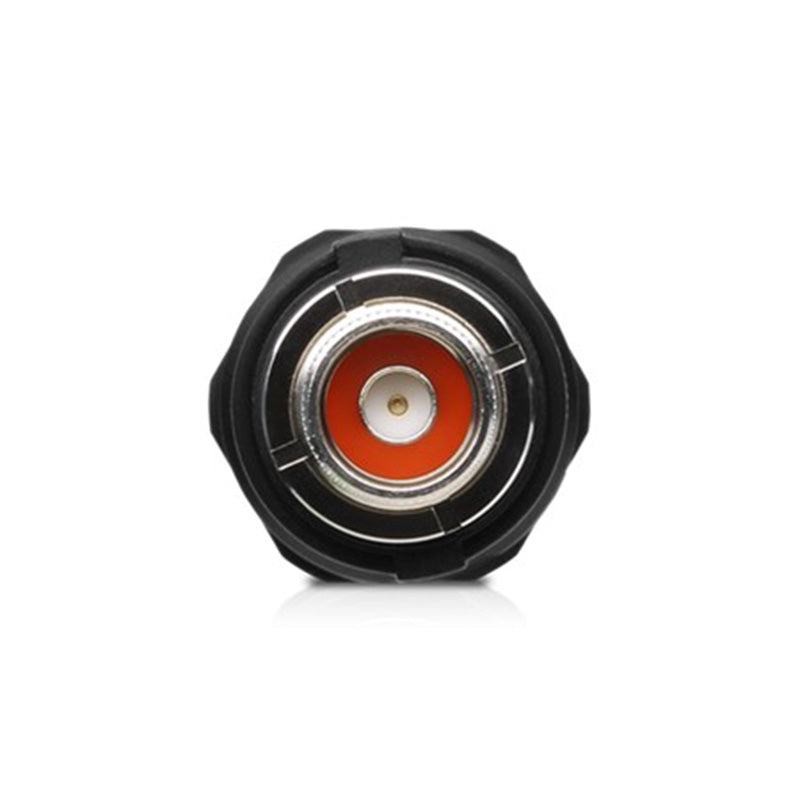

| Antenna Connector | N-Type Connector |
| Software | |
| Operating Modes | Access Point / Station |
| QoS | WMM packet classification with user-level priority: High, Medium, Low |
| System | |
| Total Throughput | 2.4 GHz: 160+ Mbps / 5 GHz: 300+ Mbps |
| Radio Frequency | |
| Supported Frequency Range · Worldwide | 2400 - 2483.5 MHz / 5150 - 5875 MHz |
| Supported Frequency Range · US/CA | 2400 - 2483.5 MHz / U-NII-1: 5150-5250 MHz / U-NII-2A: 5250-5350 MHz / U-NII-2C: 5470-5725 MHz / U-NII-3: 5725-5850 MHz |
