Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
CKG2-RM

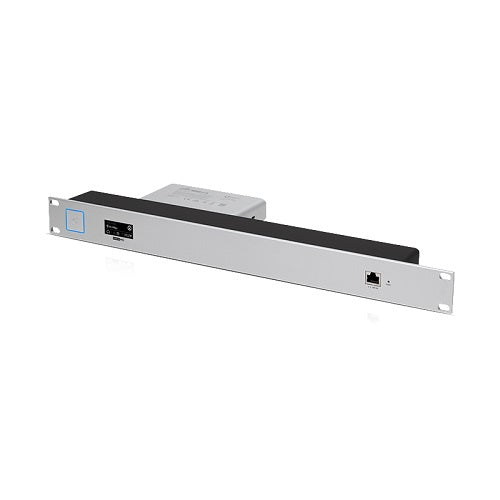

CKG2-RM G2 Cloud Key Rack Mount
$194.84 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
The Cloud Key G2 and Cloud Key G2 Plus lock securely into the back of the 19" Rack Mount Accessory for a clean and secure installation.
The Cloud Key front panel display, RJ45 ethernet connector, reset button, and status LED are exposed on the front panel for easy access.
Features:
Works with CloudKey G2 and Cloud Key G2 Plus
Front-panel ethernet port for clean installation
Includes four cage nuts and M6 bolts
Frequently asked questions5 questions
Which Cloud Key models does this rack mount work with?
It is designed for the Cloud Key G2 and the Cloud Key G2 Plus. Either unit locks securely into the back of the 19" rack mount accessory.
Can I still access the Cloud Key's display and ports once it is rack mounted?
Yes. The front panel display, RJ45 ethernet connector, reset button and status LED are all exposed on the front panel, so the ethernet port stays easy to reach for a clean installation.
What mounting hardware is included?
The rack mount includes four cage nuts and M6 bolts.
How is the Cloud Key powered when installed in this rack mount?
The Cloud Key supports PoE, 5V DC at 1A, or USB-C at 5V with a minimum of 1A. Maximum power consumption is 12.95W when powered over PoE.
What are the dimensions and operating conditions?
It measures 481.5 x 43.7 x 47 mm (19 x 1.7 x 1.9") and weighs 600 g (1.3 lb). It operates at ambient temperatures of 0 to 35° C and 20 to 80% noncondensing humidity.
Customer reviews
5.0
· 1 review
Click HERE to access the Installation Guide
Specifications10 specifications · 1 sections
| Overview | |
|---|---|
| Dimensions | 481.5 x 43.7 x 47 mm / (19 x 1.7 x 1.9") |
| Weight | 600 g (1.3 lb) |
| Enclosure Materials | PC, aluminum alloy, SGCC steel |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | PoE, 5V DC, 1A / USB-C 5V, Min. 1A |
| Max. Power Consumption | 12.95W (PoE) |
| Buttons | (1) Reset / (1) Power |
| Ambient Operating Temperature | 0 to 35° C (32 to 95° F) |
| Ambient Operating Humidity | 20 to 80% noncondensing |
| Certifications | CE, FCC, IC |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model CKG2-RM · Ubiquiti's spec sheet
