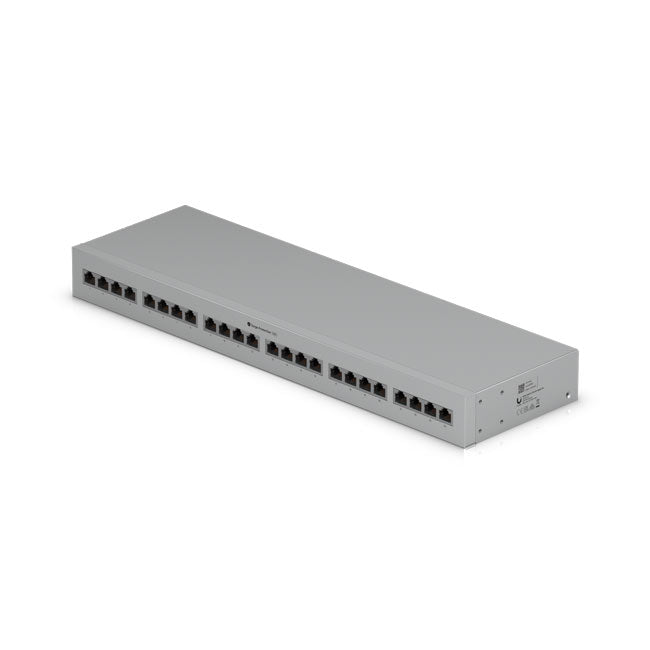

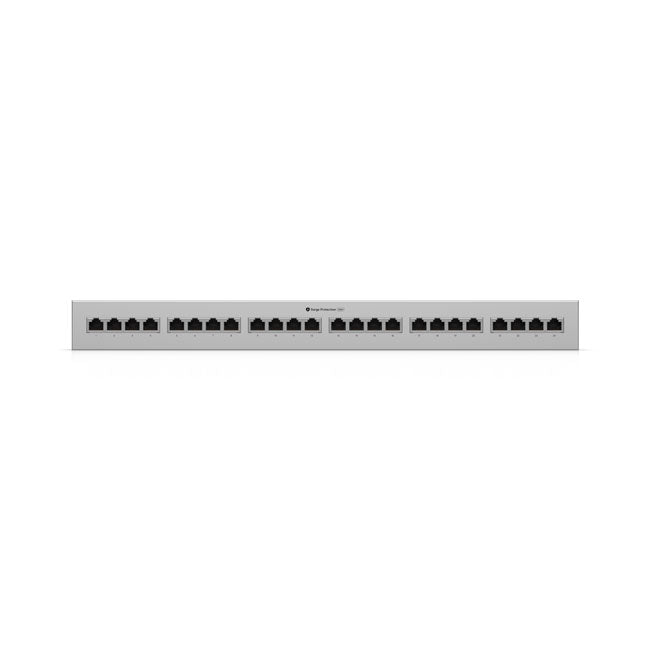

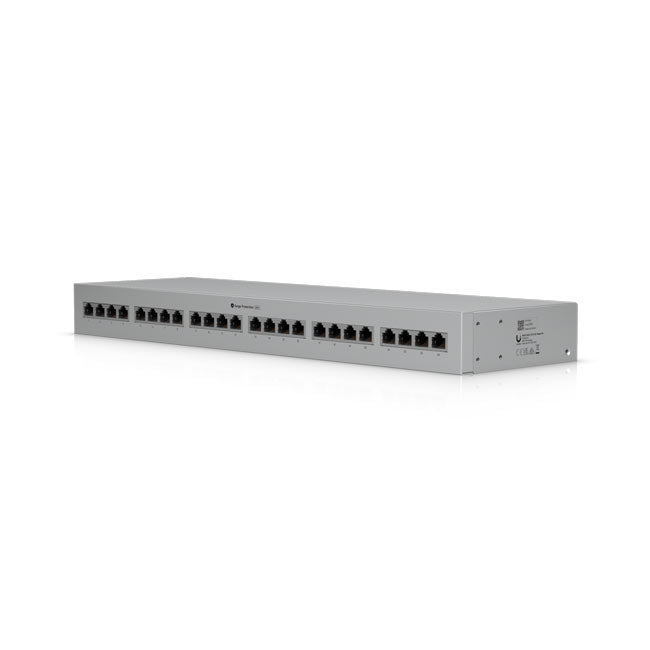

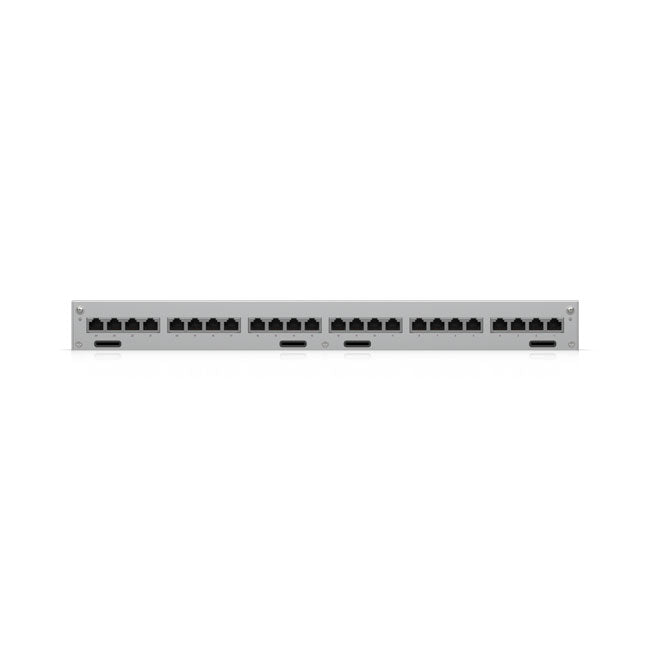

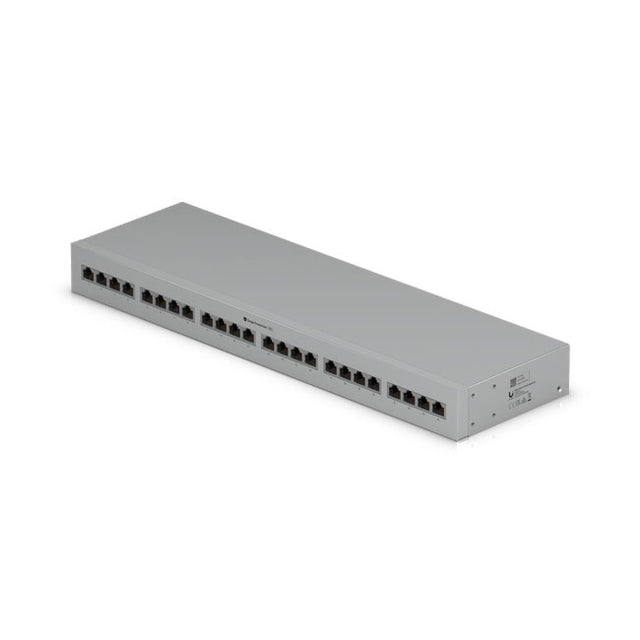

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UACC-ETH-SP-Panel-24
UUACC-ETH-SP-Panel-24 Ubiquiti Ethernet Surge Protection
$830.17 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes
Pickup may be possible in North Lakes, Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
Rack-mount indoor panel supports up to 10 GbE, PoE++, and 20kA surge discharge per port.
24-port integrated
1U rack-mount design
Frequently asked questions5 questions
What is this panel used for?
It is a rack-mount indoor Ethernet surge protection panel. It provides ESD/EMP protection by absorbing transient current in response to surge voltages, with a 20kA discharge current per port.
What network speeds and PoE standards does it support?
It protects data lines up to 10 Gbps and supports PoE++. Maximum capacitance is 1.0 pF at 1 MHz.
How many ports does it have and how is it mounted?
It has 24 integrated ports, with 48 RJ45 female connectors in total. It uses a 1U rack-mount design and measures 442.4 x 134 x 43.7 mm.
What are its build and weight?
The enclosure is made of SGCC steel and the panel weighs 2 kg (4.4 lb).
What operating conditions is it rated for?
It is rated for ambient temperatures from -40° to +80° C (-40° to 176° F) and 10 to 90% non-condensing humidity. It is designed for indoor use.
Specifications13 specifications · 2 sections
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 134 x 43.7 mm (17.4 x 5.3 x 1.7") |
| Weight | 2 kg (4.4 lb) |
| Enclosure Material | SGCC steel |
| Hardware | |
| Networking Interface | (48) RJ45 female connectors |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Max. Impulse Spark-Over Voltage | 600V @ 1kV/µs |
| Discharge Current | 20kA |
| Insulation | Max. Resistance: 1G ohm @ 50V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | Up to 10 Gbps |
| ESD/EMP Protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs |
| Ambient Operating Temperature | -40° to +80° C (-40° to 176° F) |
| Ambient Operating Humidity | 10 to 90% noncondensin |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model UACC-ETH-SP-Panel-24 · Ubiquiti's spec sheet
