Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UACC-ETH-SP-DIN

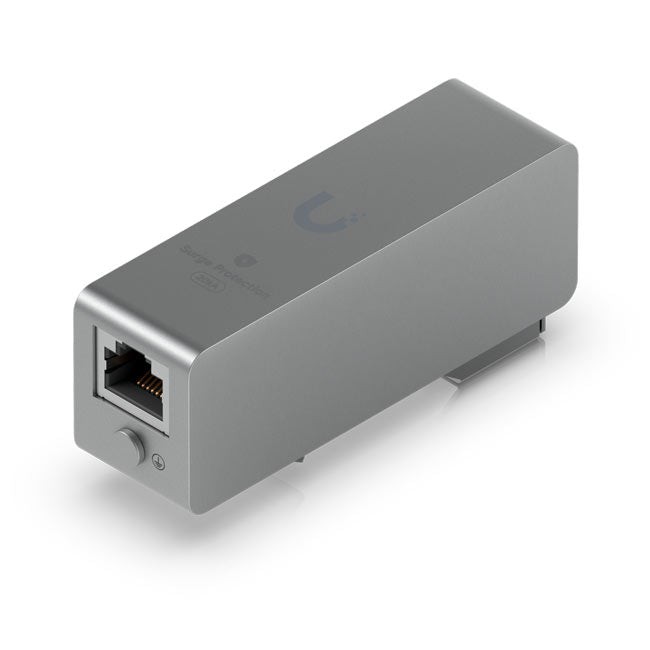

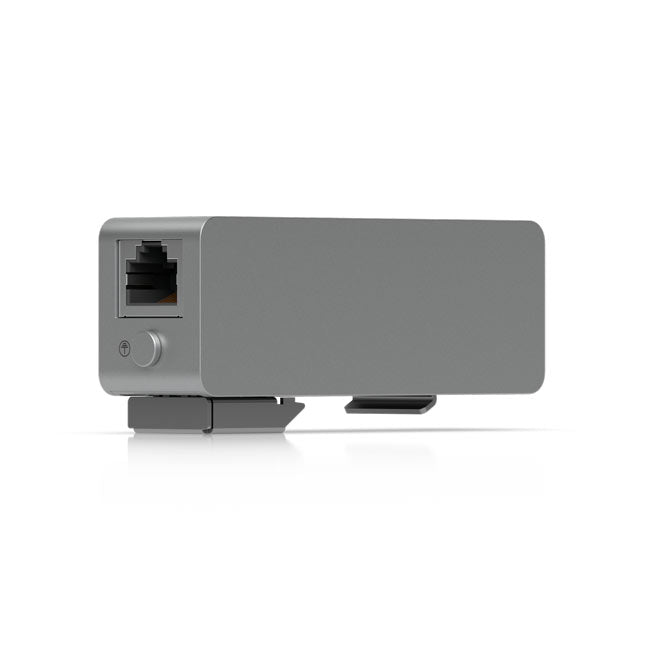

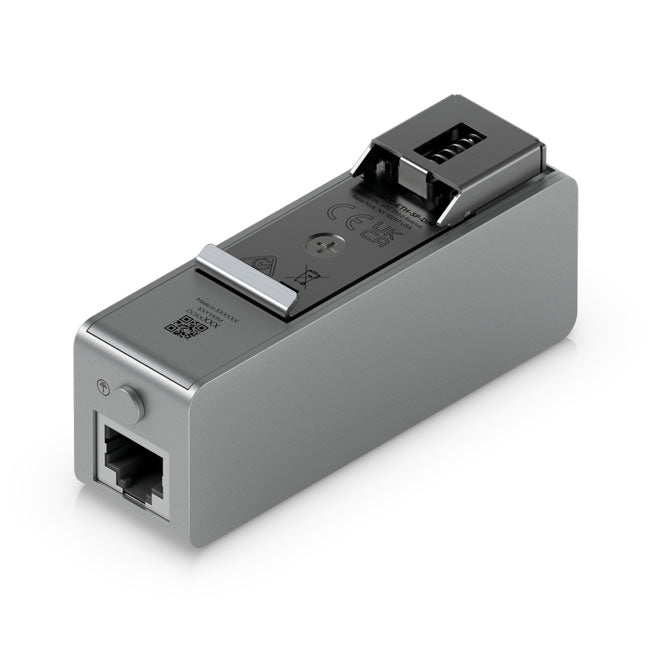

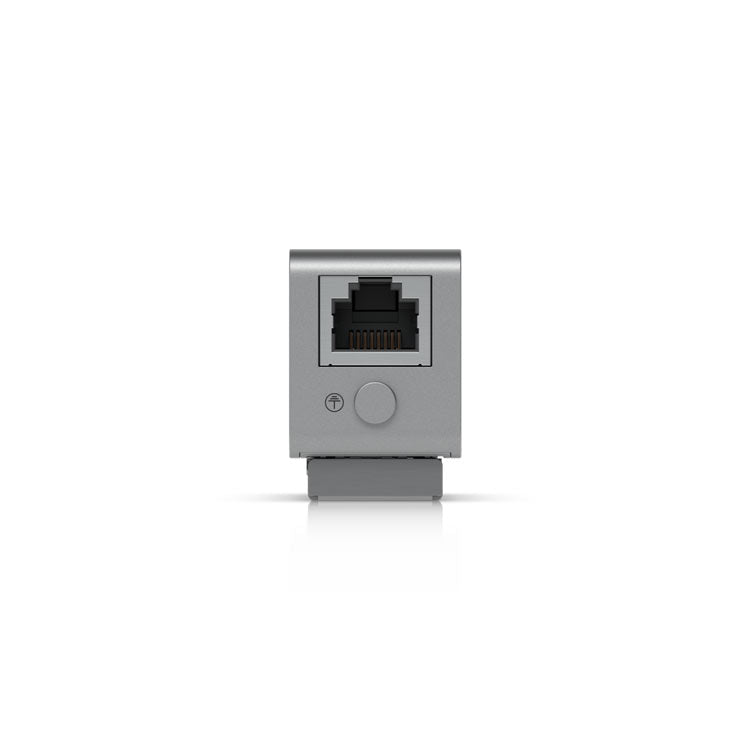

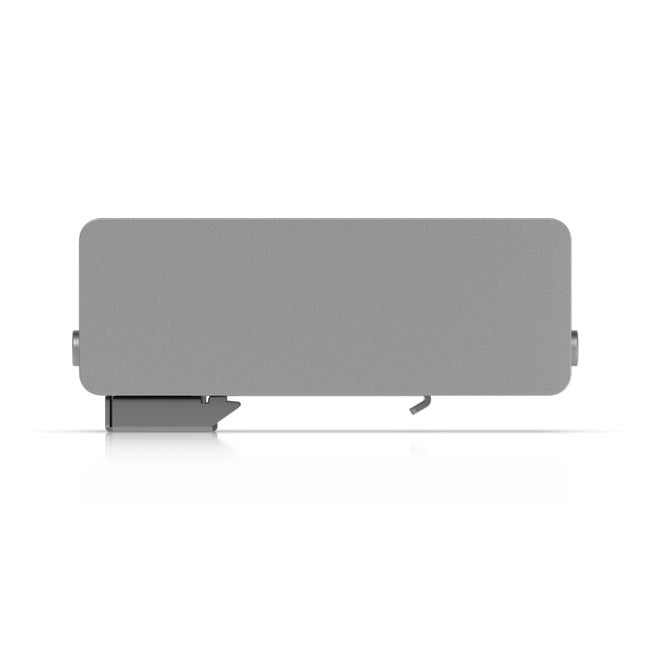

UACC-ETH-SP-DIN Ubiquiti Ethernet Surge Protection (Single Port)
$64.43 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
Brisbane (none in stock)Sydney (none in stock)MelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
Bidirectional protection for up to 10 GbE, PoE++, and 20kA surge discharge for indoor installation.
Wall/DIN rail mount
Multiple grounding points
Frequently asked questions5 questions
What is the UACC-ETH-SP-DIN used for?
It is a single-port Ethernet surge protector that gives bidirectional protection for data lines up to 10 GbE and PoE++, with a 20kA surge discharge rating. It is designed for indoor installation.
What speeds and PoE standards does it protect?
It protects data lines at up to 10 Gbps and is rated for PoE++. Maximum capacitance is 1.0 pF at 1 MHz.
How is it mounted and connected?
It can be mounted on a wall or a DIN rail, and it has multiple grounding points. Connection is through two RJ45 female connectors.
What are its dimensions and operating conditions?
It measures 89 x 25.5 x 37.4 mm and weighs 74 g, with a polycarbonate and SGCC steel enclosure. It operates in ambient temperatures from -40° to +80° C and 10 to 90% noncondensing humidity.
What are its surge protection ratings?
It has a 20kA discharge current, a DC spark-over voltage of 90V at 100V/s, and a maximum impulse spark-over voltage of 600V at 1kV/µs. It also protects against ESD and EMP transients.
Specifications13 specifications · 2 sections
| Mechanical | |
|---|---|
| Dimensions | 89 x 25.5 x 37.4 mm (3.5 x 1 x 1.5") |
| Weight | 74 g (2.6 oz) |
| Enclosure Material | Polycarbonate, SGCC steel |
| Hardware | |
| Networking Interface | (2) RJ45 female connectors |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Max. Impulse Spark-Over Voltage | 600V @ 1kV/µs |
| Discharge Current | 20kA |
| Insulation | Max. Resistance: 1G ohm @ 50V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | Up to 10 Gbps |
| ESD/EMP Protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs |
| Ambient Operating Temperature | -40° to +80° C (-40° to 176° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model UACC-ETH-SP-DIN · Ubiquiti's spec sheet
