ETH-SP-G2 Ubiquiti Ethernet Surge Protector
Description
Description
Introducing the next generation Ethernet Surge Protector, model ETH-SP-G2, from Ubiquiti. The ETH-SP-G2 is a cost-effective solution for protecting outdoor Ethernet devices from damaging electrostatic discharge and surges.
Since all Ubiquiti® airMAX® devices already have robust ESD protection built in, adding the ETH-SP-G2 to the installation provides an additional layer of protection to the network.
The ETH-SP-G2 is engineered to protect Power-over-Ethernet (PoE) or non-PoE devices with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.
Features:
Low-Cost Protection and Fast Installation
Protects Outdoor Ethernet Devices
Compatible with 10/100/1000 Mbps Networks
Specifications15 specifications · 2 sections
| Mechanical | |
|---|---|
| Dimensions | 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3") |
| Weight | 80 g (2.8 oz) |
| Enclosure Material | Polycarbonate |
| Weatherproofing | IPX5 |
| Hardware | |

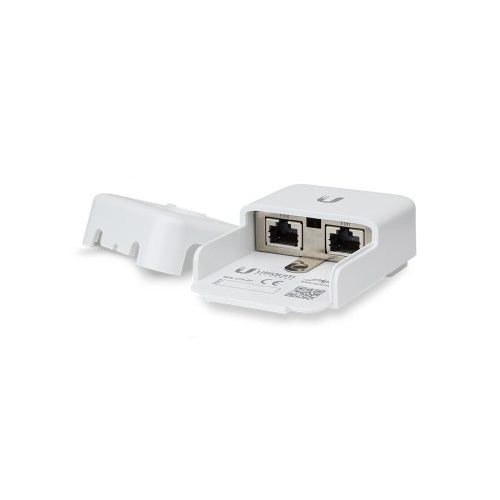

| Networking Interface | (2) RJ45 female connectors |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Max. Impulse Spark-Over Voltage | 700V @ 1kV/µs |
| Discharge Current | 10kA+ |
| Insulation | Max. Resistance: 1G ohm @ 50V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | Up to 2.5 Gbps |
| ESD Protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs |
| Ambient Operating Temperature | -30 to 65° C (-22 to 149° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Shock and Vibration Certification | ETSI300-019-1.4 Standard |
