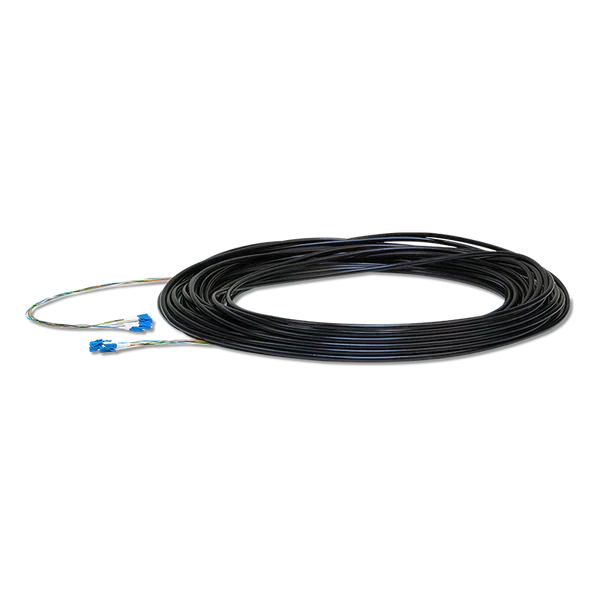

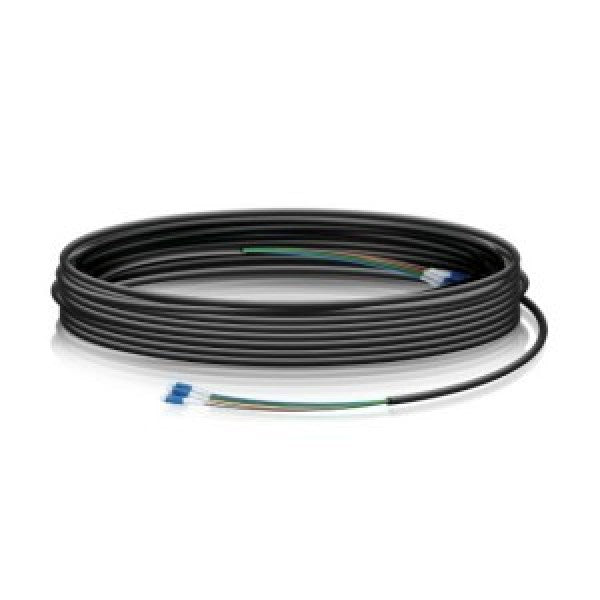

FC-SM Single Mode LC-LC Fiber Cable

Q: What is the insertion loss of this cable?

Insertion loss is 0.5 dB\/km or less at both 1310 nm and 1550 nm.

$117.37 AUD

Product Options

30m - 100ft 60m - 200ft 90m - 300ft

Product variants

13 in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane, Melbourne and Adelaide

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

Build your outdoor fiber network using our FiberCable. Lightweight and flexible.

FiberCable is ideal for tower deployments of our outdoor routing and switching products, such as EdgePoint.

Available in 100, 200, and 300 ft (30.48 / 60.96 / 91.44 m) lengths.

Features:

Outdoor-Rated Jacket with Ripcord
Integrated Weatherproof Tape
Kevlar Yarn for Added Tensile Strength
Outer Diameter of Cable: 6.0 ± 0.2 mm
Six-Strand Single-Mode (G.657.A2)
Outer Diameter of Fiber Strand: 0.25 mm Nominal
Insertion Loss
1310 nm: ≤0.5 dB/km
1550 nm: ≤0.5 dB/km

Frequently asked questions5 questions

What is the FC-SM cable designed for?

It is built for outdoor fibre networks and is well suited to tower deployments of outdoor routing and switching products such as EdgePoint. It is lightweight and flexible, with an outdoor-rated jacket.

What type of fibre does it use?

It is a six-strand single-mode cable (G.657.A2) terminated with LC-LC connectors. Each fibre strand has a nominal outer diameter of 0.25 mm.

What lengths does the FiberCable come in?

It is available in 100, 200 and 300 ft lengths, which is 30.48, 60.96 and 91.44 m. This SKU, FC-SM-100, is the 100 ft (30.48 m) length.

What is the insertion loss of this cable?

Insertion loss is 0.5 dB/km or less at both 1310 nm and 1550 nm.

How is the cable built to cope with outdoor use?

It has an outdoor-rated jacket with a ripcord, integrated weatherproof tape and Kevlar yarn for added tensile strength. The outer diameter of the cable is 6.0 ± 0.2 mm.

Click HERE to access the Datasheet

Specifications14 specifications · 1 sections

Overview
Available Lengths	30.5/61/91.5 m / (100/200/300 ft)
Pack Options	Single Unit
Connector	(12) Simplex LC UPC
Operating Environment	Outdoor
Weatherproofing	IP65
Cable · Fiber Mode	OS1
Cable · Jacket Diameter	6 mm (0.24")
Cable · Jacket Material	Thermoplastic polyurethane (TPU) with Kevlar strength member inside
Cable · Jacket Color	Black
Wavelength	1310/1550 nm
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 50 dB
Repeatability	≤ 0.5 dB
Ambient Operating Temperature	-40 to 80° C (-40 to 176° F)
