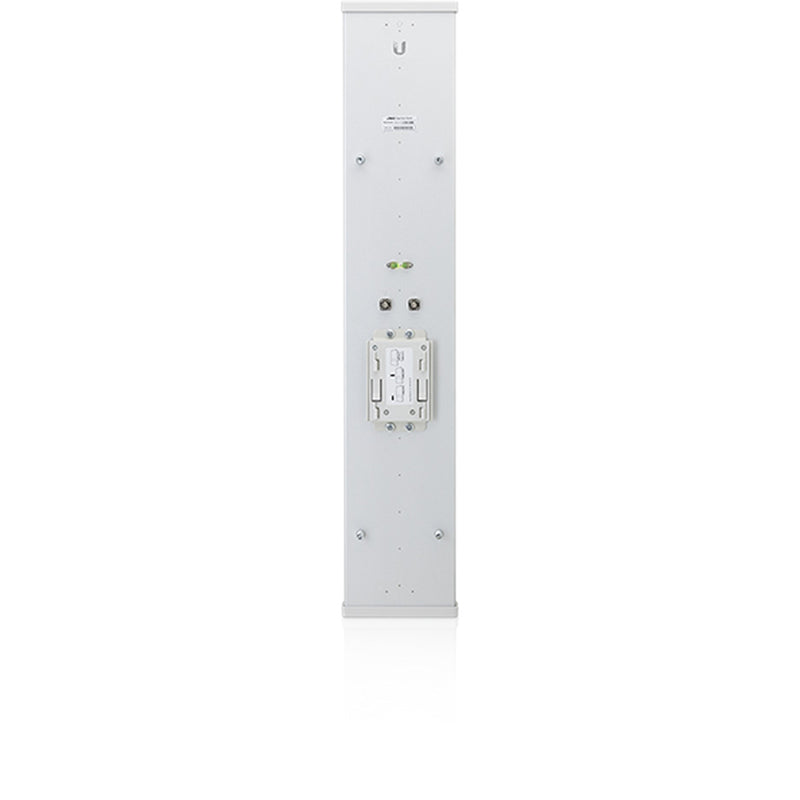

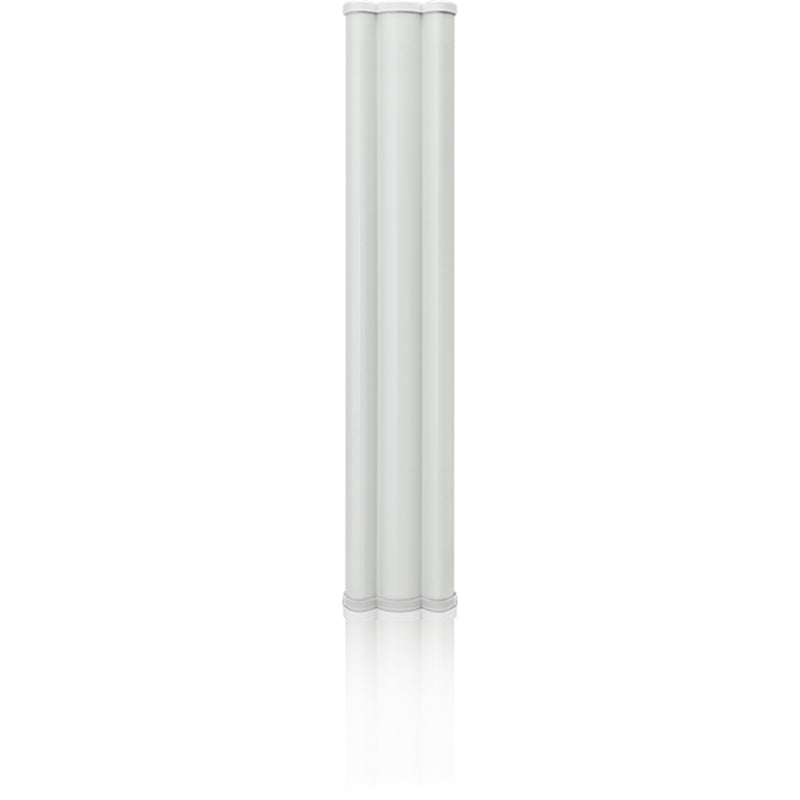

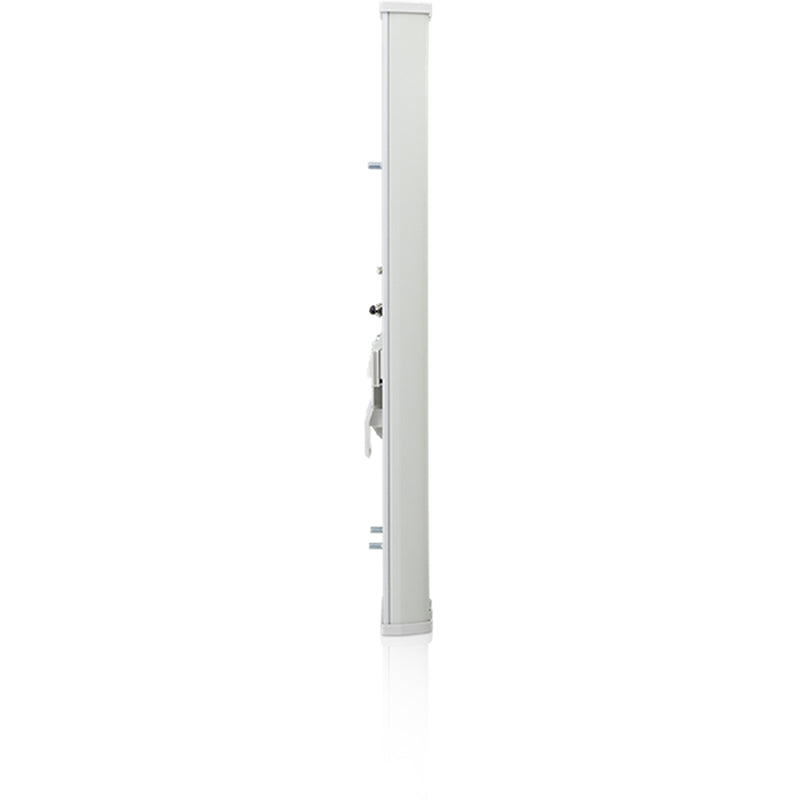

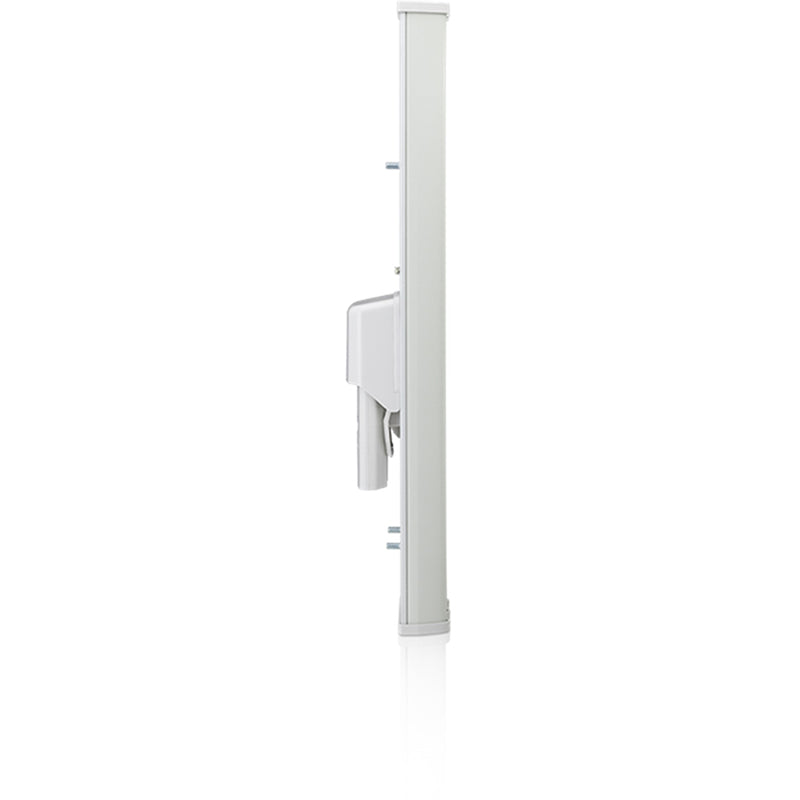

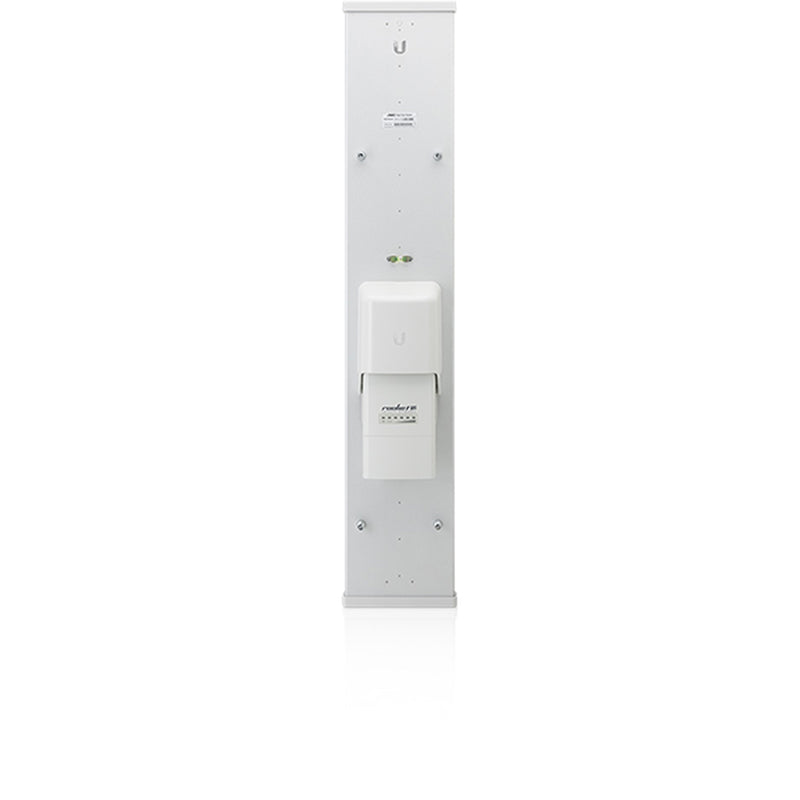

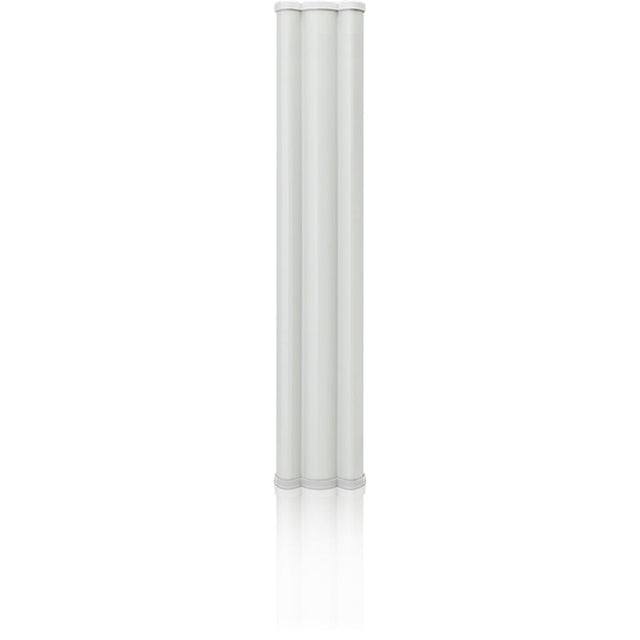

AM-5G19-120 Ubiquiti airMAX Sector 5GHz Antenna

$246.48 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

The airMAX Sector Antenna is a Carrier Class 2x2 Dual Polarity MIMO Sector Antenna that was designed to seamlessly integrate with RocketM radios (RocketM sold separately).

Pair the RocketM’s radio with the airMAX Sector Antenna’s reach to create a powerful basestation. This versatile combination gives network architects unparalleled flexibility and convenience.

Features:

5.15 - 5.85 GHz
18.6 - 19.1 dBi
Electrical Beamwidth: 4°
Electrical Downtilt: 2°
Dual-Linear Polarization
Universal Pole Mount (Included)
RocketM Bracket (Included)
Weatherproof RF Jumpers (Included)

Frequently asked questions5 questions

What is the AM-5G19-120 used for?

It is a carrier-class 2x2 dual-polarity MIMO sector antenna designed to integrate with RocketM radios. Paired with a RocketM radio, it forms a basestation for building out a wireless network.

What frequency range and gain does it cover?

It operates across 5.15 - 5.85 GHz with a gain of 18.6 - 19.1 dBi. This places it within the 5 GHz band used for airMAX deployments.

What are the beamwidth and downtilt specifications?

The electrical beamwidth is 4° and the electrical downtilt is 2°. It uses dual-linear polarization.

What mounting hardware and cabling is included?

A universal pole mount, a RocketM bracket and weatherproof RF jumpers are included. These cover mounting the antenna on a pole and connecting a RocketM radio to it.

Does it work with RocketM radios?

Yes, it is designed to integrate seamlessly with RocketM radios, and a RocketM bracket is included for attaching the radio. A RocketM radio is not part of the antenna itself.
