Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
LBE-5AC-LR
LBE-5AC-LR Ubiquiti airMAX LiteBeam Long-Range Station
$223.26 AUD
Unit price
/
Unavailable
In stock · Last fewShips from the warehouse closest to you
Brisbane (none in stock)SydneyMelbourne (none in stock)Adelaide (none in stock)Perth (none in stock)North Lakes (none in stock)
Pickup may be possible in Sydney
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
The LiteBeam 5AC Long Range is an affordable airMAX AC CPE designed for long-distance links. Reach new customers and still maintain your great ROI.
Features:
Improved Radio Design
Improved Mounting
Improved Surge Protection
Management WiFi Radio/UISP mobile app
AirOS 8
Frequently asked questions5 questions
What is the LiteBeam 5AC Long Range designed for?
It is an airMAX AC CPE built for long-distance links, with a 26 dBi antenna. It can operate in Access Point or Station mode.
How is the LiteBeam 5AC Long Range powered?
It uses passive PoE (2-pair) and accepts 20-27V DC. A 24V, 0.3A gigabit PoE adapter is included, and maximum power consumption is 7W.
What network port does it have?

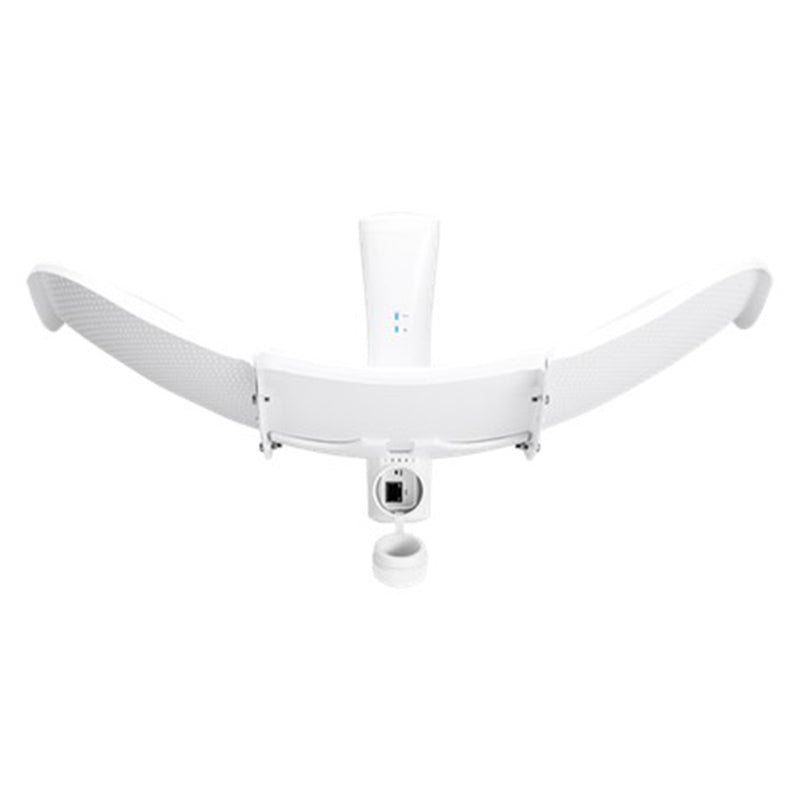

It has one GbE RJ45 port, which is also used to supply power over passive PoE.
Does it come with a mount, and how well does it handle harsh weather?
A pole mount is included. It has an operating temperature range of -40 to 70° C and a wind survivability rating of 200 km/h.
Which frequencies and channel widths does it support?
The radio covers 5150-5875 MHz worldwide. Channel widths are 10/20/30/40/50/60/80 MHz in PtP mode and 10/20/30/40 MHz in PtMP mode.
Specifications22 specifications · 6 sections
| Mechanical | |
|---|---|
| Dimensions | 512 x 385.8 x 258.3 mm / (20.2 x 15.2 x 10.2") |
| Weight | Without mount: 1.4 kg (3 lb) / With mount: 1.7 kg (3.8 lb) |
| Enclosure Materials | Aluminum, polycarbonate |
| Mounting | Pole Mount (Included) |
| Wind Loading | 550 N at 200 km/h (123.6 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.3A gigabit PoE adapter (Included) |
| Supported Voltage Range | 20-27V DC |
| Max. Power Consumption | 7W |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 09760-19-08356 |
| Software | |
| Operating Modes | Access Point / Station |
| QoS | WMM packet classification with user-level priority: High, Medium, Low |
| System | |
| Channel Bandwidth | PtP mode: 10/20/30/40/50/60/80 MHz / PtMP mode: 10/20/30/40 MHz |
| Antenna Gain | 26 dBi |
| Radio Frequency | |
| Supported Frequency Range · Worldwide | 5150-5875 MHz |
| Supported Frequency Range · US/CA | U-NII-1: 5150-5250 MHz / U-NII-2A: 5250-5350 MHz / U-NII-2C:5240-5725 MHz / U-NII-3: 5725-5850 MHz |
| Management Radio (MHz) | |
| Supported Frequency Range · Worldwide | 2412 - 2472 MHz |
| Supported Frequency Range · US/CA | 2412 - 2462 MHz |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model LBE-5AC-LR · Ubiquiti's spec sheet
