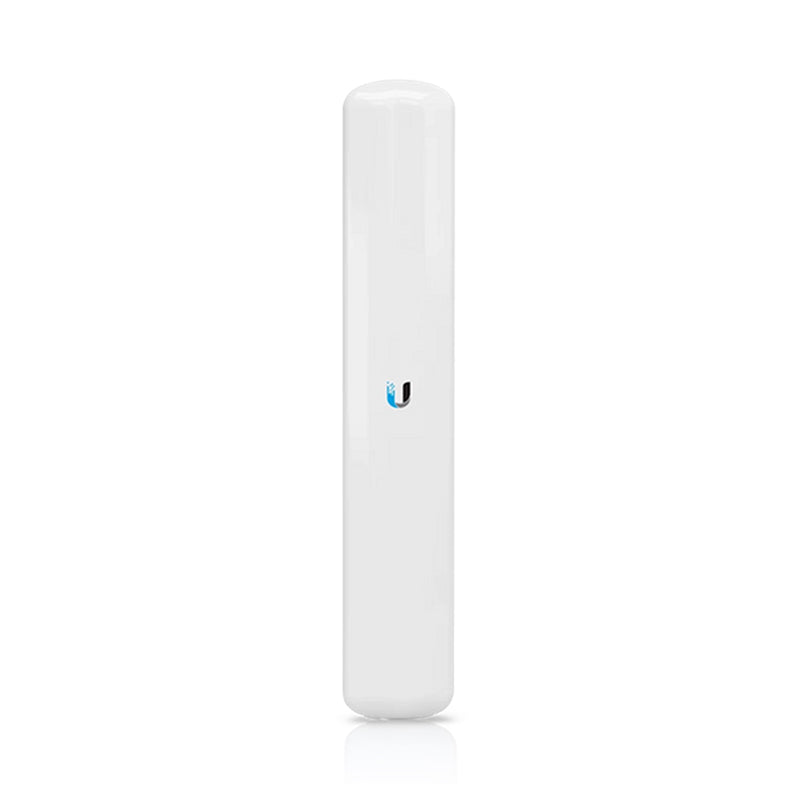

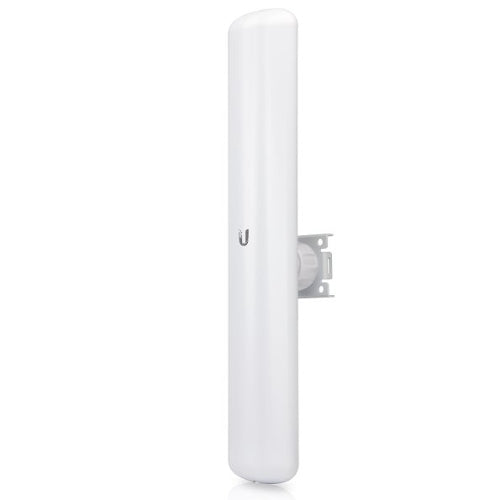

LAP-120 Ubiquiti airMAX LiteAP

$168.22 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

The LAP-120 is a 5 GHz, 16 dBi, 120° airMAX® AC AP featuring an ultra-lightweight form factor. It was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging.

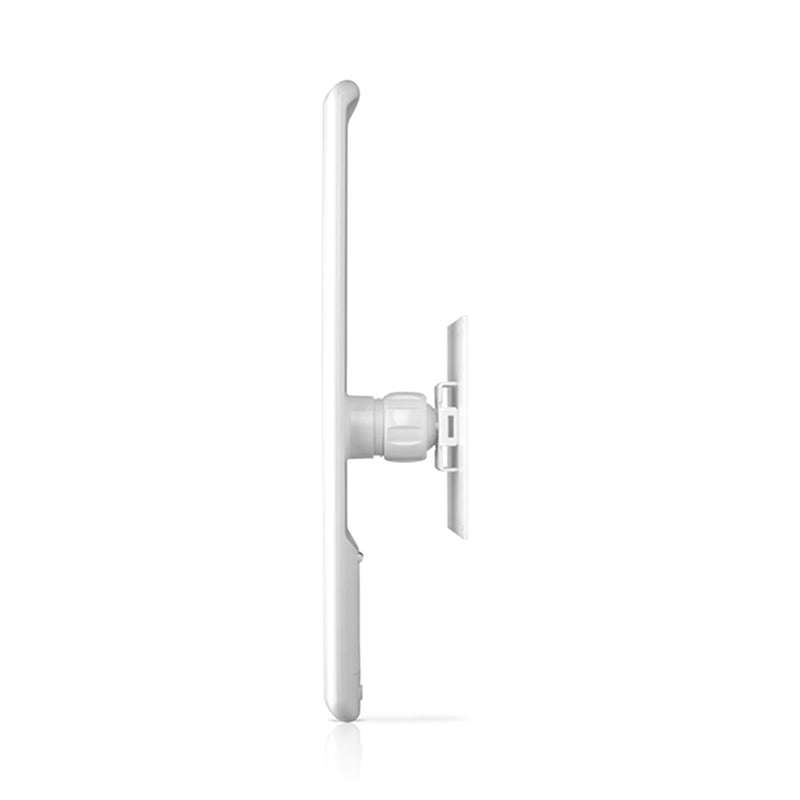

The ball-joint mount provides adjustment flexibility for versatile mounting options. Minimal fasteners simplify installation. No tools are needed; only a single wrench is required for pole-mounting.

Frequently asked questions5 questions

What is the LAP-120 designed for?

It is a 5 GHz, 16 dBi, 120° airMAX AC access point designed as an affordable cost/performance solution for long-distance wireless broadband bridging. It can operate in Access Point or Station mode.

How is the LAP-120 powered?

It uses passive PoE (2-pair) and includes a 24V, 0.5A gigabit PoE adapter. The supported voltage range is 20-27V DC, with a maximum power consumption of 8W.

What network port does the LAP-120 have?

It has a single GbE RJ45 port, which is used for both data and power over passive PoE.

How easy is the LAP-120 to mount?

It has a ball-joint mount for adjustment flexibility and uses minimal fasteners. No tools are needed for installation, and only a single wrench is required for pole-mounting.

Can the LAP-120 be used outdoors in harsh conditions?

It operates in ambient temperatures from -40 to 70° C and 5 to 95% noncondensing humidity. It is rated for wind survivability of 200 km/h and is certified to ETSI300-019-1.4 for shock and vibration.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications18 specifications · 5 sections

Mechanical
Dimensions	452.3 x 78.7 x 54.4 mm / (17.8 x 3.1 x 2.14")
Weight	420 g (14.82 oz)
Wind Loading	77 N at 200 km/h (17.3 lbf at 125 mph)
Wind Survivability	200 km/h (125 mph)
Hardware
Networking Interface	(1) GbE RJ45 port
Power Method	Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply	24V, 0.5A gigabit PoE adapter (Included)
Supported Voltage Range	20—27V DC
Max. Power Consumption	8W
Ambient Operating Temperature	-40 to 70° C (-40 to 158° F)
Ambient Operating Humidity	5 to 95% noncondensing
Shock and Vibration Certification	ETSI300-019-1.4
Certifications	CE, FCC, IC
Software
Operating Modes	Access Point / Station
QoS	WMM packet classification with user-level priority: High, Medium, Low
System
Antenna Gain	16 dBi
Radio Frequency
Supported Frequency Range · Worldwide	5150 - 5875 MHz
Supported Frequency Range · US/CA	U-NII-1: 5150 – 5250 MHz / U-NII-2A: 5250 – 5350 MHz / U-NII-2C: 5470 – 5725 MHz / U-NII-3: 5725 – 5850 MHz
