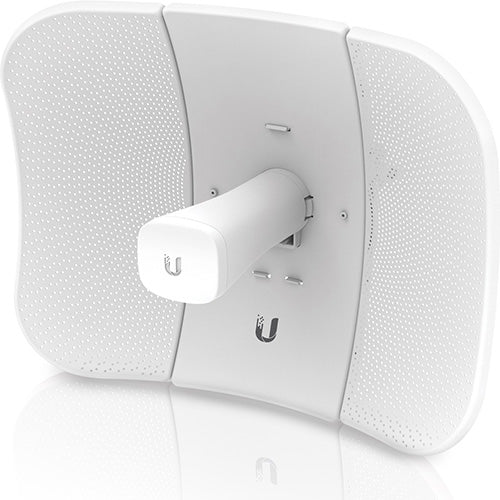

LBE-5AC-GEN2 Ubiquiti airMAX LiteBeam Bridge

$124.89 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Description

The LiteBeam AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.

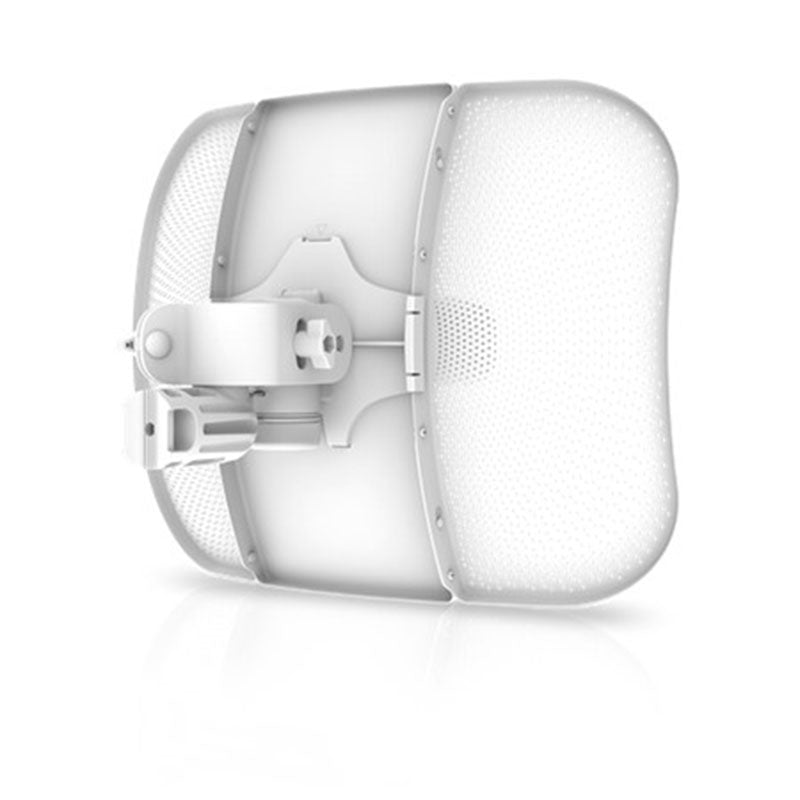

Featuring the freedom of three-axis alignment, the LiteBeamM fully assembles in seconds no tools needed. Only a single wrench is required for pole-mounting.

A lightweight form factor contained within ultra-compact packaging, the LiteBeam AC is ideal for shipping and logistics.

AirOS 8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Features:

Improved Radio Design
Improved Mounting
Improved Surge Protection
Management WiFi Radio/UISP mobile app
AirOS 8 and airView

Frequently asked questions5 questions

What is the LiteBeam AC Gen2 designed for?

It is a directional airMAX bridge with 23 dBi of antenna gain, built for long-distance wireless links. The directional pattern improves noise immunity, and it can operate as either an Access Point or a Station.

How is the LiteBeam AC Gen2 powered?

It uses passive PoE (2-pair) and a 24V, 0.3A gigabit PoE adapter is included. It accepts 22–27V DC and draws a maximum of 7W.

What network port and throughput does it offer?

It has one GbE RJ45 port. Total throughput is 450+ Mbps.

Which frequency bands does it use?

The main radio covers 5150–5875 MHz worldwide. A separate management WiFi radio operates at 2412–2472 MHz, and the unit can be managed via the UISP mobile app or AirOS 8.

Can it be used outdoors, and how is it mounted?

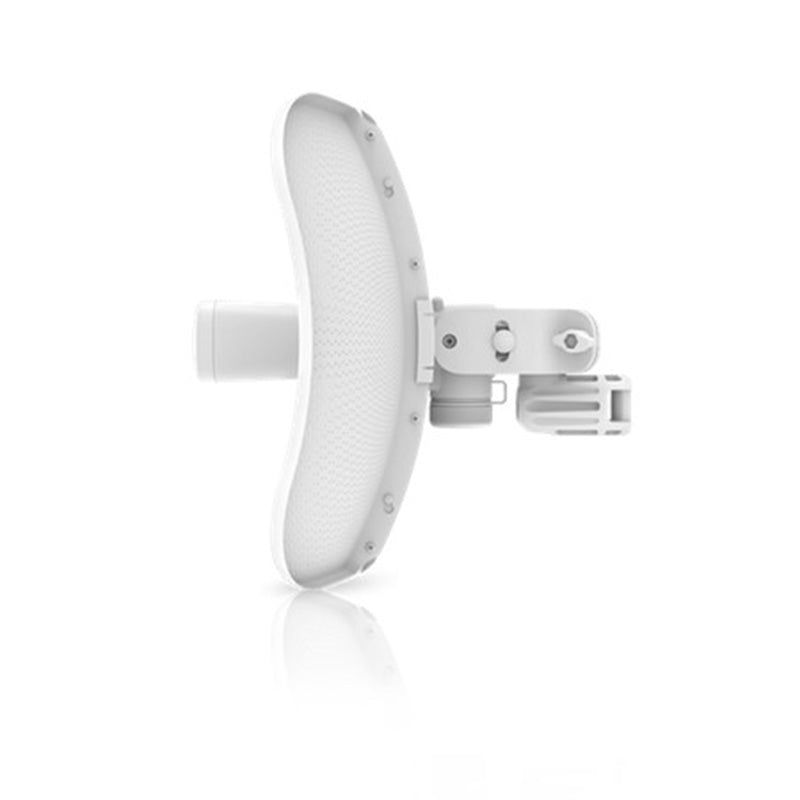

It operates in ambient temperatures from -40 to 70° C and has a wind survivability rating of 200 km/h. It assembles without tools and only a single wrench is needed for pole-mounting.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications20 specifications · 6 sections

Mechanical
Dimensions	358 x 271.95 x 272.5 mm / (14.1 x 10.7 x 10.7")
Weight	Without mount: 800 g (1.8 lb) / With mount 980 g (2.2 lb)
Wind Loading	275 N at 200 km/h (61.8 lbf at 125 mph)
Wind Survivability	200 km/h (125 mph)
Hardware
Networking Interface	(1) GbE RJ45 port
Power Method	Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply	24V, 0.3A gigabit PoE adapter (Included)
Supported Voltage Range	22–27V DC
Max. Power Consumption	7W
Max. Power Output	25 dBm
Ambient Operating Temperature	-40 to 70° C (-40 to 158° F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC, Anatel: 06359-19-08356
Software
Operating Modes	Access Point / Station
QoS	WMM packet classification with user-level priority: High, Medium, Low
System
Total Throughput	450+ Mbps
Antenna Gain	23 dBi
Radio Frequency
Supported Frequency Range · Worldwide	5150 - 5875 MHz
Supported Frequency Range · US/CA	U-NII-1: 5150-5250 MHz / U-NII-2A: 5250-5350 MHz / U-NII-2C: 5470-5725 MHz / U-NII-3: 5725-5850 MHz
Management Radio (MHz)
Supported Frequency Range · Worldwide	2412 - 2472 MHz
