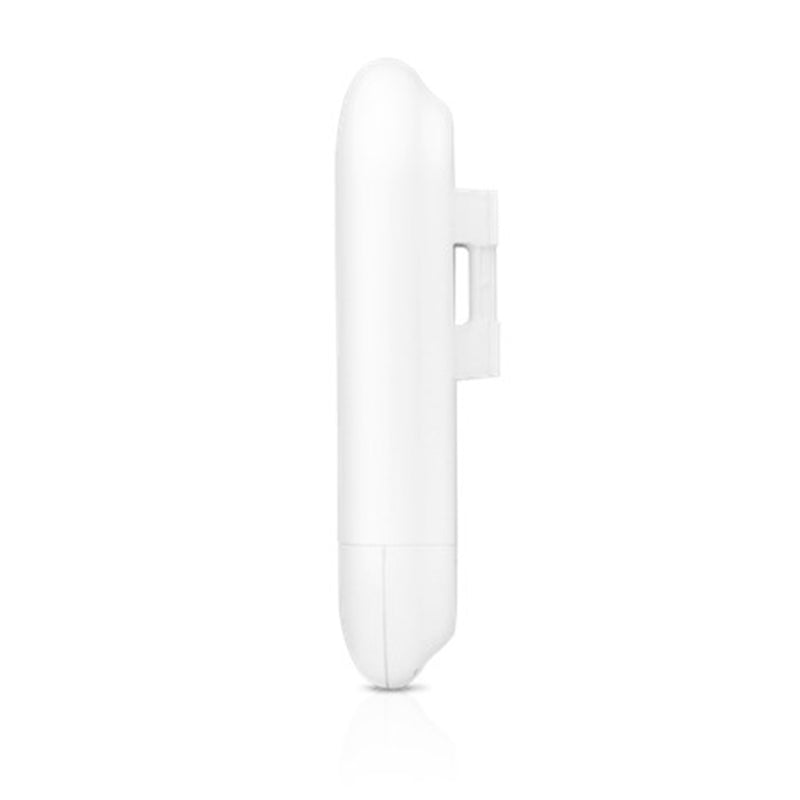

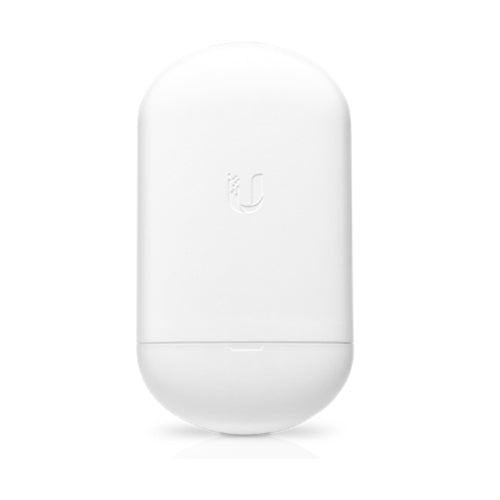

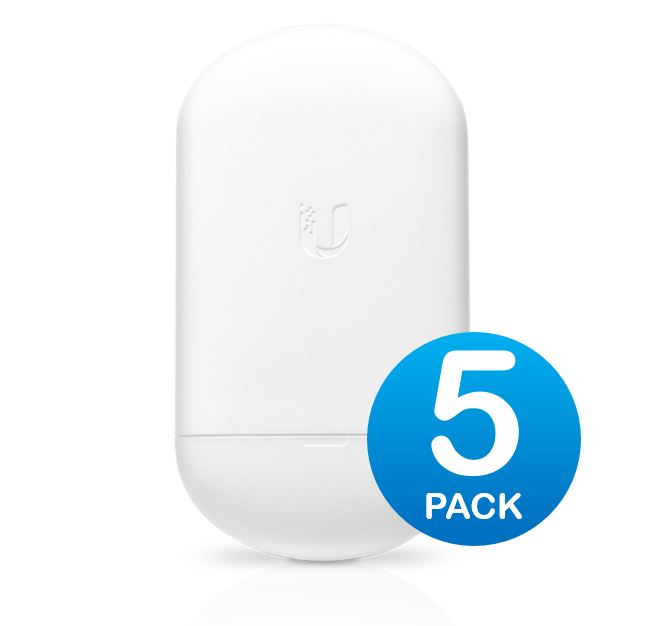

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
LOCO5AC
Loco5AC Ubiquiti airMAX NanoStation
$94.99 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Not in stock locally
In stock inNew ZealandUnited Kingdom
Contact us for options
We do not hold this locally right now, but it is in stock in New Zealand and the UK. Contact us and we will tell you what is possible.
Description
Description
[NanoStation Loco 5AC - Previously Known as the NS-5ACL]
Classic Nano Station design with updated proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UISP Mobile app support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).
The NanoStation Loco AC M5 is known for its much smaller size than the other NanoStation, which makes it ideal for residential or small building use. It has a good throughput of around 150 mbps, sufficient to cover multitudes of devices and users simultaneously. It has a great reach at 13dBi through its integrated antenna. It operates at a frequency of GHz, which is ideal if you want to maximize throughput. This signal is seldom interrupted by noise or clutter as most devices and appliances work on 2.4GHz frequency.
The unit also makes use of the AirMax technology and its TDMA protocol. It lets you compartmentalize time schedules so you’ll be able to enjoy a smoother transmission and receipt of wireless connection. Moreover, you are also able to reduce latency, even if there are already a lot of devices that are connected into the network. It works very well along with quality of service so you can prioritize the allocation of the available bandwidth.
The NanoStation Loco AC M5 is also compatible with a PoE (power over Ethernet setup) so you can deal with fewer wires. Moreover, you can now reset its power directly from the main source than on the equipment itself, saving you the hassle.
Features:
New Antenna
Improved Design
Management WiFi Radio/U-Mobile App
AirOS v8.1 New UI
Frequently asked questions5 questions
What is the Loco5AC NanoStation designed for?
It suits a simple point-to-point (PtP) bridge or use as a point-to-multipoint (PtMP) station (CPE). Its compact size makes it a good fit for residential or small building use.
How is the Loco5AC powered?
It uses passive PoE (2-pair, pins 4, 5+ and 7, 8 return) and accepts 22–27V DC, with a maximum power consumption of 7W. A 24V, 0.3A gigabit PoE supply is required but not included.
What network port does it have?

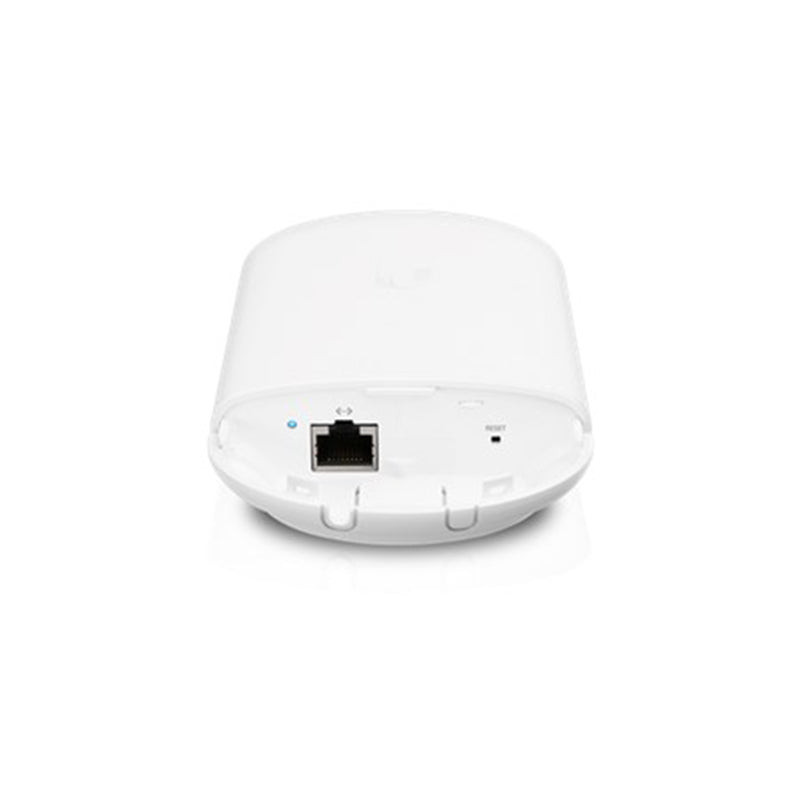

It has a single gigabit Ethernet (GbE) RJ45 port, which carries both data and PoE power.
What frequency band and antenna does the Loco5AC use?
It operates in the 5 GHz band (5150–5875 MHz worldwide) with an integrated 13 dBi dual-linear polarised antenna. Beamwidth is 45° in horizontal, vertical and elevation.
Does it include a mount, and can it be used outdoors?
A pole mount is included. The UV-stabilised polycarbonate enclosure is rated for ambient temperatures from -40 to 70°C and humidity of 5 to 95% noncondensing.
Customer reviews
5.0
· 2 reviews
★★★★★Collected by reviews.io · Dec 2023
DavidSpecifications24 specifications · 6 sections
| Mechanical | |
|---|---|
| Dimensions | 179 x 77.5 x 59.1 mm / (7.1 x 3.1 x 2.3") |
| Weight | 180 g (6.4 oz) |
| Enclosure Materials | UV-stabilized polycarbonate |
| Mounting | Pole Mount (Included) |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.3A gigabit PoE supply (Not Included) |
| Supported Voltage Range | 22–27V DC |
| Max. Power Consumption | 7W |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 01405-19-08356 |
| Software | |
| Operating Modes | Access Point / Station |
| QoS | WMM packet classification with user-level priority: High, Medium, Low |
| System | |
| Channel Bandwidth | 10/20/30/40/50/60/80 MHz |
| Antenna Gain | 13 dBi |
| Max. VSWR | 1.8:1 |
| Polarization | Dual-Linear |
| Antenna beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Cross-Pol Isolation | Min. 20 dB |
| Radio Frequency | |
| Supported Frequency Range · Worldwide | 5150 - 5875 MHz |
| Supported Frequency Range · US/CA | U-NII-1: 5150-5250 MHz / U-NII-2A: 5250-5350 MHz / U-NII-2C:5240-5725 MHz / U-NII-3: 5725-5850 MHz |
| Management Radio (MHz) | |
| Supported Frequency Range · Worldwide | 2412 - 2472 MHz |
| Supported Frequency Range · US/CA | 2412 - 2462 MHz |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model LOCO5AC-5 · Ubiquiti's spec sheet
