NBE-5AC-GEN2 NanoBeam 5AC Gen2

$180.42 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

This High-Performance airMAX Bridge incorporates innovative industrial design with proprietary airMAX AC technology. The NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.

The updated version has all the benefits of the old NBE-5AC-19, and the sleek NanoBeam design with proprietary airMAX ac chipset and dedicated management Wi-Fi provides easy UISP® mobile app support and fast setup with enhanced surge protection.

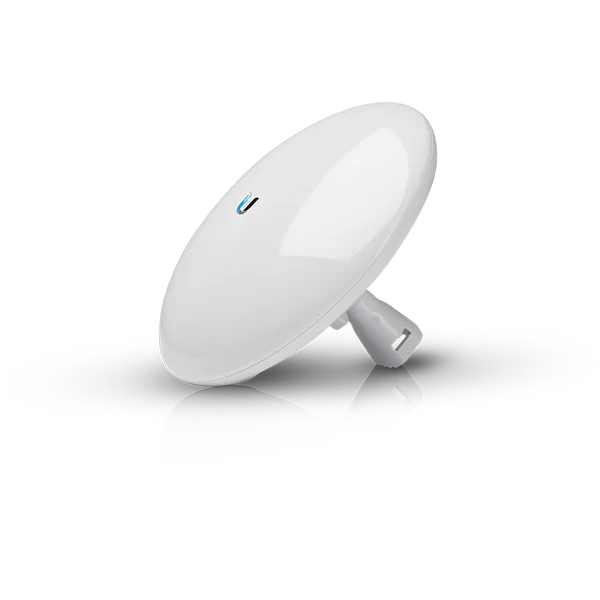

This airMAX ac CPE pivots on a ball joint for mounting and alignment flexibility.

Features:

Frequency 5 Ghz
Throughput 450+ Mbps
Range 15+ km
Improved Wide band width Antenna
Dedicated Wi-Fi Radio for Management
airMAX ac Processor for Superior Performance
Improved surge protection
PoE Included

Frequently asked questions5 questions

What is the NanoBeam 5AC Gen2 used for?

It is a 5 GHz airMAX ac bridge designed for CPE deployments that need strong performance from a compact footprint. It operates as either an Access Point or a Station.

What speed and range does it offer?

It delivers 450+ Mbps throughput and a range of 15+ km. It has a 19 dBi antenna and supports channel bandwidths from 10 to 80 MHz in PtP mode.

How is the NanoBeam 5AC Gen2 powered, and is a PoE adapter included?

It uses passive PoE 2-pair and accepts 20-27V DC. A 24V, 0.5A gigabit PoE adapter is included. Maximum power consumption is 8.5W.

How do I set it up and mount it?

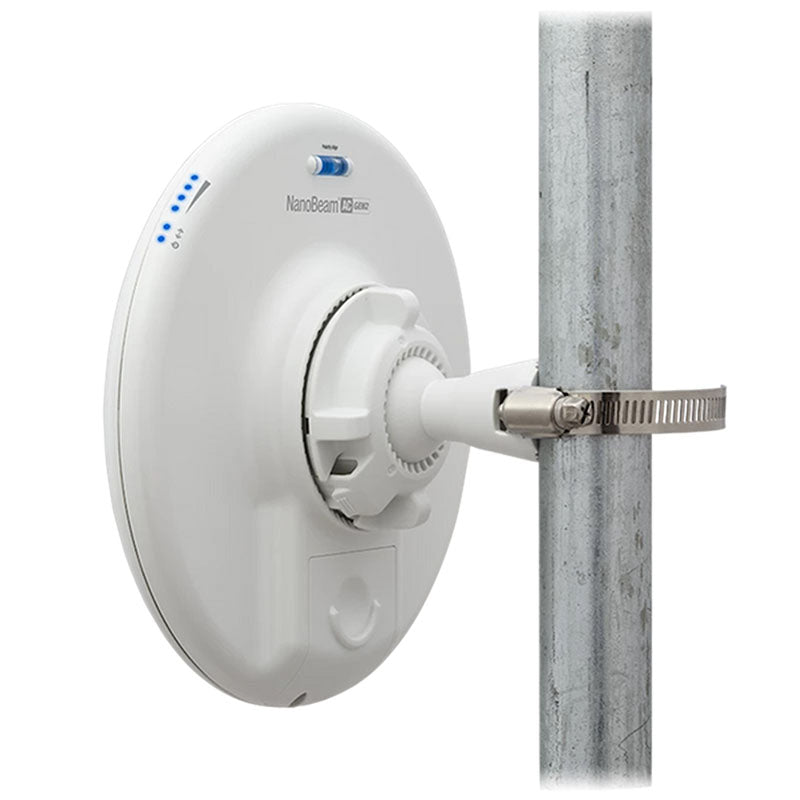

A dedicated management Wi-Fi radio supports the UISP mobile app for fast setup. A pole mount is included, a wall mount is optional, and the ball joint allows flexible alignment.

Is it suitable for outdoor use?

Yes. It has a UV-stabilised polycarbonate enclosure, operates from -40 to 80° C, and survives winds up to 200 km/h. It has also passed salt fog, UV and wind-driven rain tests.

Customer reviews

5.0 · 1 review

Write a review

5 ★ 14 ★ 03 ★ 02 ★ 01 ★ 0

★★★★★Collected by reviews.io · Mar 2025

Onced programed up units worked first up .
No issues

Garry

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications28 specifications · 7 sections

Mechanical
Dimensions	189 x 189 x 125 mm / (7.44 x 7.44 x 4.92")
Weight	530 g (1.17 lb)
Enclosure Materials	UV-stabilized polycarbonate
Mounting	Pole Mount (Included) / Wall Mount (Optional)
Wind Loading	45.4 N at 200 km/h (10.2 lbf at 125 mph)
Wind Survivability	200 km/h (125 mph)
Hardware

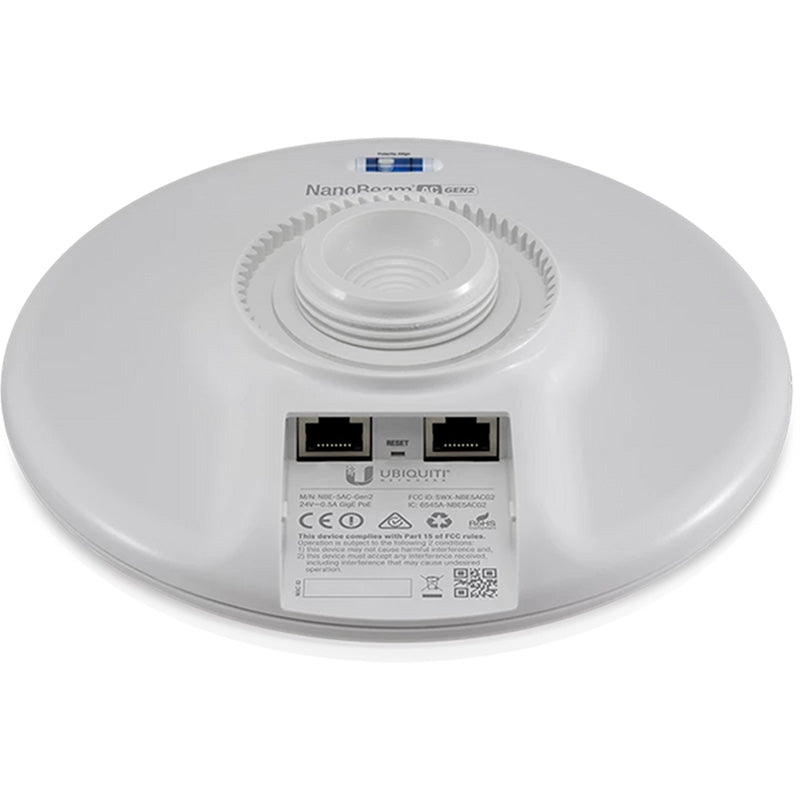

Networking Interface	(2) GbE RJ45 ports
Power Method	Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply	24V, 0.5A gigabit PoE adapter (Included)
Supported Voltage Range	20–27V DC
Max. Power Consumption	8.5W
Ambient Operating Temperature	-40 to 80° C (-40 to 176 F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Qualifications
Salt Fog Test	IEC 68-2-11 (ASTM B117) / Equivalent: MIL-STD-810 G method 509.5
Temperature shock test	IEC 68-2-14
UV test	IEC 68-2-5 at 40° C (104° F) / Equivalent: ETS 300 019-1-4
Vibration test	IEC 68-2-6
Wind-Driven Rain Test	ETS 300 019-1-4 / Equivalent: MIL-STD-810 G method 506.5
Software
Operating Modes	Access Point / Station
QoS	WMM packet classification with user-level priority: High, Medium, Low
System
Channel Bandwidth	PtP Mode: 10/20/30/40/50/60/80 MHz / PtPM Mode:10/20/30/40 MHz
Antenna Gain	19 dBi
Max. VSWR	1.5:1
Polarization	Dual-Linear
Radio Frequency
Supported Frequency Range · Worldwide	5150 - 5875 MHz
Supported Frequency Range · US/CA	U-NII-1: 5150-5250 MHz / U-NII-2A: 5250-5350 MHz / U-NII-2C: 5470-5725 MHz / U-NII-3: 5725-5850 MHz
Management Radio (MHz)
Supported Frequency Range · Worldwide	2412 - 2472 MHz
