Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
NSM5

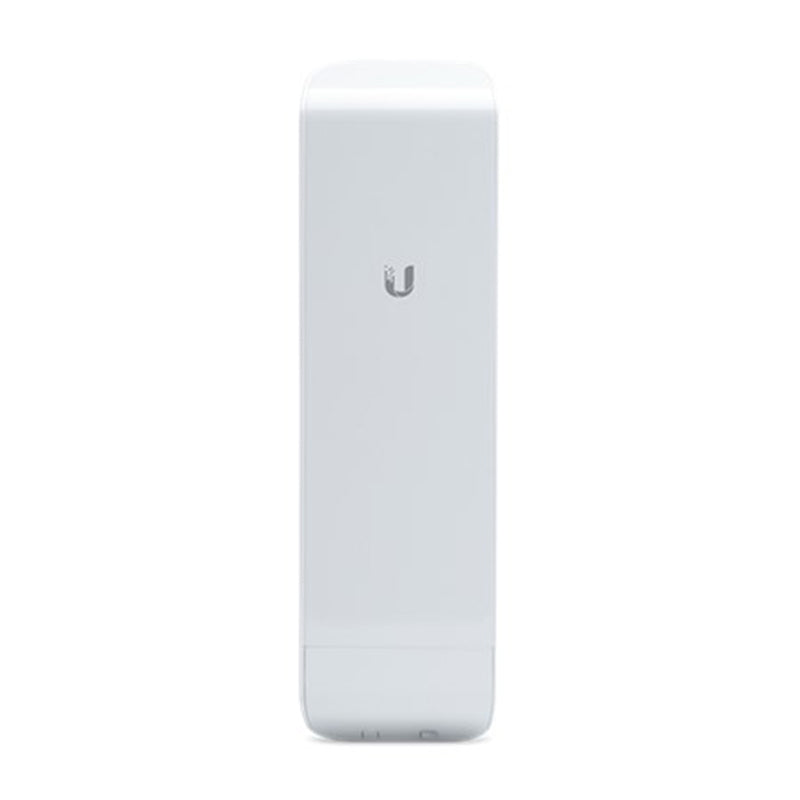

NSM5 Ubiquiti airMAX NanostationM 5GHz Station
$161.98 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
The NanoStation M5 proves that efficiency can still be equated to affordability. Even if it's low cost, its performance is luxurious. It has a maximum transmission speed of about 300 mbps, allowing it to serve multiple devices at one time. It follows the TDMA (Time Division Multiple Access) protocol, which permits users to effectively schedule time slots in order to maximize the transmission and lower the latency period.
It works at a frequency of 5.5GHz, a channel that is not prone to noise and interference. The integrated antenna connects via the 2x2 MIMO technology with a reach of 16dBi, so it's ideal for complexes or buildings made up of different floors. Paired with QoS, you can easily prioritize bandwidth allocation.
It runs on an Atheros 24KC MIPS chipset with a clock speed of 400 MHz. It has a 32MB RAM and 8MB NAND Flash.
The NanoStation M5 is equipped with the intelligent PoE. This means you can reset it through its power supply, not directly in the unit. This is accomplished via the dual Ethernet port, one of which is dedicated for PoE use. In the process, you're able to make the most of your electric power and save yourself the hassle of dealing a lot of wires. You can also add an IP camera, which permits you to keep track of your property, among others, through a web-based access.
The NanoStation M5 can be used as an access point, connecting to hundreds of devices all at the same time, or as a client, which can be connected to other networks through a bridge. The level of flexibility makes this a fantastic and convenient addition to your networking system.

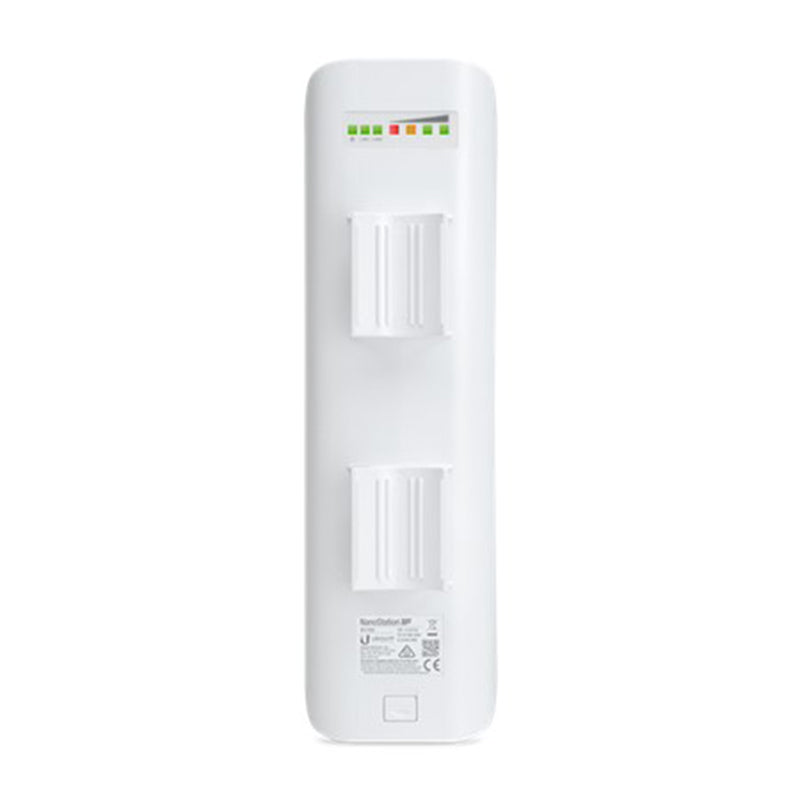

The NanoStation M5 is easy to monitor through its strength indicators following the integration of 2 pairs of LEDs.
The NanoStation®M features the CPE design that expanded the global Wireless ISP industry.
Features:
5 GHz
Antenna Gain: 16 dBi
24V, 0.5A PoE
Atheros MIPS 24KC, 400 MHz
(2) 10/100 Ethernet Ports
Frequently asked questions5 questions
What is the NanoStation M5 used for?
It operates in the 5GHz band and can be used as an access point serving multiple devices, or as a client that connects to other networks through a bridge. It uses TDMA to schedule time slots and reduce latency.
How is the NanoStation M5 powered?
It uses passive 2-pair PoE and runs on 22–27V DC, with a 24V, 0.5A PoE adapter included. Maximum power consumption is 8W.
What ports does the NanoStation M5 have?

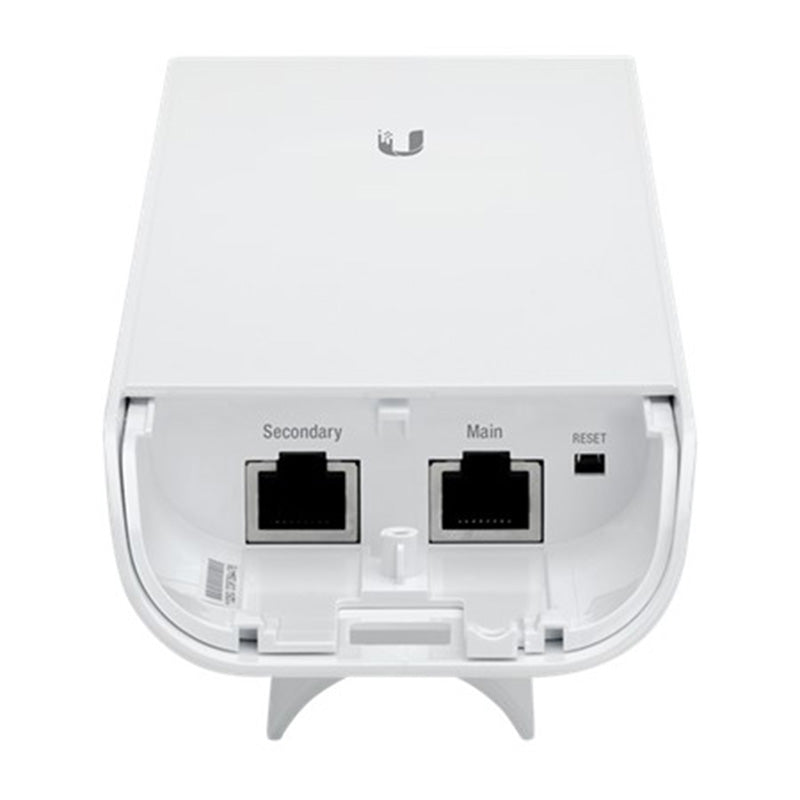

It has two 10/100 Ethernet RJ45 ports, one of which is dedicated to PoE. This also allows the unit to be reset through its power supply and an IP camera to be added.
What are the antenna details of the NanoStation M5?
It has an integrated 2x2 MIMO antenna with 14.6–16.1 dBi gain and dual-linear polarisation. Beamwidth is 43° horizontal, 41° vertical and 15° in elevation.
Is the NanoStation M5 suitable for outdoor use?
Yes, it has a UV-stabilised polycarbonate enclosure and operates in ambient temperatures from -30 to 75°C. A pole mount is included.
Customer reviews
5.0
· 1 review
Click HERE to access the Datasheet
Specifications17 specifications · 3 sections
| Mechanical | |
|---|---|
| Dimensions | 294 x 31 x 80 mm / (11.6 x 1.3 x 3.2") |
| Weight | 400 g (14.1 oz) |
| Enclosure Materials | Outdoor UV-stabilized polycarbonate |

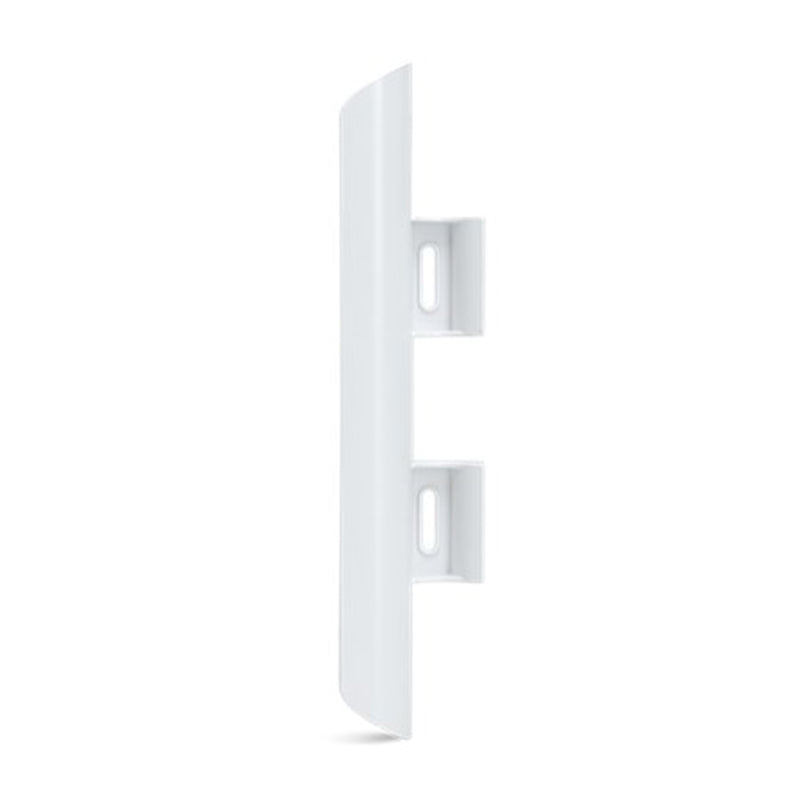

| Mounting | Pole Mount (Included) |
| Hardware | |
| Networking Interface | (2) 10/100 MbE RJ45 ports |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A PoE adapter (Included) |
| Supported Voltage Range | 22–27V DC |
| Max. Power Consumption | 8W |
| Ambient Operating Temperature | -30 to 75° C (-22 to 167° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Shock and Vibration Certification | ETSI300-019-1.4 |
| Certifications | FCC, ICC, CE, RoHS |
| System | |
| Antenna Gain | 14.6-16.1 dBi |
| Max. VSWR | 1.6:1 |
| Polarization | Dual-Linear |
| Antenna beamwidth | 43° (H-pol) / 41° (V-pol) / 15° (Elevation) |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model NSM5 · Ubiquiti's spec sheet
