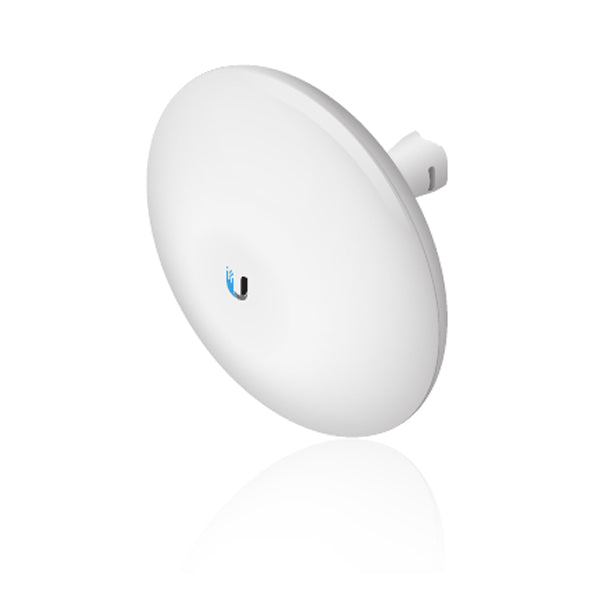

NBE-2AC-13 Ubiquiti airMAX NanoBeam AC 2.4GHz Station

$176.06 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

The NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

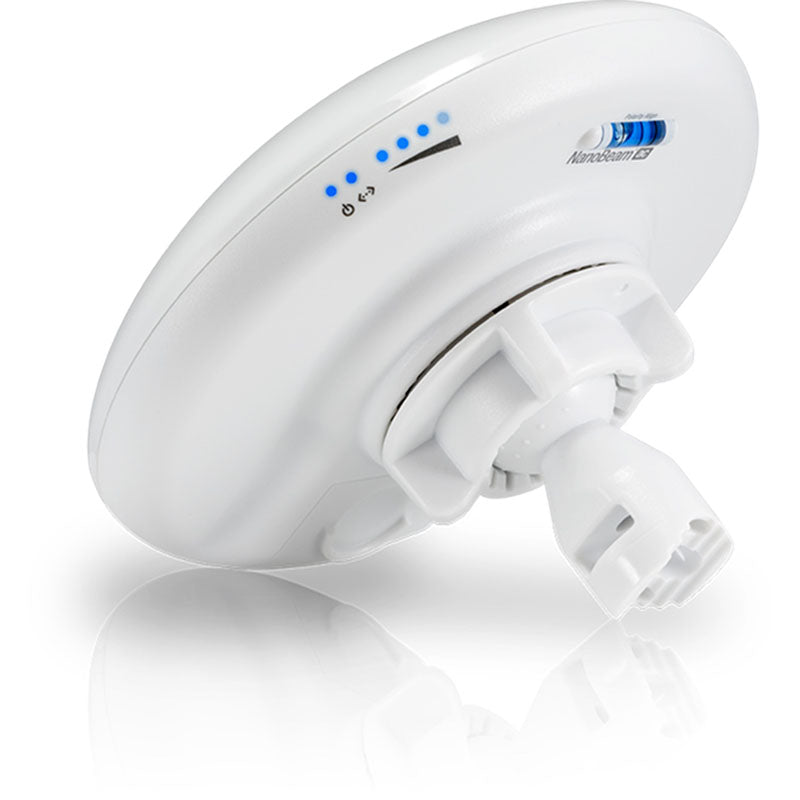

The mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt.

The number of fasteners was reduced to simplify assembly. Tools are required only when the technician mounts the NanoBeam on the pole. The antenna feed can be detached with the push of a button.

Fasteners GEOMET®-coated for improved corrosion resistance when compared with zinc-plated fasteners.

Features:

New antenna
Improved design
Management WiFi Radio/UISP mobile app

Frequently asked questions5 questions

What is the NBE-2AC-13 designed for?

It is a 2.4GHz airMAX NanoBeam AC station with a 13 dBi antenna that focuses RF energy in a tighter beamwidth. This spatially filters out noise, which helps in areas crowded with other signals on the same or similar frequency.

How is the NBE-2AC-13 powered?

It uses passive PoE (2-pair) and accepts 20-27V DC. A 24V, 0.5A gigabit PoE adapter is included, and maximum power consumption is 7.5W.

What throughput and channel widths does it support?

Total throughput is 150+ Mbps. Supported channel bandwidths are 10, 20 and 40 MHz.

What mounting options come with it?

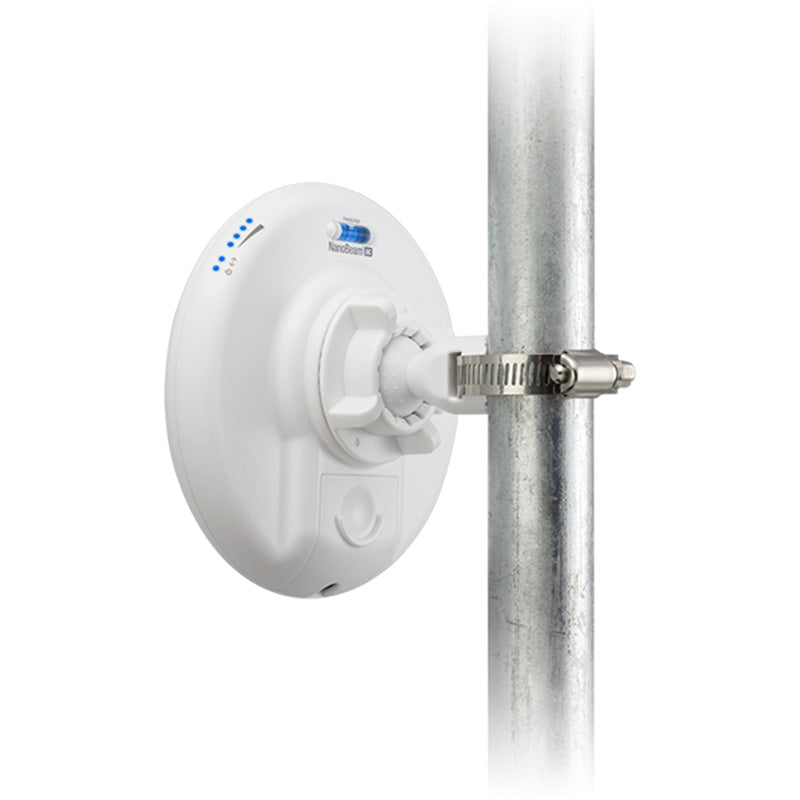

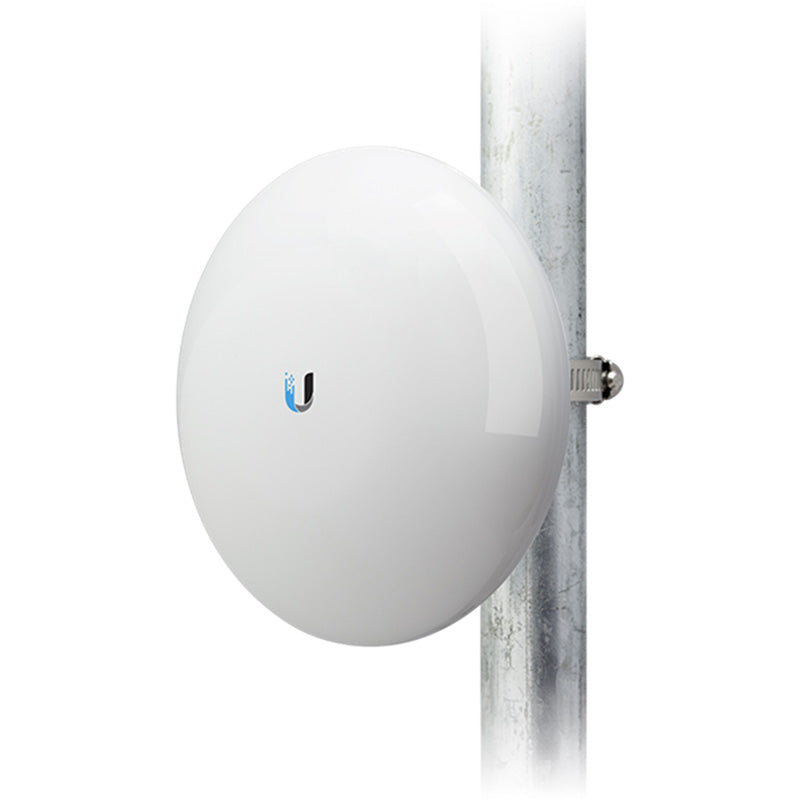

A pole mount kit is included. Wall and window mounts are not included. The bracket offers 20° of uptilt and up to 20° of downtilt.

Is the NBE-2AC-13 suitable for outdoor use?

Yes. It has a UV-stabilised plastic enclosure, operates from -40 to 80°C, and is rated for wind survivability of 200 km/h. It has also passed salt fog, UV, vibration and wind-driven rain tests.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications30 specifications · 5 sections

Mechanical
Dimensions	⌀189 x 125 mm / (⌀7.4 x 4.9")
Weight	530 g (1.2 lb)
Enclosure Materials	UV-stabilized plastic
Mounting	Pole mount kit (Included) / Wall mount (Not included) / Window mount (Not included)
Wind Loading	45.4 N at 200 km/h (10.2 lbf at 125 mph)
Wind Survivability	200 km/h (125 mph)
Hardware
Networking Interface	(1) GbE RJ45 port
Power Method	Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply	24V, 0.5A gigabit PoE adapter (Included)
Supported Voltage Range	20–27V DC
Max. Power Consumption	7.5W
ESD Protection	Air/contact: ± 24kV
Buttons	(1) Factory reset
Ambient Operating Temperature	-40 to 80° C (-40 to 176° F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Qualifications
Salt Fog Test	IEC 68-2-11 (ASTM B117) / Equivalent: MIL-STD-810 G method 509.5
Temperature shock test	IEC 68-2-14
UV test	IEC 68-2-5 at 40° C (104° F) / Equivalent: ETS 300 019-1-4
Vibration test	IEC 68-2-6
Wind-Driven Rain Test	ETS 300 019-1-4 / Equivalent: MIL-STD-810 G method 506.5
System
Total Throughput	150+ Mbps
Channel Bandwidth	10/20/40 MHz
Antenna Gain	13 dBi
Max. VSWR	1.5:1
Polarization	Dual linear
Operating Frequency · Worldwide	2412 - 2472 MHz
Operating Frequency · US/CA	2412 - 2462 MHz
Management Radio (MHz)
Supported Frequency Range · Worldwide	5150 - 5250 MHz
Supported Frequency Range · US/CA	U-NII-3: 5725 - 5850 MHz
