Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
NBE-M5-16
NBE-M5-16 Ubiquiti airMAX NanoBeamM 5GHz Bridge
$122.06 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
Brisbane (none in stock)Sydney (none in stock)MelbourneAdelaide (none in stock)Perth (none in stock)North Lakes (none in stock)
Description
Description
Starting with the first-generation NanoBridge, Ubiquiti Networks pioneered the all-in-one design for an airMAX product functioning as a CPE (Customer Premises Equipment). Now Ubiquiti Networks launches the latest generation of CPE, the NanoBeam.
Available for the 2.4 and 5 GHz frequency bands, the NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
The Ubiquiti Research and Development team combined the radio and antenna to create a more efficient and compact CPE. The NanoBeam gets maximum gain out of the smallest footprint.
Features:
5 GHz
16 dBi
Atheros MIPS 74Kc, 560 MHz
(1) 10/100 Ethernet Port
24V, 0.5A PoE
Frequently asked questions5 questions
What is the NBE-M5-16 designed for?
It is an all-in-one airMAX CPE (Customer Premises Equipment) that combines the radio and antenna in one compact unit. It focuses RF energy in a tighter beamwidth, which helps filter out noise in areas crowded with 5 GHz signals.
What frequency range and antenna gain does it offer?
It operates in the 5 GHz band, covering 5150 to 5875 MHz worldwide, with a 16 dBi antenna. Channel bandwidths of 5, 8, 10, 20, 30 and 40 MHz are supported.
How is the NBE-M5-16 powered?
It uses passive PoE (2-pair) and a 24V, 0.5A PoE adapter is included. It accepts 20 to 27V DC and draws a maximum of 6W.
What network port does it have?

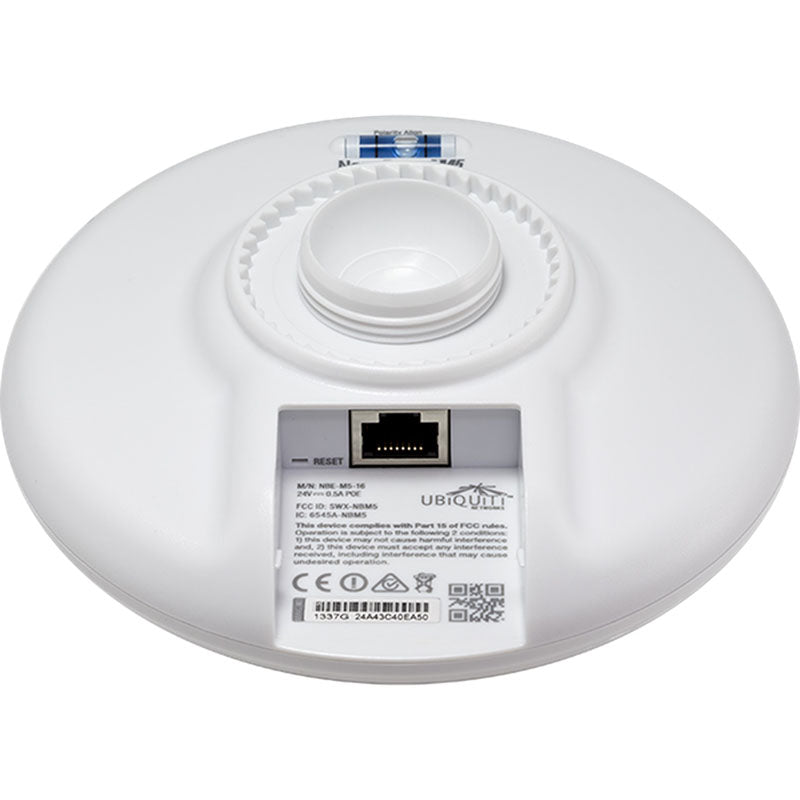

It has one 10/100 Ethernet RJ45 port, which also carries power via the PoE adapter.
Is it suitable for outdoor mounting?
Yes. It has a UV-stabilised polycarbonate enclosure, operates from -40 to 70° C, and survives winds up to 200 km/h. A pole mount is included, and wall mounting is also supported.
Customer reviews
5.0
· 1 review
Specifications25 specifications · 5 sections
| Mechanical | |
|---|---|
| Dimensions | 140 x 140 x 54 mm / (5.5 x 5.5 x 2.1") |
| Weight | 320 g (0.7 lb) |
| Enclosure Materials | Outdoor UV-stabilized polycarbonate |

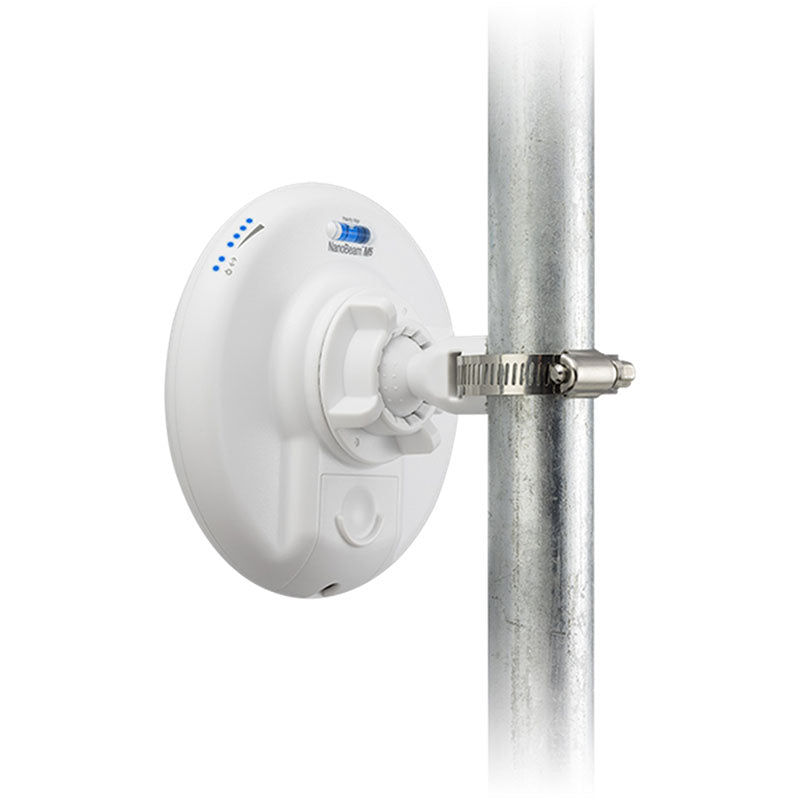

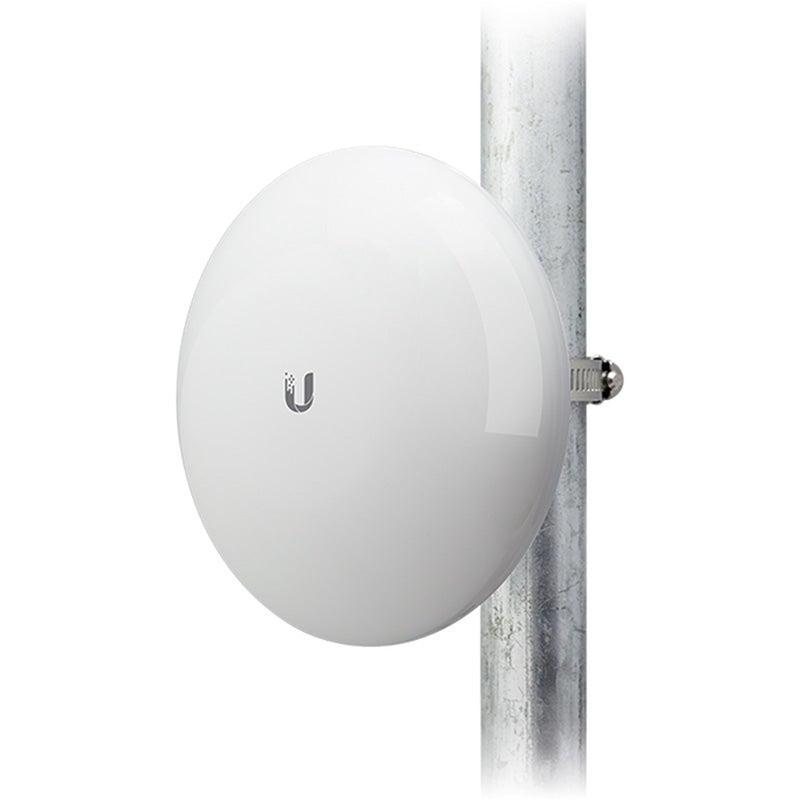

| Mounting | Pole Mount (Included) / Wall Mount |
| Wind Loading | 21.4 N @ 200 km/h (4.8 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A PoE adapter (Included) |
| Supported Voltage Range | 20–27V DC |
| Max. Power Consumption | 6W |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, IC, CE, RoHS, Anatel: 02895-15-08356 |
| Qualifications | |
| Salt Fog Test | IEC 68-2-11 (ASTM B117) / Equivalent: MIL-STD-810 G Method 509.5 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F), / Equivalent: ETS 300 019-1-4 |
| Vibration test | IEC 68-2-6 |
| Wind-Driven Rain Test | ETS 300 019-1-4, / Equivalent: MIL-STD-810 G method 506.5 |
| System | |
| Channel Bandwidth | 5/8/10/20/30/40 MHz |
| Antenna Gain | 16 dBi |
| Max. VSWR | 1.5:1 |
| Polarization | Dual-Linear |
| Radio Frequency | |
| Supported Frequency Range · Worldwide | 5150 - 5875 MHz |
| Supported Frequency Range · US/CA | U-NII-1: 5150-5250 MHz / U-NII-2A: 5250-5350 MHz / U-NII-2C: 5470-5725 MHz / U-NII-3: 5725-5850 MHz |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model NBE-M5-16 · Ubiquiti's spec sheet
