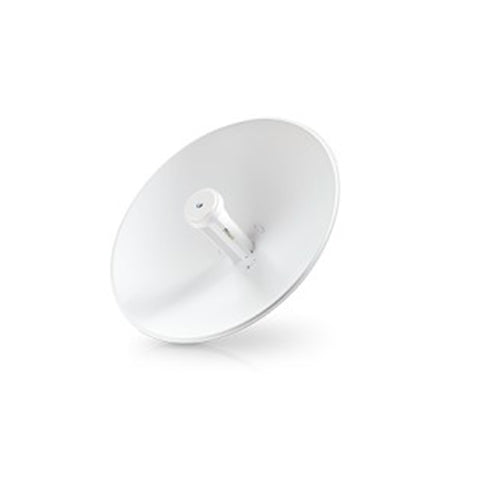

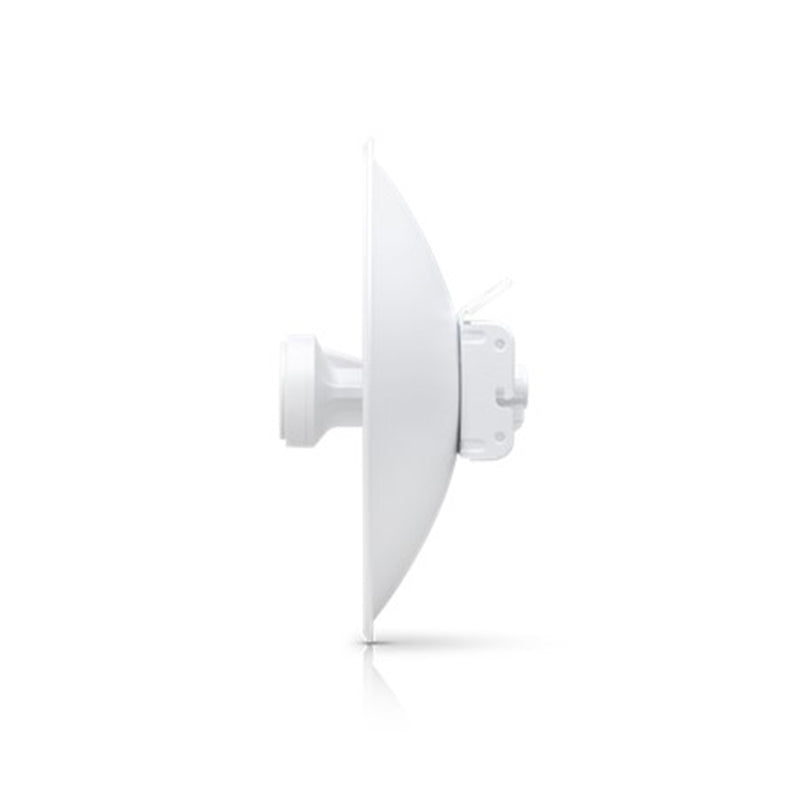

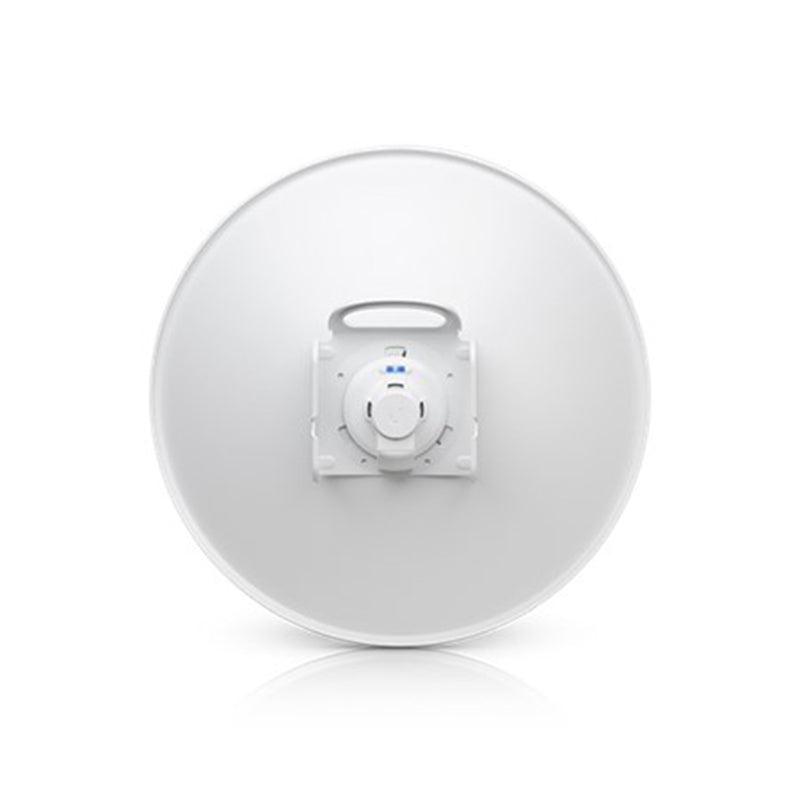

PBE-2AC-400 Ubiquiti airMAX PowerBeam AC 400mm Bridge
$234.19 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
2.4 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate.
Ubiquiti launches the latest generation of airMAX® CPE (Customer Premises Equipment), the PowerBeam® 2AC, with dedicated Wi-Fi management. The PowerBeam 2AC directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam 2AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Features:
High-performance airMAX ac CPE
airMAX ac Protocol Support
Long-Range Point-to-Point (PtP) Link Mode
Selectable Channel Width
PtP: 10/20/40 MHz
PtMP: 10/20/40 MHz
Automatic Channel Selection
Transmit Power Control: Automatic/Manual
Automatic Distance Selection (ACK Timing)
Strongest WPA2 Security
Usability Enhancements
airMagic® Channel Selection Tool
Redesigned User Interface
Dynamic Configuration Changes
Instant Input Validation
HTML5 Technology
Optimization for Mobile Devices
Detailed Device Statistics
Comprehensive Array of Diagnostic Tools, Including RF Diagnostics and airView® Spectrum Analyzer
Innovative Snap and Lock Assembly
Frequently asked questions5 questions
What frequency band does the PowerBeam AC 400mm use?
It operates in the 2.4 GHz band, covering 2412-2472 MHz worldwide. The channel width is selectable at 10, 20 or 40 MHz, and it delivers 450+ Mbps of real TCP/IP throughput.
How is the PowerBeam AC 400mm powered?
It uses passive PoE (2-pair) and accepts 20-27V DC. A 24V, 0.5A gigabit PoE adapter is included. Maximum power consumption is 7.5W.
What is included for mounting, and how well does it handle harsh weather?
A pole mount kit is included. The enclosure is UV-stabilised plastic and powder-coated SPCC, with a wind survivability rating of 200 km/h. It has also been tested for salt fog, UV, vibration and wind-driven rain.
What network port does it have?
It has one GbE RJ45 port, which carries both data and passive PoE power. There is also a single factory reset button.
What is the antenna gain and what kind of links can it run?
The antenna gain is 18 dBi, directing RF energy in a tighter beamwidth to help filter out noise from other signals. It supports a long-range point-to-point (PtP) link mode and point-to-multipoint (PtMP) operation, with airMAX ac protocol support.
Customer reviews
5.0
· 1 review
Specifications26 specifications · 5 sections
| Mechanical | |
|---|---|
| Dimensions | ⌀420 x 289 mm / (⌀16.5 x 11.4") |
| Weight | 1.8 kg (4 lb) |
| Enclosure Materials | UV-stabilized plastic, powder-coated SPCC |
| Mounting | Pole mount kit (Included) |
| Wind Loading | 342.5 N at 200 km/h (77 lbf at125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported Voltage Range | 20–27V DC |
| Max. Power Consumption | 7.5W |
| ESD Protection | Air/contact: ± 24 kV |
| Buttons | (1) Factory reset |
| Certifications | CE, FCC, IC, RoHS |
| Qualifications | |
| Salt Fog Test | IEC 68-2-11 (ASTM B117) / Equivalent: MIL-STD-810 G method 509.5 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) / Equivalent: ETS 300 019-1-4 |
| Vibration test | IEC 68-2-6 |
| Wind-Driven Rain Test | ETS 300 019-1-4 / Equivalent: MIL-STD-810 G method 506.5 |
| System | |
| Total Throughput | 450+ Mbps |
| Channel Bandwidth | 10/20/40 MHz |
| Antenna Gain | 18 dBi |
| Operating Frequency · Worldwide | 2412-2472 MHz |
| Operating Frequency · US/CA | 2412-2462 MHz |
| Management Radio (MHz) | |
| Supported Frequency Range · Worldwide | 5150-5250 MHz |
| Supported Frequency Range · US/CA | U-NII-3: 5725-5850 MHz |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model PBE-2AC-400 · Ubiquiti's spec sheet
