PBE-5AC-ISO-GEN2 Ubiquiti airMAX PowerBeam ISO Bridge

$249.79 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Brisbane and Melbourne

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

The airMAX PowerBeam AC 5 GHz ISO Bridge supports up to 450+ Mbps real TCP/IP throughput and features improved surge protection.

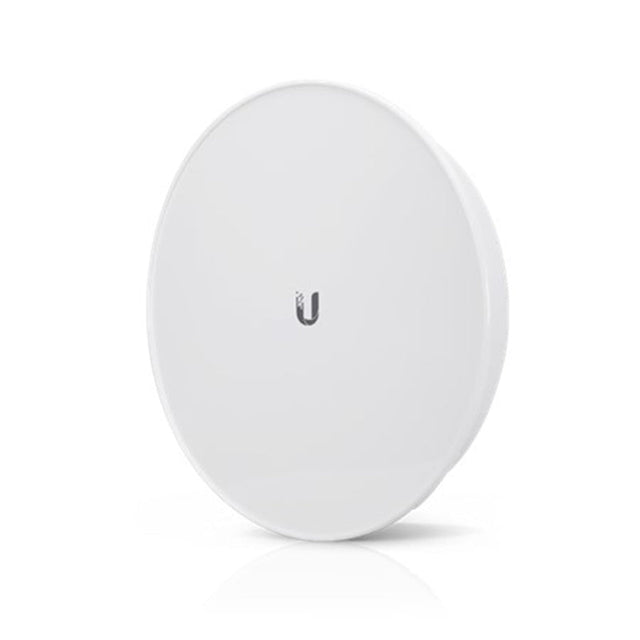

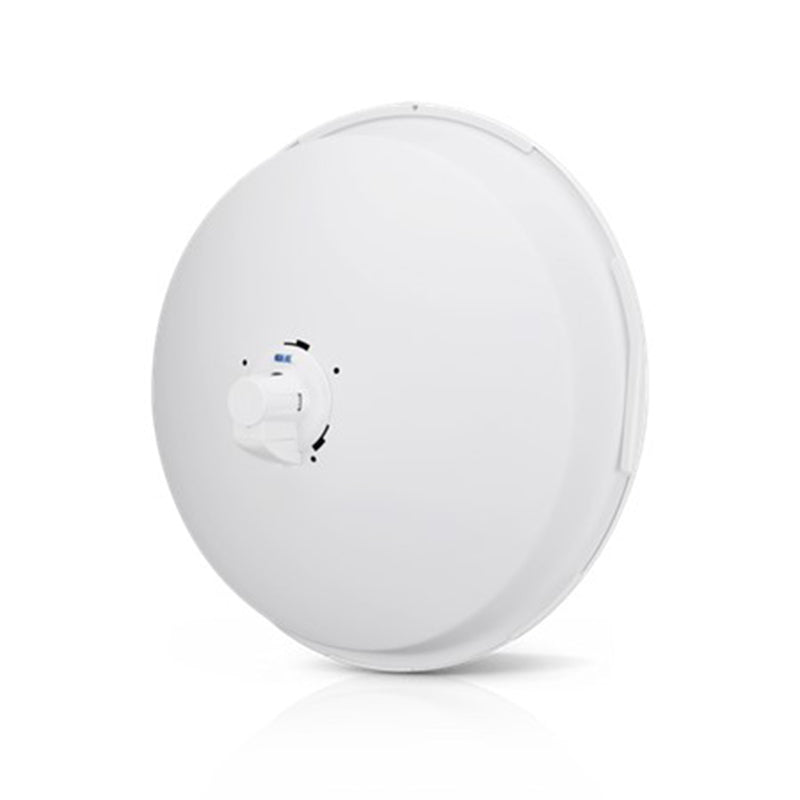

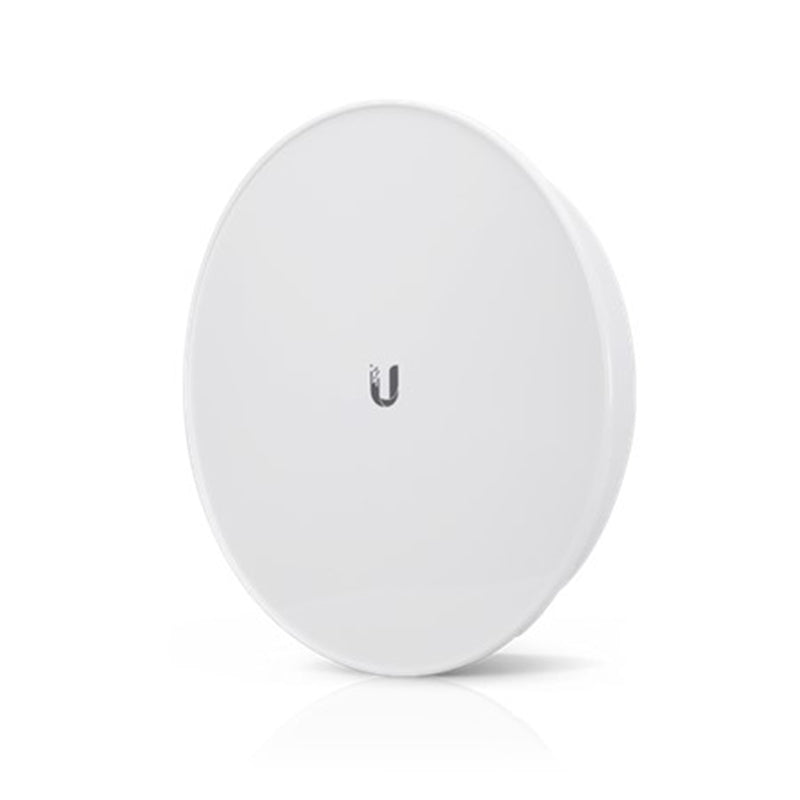

It features a rear housing with a metal-plated interior, designed to enhance RF shielding. Additionally, an included protective radome shields the PowerBeam 5AC ISO from nature's harshest elements.

The integrated isolator design spatially filters out interference, so the PBE-5AC-ISO delivers improved noise immunity in co-location deployments.

Frequently asked questions5 questions

What is the PBE-5AC-ISO-GEN2 used for?

It is a 5 GHz airMAX PowerBeam bridge supporting up to 450+ Mbps real TCP/IP throughput. It operates as an Access Point or Station, and its integrated isolator design filters out interference, improving noise immunity in co-location deployments.

How is the PowerBeam powered, and what is included?

It uses passive PoE (2-pair, pins 4, 5+ and 7, 8 return) and accepts 20-27V DC. A 24V, 0.5A gigabit PoE adapter and a pole mount are included. Maximum power consumption is 8.5W.

What network port does it have?

It has one GbE RJ45 port, which carries both data and PoE power.

Can it cope with harsh outdoor conditions?

Yes. It has a protective radome and a UV-stabilised polycarbonate and powder-coated SPCC enclosure. It operates from -40 to 70° C and survives winds up to 200 km/h. It has also passed salt fog, UV, vibration, temperature shock and wind-driven rain tests.

What are the antenna gain and channel bandwidth options?

Antenna gain is 25 dBi. In PtP mode, channel bandwidths of 10/20/30/40/50/60/80 MHz are supported, and in PtMP mode 10/20/30/40 MHz.

Click HERE to Access the Datasheet

Click HERE to Access the Installation Guide

Specifications27 specifications · 7 sections

Mechanical
Dimensions	420 x 420 x 230 mm / (16.5 x 16.5 x 9.1")
Weight	2.2 kg (4.9 lbs)
Enclosure Materials	UV-stabilized polycarbonate, powder-coated SPCC
Mounting	Pole Mount (Included)
Wind Loading	380 N at 200 km/h (85.4 lbf at 125 mph)
Wind Survivability	200 km/h (125 mph)
Hardware
Networking Interface	(1) GbE RJ45 port
Power Method	Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply	24V, 0.5A gigabit PoE adapter (Included)
Supported Voltage Range	20—27V DC
Max. Power Consumption	8.5W
Ambient Operating Temperature	-40 to 70° C (-40 to 158° F)
Ambient Operating Humidity	5 to 95% non-condensing
Certifications	CE, FCC, IC, RoHS
Qualifications
Salt Fog Test	IEC 68-2-11 (ASTM B117) / Equivalent: MIL-STD-810 G method 509.5
Temperature shock test	IEC 68-2-14
UV test	IEC 68-2-5 at 40° C (104° F) / Equivalent: ETS 300 019-1-4
Vibration test	IEC 68-2-6
Wind-Driven Rain Test	ETS 300 019-1-4 / Equivalent: MIL-STD-810 G method 506.5
Software
Operating Modes	Access Point / Station
QoS	WMM packet classification with user-level priority: High, Medium, Low
System
Channel Bandwidth	PtP Mode: 10/20/30/40/50/60/80 MHz / PtMP Mode: 10/20/30/40 MHz
Antenna Gain	25 dBi
Radio Frequency
Supported Frequency Range · Worldwide	5150 - 5875 MHz
Supported Frequency Range · US/CA	U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz
Management Radio (MHz)
Supported Frequency Range · Worldwide	2412 - 2472 MHz
Supported Frequency Range · US/CA	2412 - 2462 MHz
