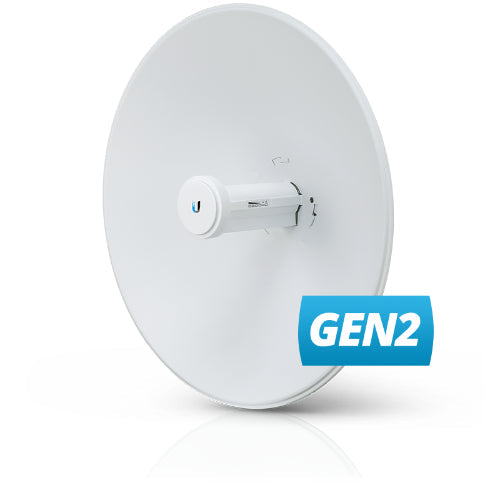

PBE-5AC-GEN2 Ubiquiti airMAX PowerBeam Gen2

$229.50 AUD

Product Options

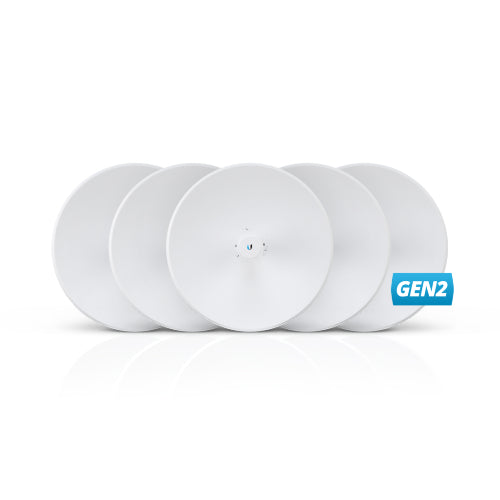

Individual Multipack 5 - no PoE injector

Product variants

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Melbourne, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

Powerful dish reflector design with proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UISP mobile app support and fast setup.

Excellent beam directivity provides the best performance for PtP or PtMP links located in high-noise environments.

Features:

Improved radio design
Improved mounting
Improved surge protection
Management WiFi Radio/UISP mobile app
AirOS 8
Up to 450+ Mbnps throughput

Frequently asked questions5 questions

What is the PBE-5AC-GEN2 used for?

It is a 25 dBi dish reflector airMAX ac radio for point-to-point (PtP) or point-to-multipoint (PtMP) links. Its beam directivity suits high-noise environments, and it runs in Access Point or Station mode.

How is the PowerBeam Gen2 powered?

It uses passive PoE (2-pair, pins 4, 5+ and 7, 8 return) and a 24V, 0.5A gigabit PoE adapter is included. It accepts 20 to 27V DC and draws a maximum of 8.5W.

What frequency and channel bandwidths does it support?

It operates in the 5150-5875 MHz range worldwide. Channel bandwidths are 10/20/30/40/50/60/80 MHz in PtP mode and 10/20/30/40 MHz in PtMP mode, with throughput of up to 450+ Mbps.

Is mounting hardware included and can it handle harsh weather?

A pole mount is included. It is built from UV-stabilised polycarbonate and powder-coated SPCC, operates from -40 to 70 °C, and has a wind survivability of 200 km/h.

How do I set it up and manage it?

It has a dedicated management Wi-Fi radio for setup using the UISP mobile app, and it runs AirOS 8. Wired connection is via a single GbE RJ45 port.

Click HERE to Access the Datasheet

Click HERE to Access the Installation Guide

Specifications26 specifications · 7 sections

Mechanical
Dimensions	420 x 420 x 230 mm / (16.5 x 16.5 x 9.1")
Weight	2.2 kg (4.9 lb)
Enclosure Materials	UV-stabilized polycarbonate, powder-coated SPCC

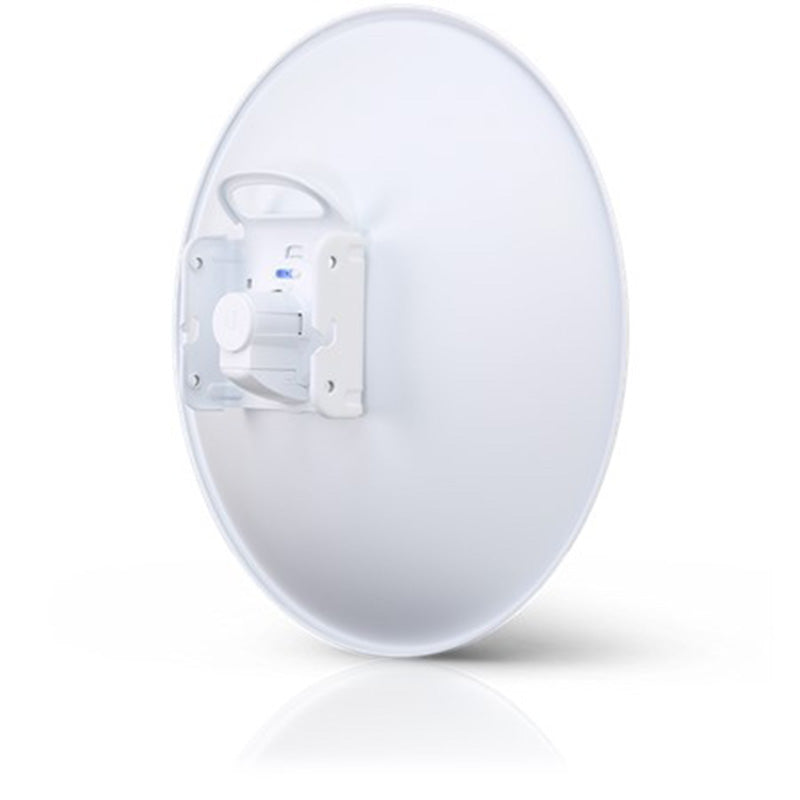

Mounting	Pole Mount (Included)
Wind Loading	380 N at 200 km/h (85.4 lbf at 125 mph)
Wind Survivability	200 km/h (125 mph)
Hardware
Networking Interface	(1) GbE RJ45 port
Power Method	Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply	24V, 0.5A gigabit PoE adapter (Included)
Supported Voltage Range	20—27V DC
Max. Power Consumption	8.5W
Ambient Operating Temperature	-40 to 70 C (-40 to 158 F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC, RoHS, Anatel: 12697-20-08356
Qualifications
Salt Fog Test	IEC 68-2-11 (ASTM B117) / Equivalent: MIL-STD-810 G method 509.5
Temperature shock test	IEC 68-2-14
UV test	IEC 68-2-5 at 40° C (104° F) / Equivalent: ETS 300 019-1-4
Vibration test	IEC 68-2-6
Wind-Driven Rain Test	ETS 300 019-1-4 / Equivalent: MIL-STD-810 G method 506.5
Software
Operating Modes	Access Point / Station
System
Channel Bandwidth	PtP Mode: 10/20/30/40/50/60/80 MHz / PtMP Mode: 10/20/30/40 MHz
Antenna Gain	25 dBi
Radio Frequency
Supported Frequency Range · Worldwide	5150-5875 MHz
Supported Frequency Range · US/CA	U-NII-1: 5150-5250 MHz / U-NII-2A: 5250-5350 MHz / U-NII-2C: 5470-5725 MHz / U-NII-3: 5725-5850 MHz
Management Radio (MHz)
Supported Frequency Range · Worldwide	2412 - 2472 MHz
Supported Frequency Range · US/CA	2412 - 2462 MHz
