PS-5AC Ubiquiti UISP airMAX PrismStation 5AC

$579.04 AUD

In stock · Last fewShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane and Melbourne

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

Ubiquiti 5Ghz Prism Base Station - No Antenna

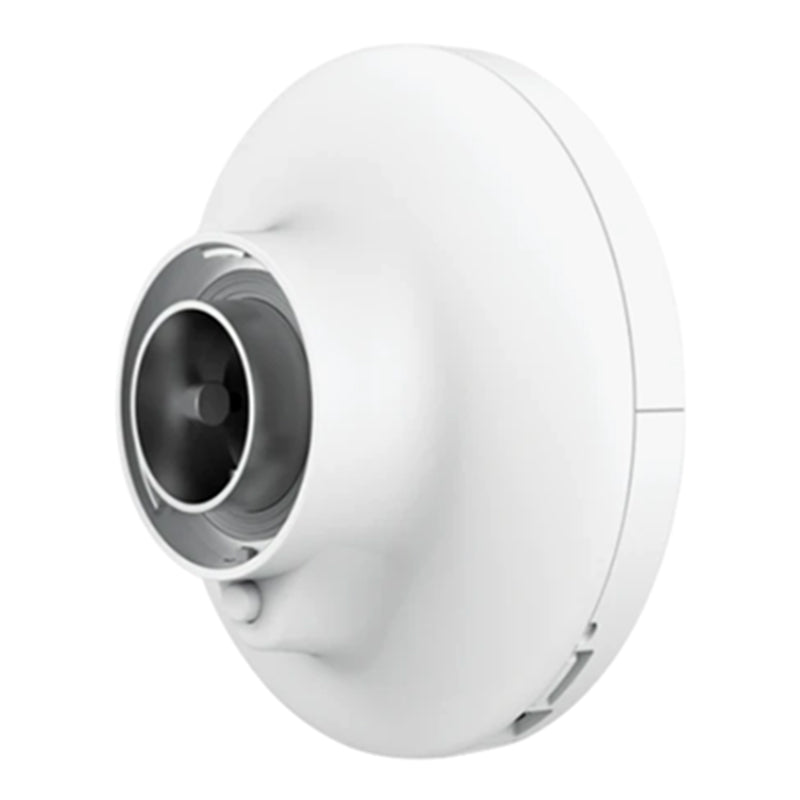

The Ubiquiti PS-5AC PrismStation Outdoor 5GHz WiFi 5 PoE Point-to-Point Link features a die-cast aluminium base and interchangeable horn antenna (antennas sold separately).

The PrismStation 5AC, with proprietary airMAX ac chipset and dedicated management WiFi, isolates beam communications between your devices. Ideal as an AP in crowded RF environments such as urban areas.

Features:

Designed to deliver maximum spectral efficiency with up to 500Mbps+ throughput.
Next-generation airMAX ac technology boosts the advantages of TDMA protocol.
Designed to support high data rates which require dense modulation.
Features multi-radio architecture to power revolutionary RF analytics.
Can be deployed for PtP or PtMP links in high RF noise environments.
Utilises the latest ESD protection to help protect against power surges.
Comprehensive array of diagnostic tools including RF Diagnostics.
Robust die cast aluminium casing to protect against electromagnetic interference.
Intelligent QoS to allow priority to be assigned to voice for seamless streaming.

Frequently asked questions5 questions

What is the PS-5AC PrismStation used for?

It is an outdoor 5GHz airMAX ac base station for point-to-point (PtP) or point-to-multipoint (PtMP) links. It is designed for crowded RF environments such as urban areas, with throughput of up to 500Mbps+.

Does the PS-5AC come with an antenna?

No. It has an interchangeable horn antenna design and is supplied without an antenna. A pole mount and a 24V, 1A gigabit PoE adapter are included.

How is the PS-5AC powered?

It uses passive 2-pair PoE (pins 4, 5 positive; 7, 8 return) through its single GbE RJ45 port, and the supplied 24V, 1A gigabit PoE adapter provides power. It accepts 20-27V DC and draws a maximum of 10W.

What frequency ranges does it support?

The main radio covers 5150-5875 MHz worldwide. A separate dedicated management WiFi radio operates at 2412-2472 MHz worldwide, keeping management traffic apart from the beam communications.

Is the PS-5AC suitable for harsh outdoor conditions?

It has a die-cast aluminium casing and is rated for ambient temperatures of -40 to 70°C and 5 to 95% non-condensing humidity. It survives winds up to 200 km/h and includes ESD protection against power surges.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications21 specifications · 6 sections

Mechanical
Dimensions	Device: / 155 x 155 x 104 mm (6.1 x 6.1 x 4.1") / Mounting: / 83 x 117 x 69 mm (3.3 x 4.6 x 2.7")
Weight	Device: 0.8 kg (1.7 lb) / Mounting: 0.8 kg (1.7 lb)

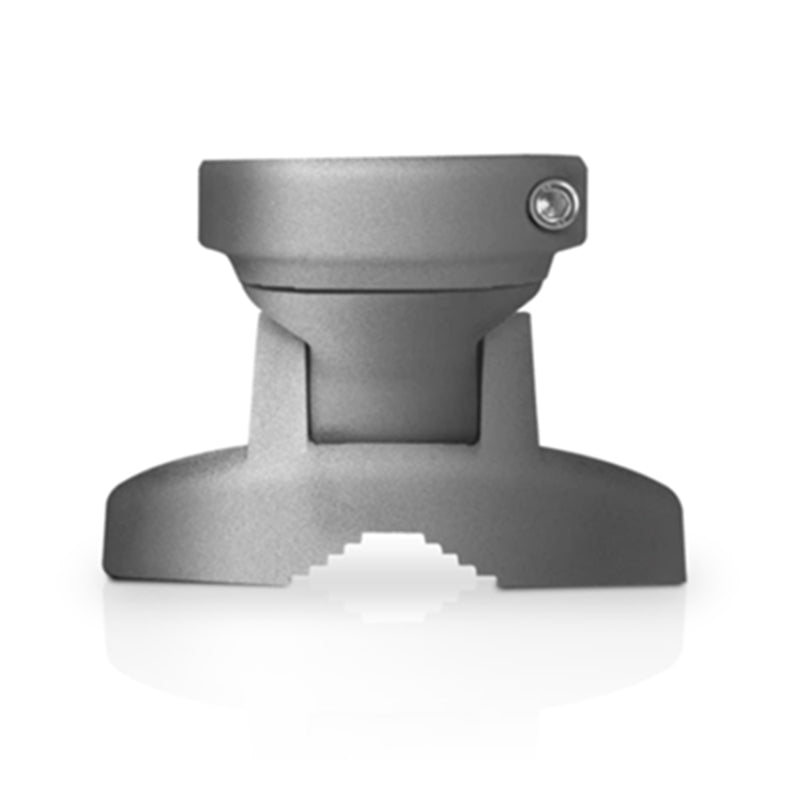

Mounting	Pole Mount (Included)
Wind Loading	31 N at 200 km/h (7 lbf at 125 mph)
Wind Survivability	200 km/h (125 mph)
Hardware
Networking Interface	(1) GbE RJ45 port
Power Method	Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply	24V, 1A gigabit PoE adapter (Included)
Supported Voltage Range	20—27V DC
Max. Power Consumption	10W
RF Connections	(1) GPS
Ambient Operating Temperature	-40 to 70° C (-40 to 158° F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC, Anatel: 05157-18-08356
Software
QoS	WMM packet classification with user-level priority: High, Medium, Low
System
Max. VSWR	2:1
Polarization	Dual-Linear
Radio Frequency
Supported Frequency Range · Worldwide	5150 - 5875 MHz
Supported Frequency Range · US/CA	U-NII-1: 5150-5250 MHz / U-NII-2A: 5250-5350 MHz / U-NII-2C: 5470-5725 MHz / U-NII-3: 5725-5850 MHz
Management Radio (MHz)
Supported Frequency Range · Worldwide	2412 - 2472 MHz
Supported Frequency Range · US/CA	2412 - 2462 MHz
