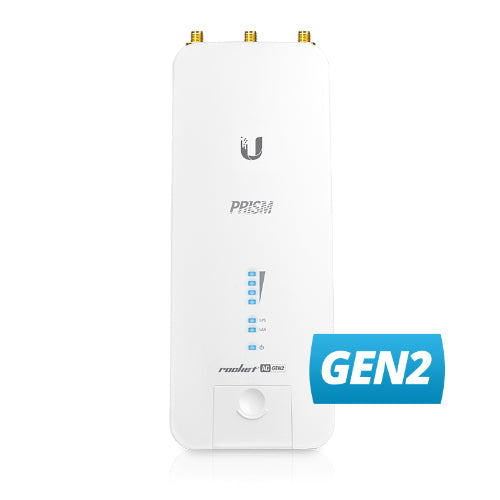

RP-5AC-Gen2 Ubiquiti airMAX Rocket Prism AC 5GHz Radio

$490.34 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

The Rocket5 ac Prism covers the full 5 GHz radio band and incorporates both airMAX ac and airPrism technologies for maximum performance of wireless links in high-density areas.

Ubiquiti's patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.

The Rocket5ac Prism features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView® real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.

The Rocket 5AC Prism features revolutionary airPrism RF filtering technology, proprietary airMAX ac chipset, and dedicated management WiFi for easy UISP® mobile app support and fast setup. Deploy the Rocket 5AC Prism for PtP or PtMP links in high-noise environments.

Features:

Custom Ubiquiti® airMAX AC Processor
Proprietary airPrism® Active RF Filtering Technology
GPS for Superior Co-Location Performance
5 GHz Wide Band Operating Frequency
Point-to-MultiPoint Links to airMAX ac Clients
Robust Die Cast Aluminum Casing
Dedicated Management Radio

Frequently asked questions5 questions

What is the Rocket Prism AC Gen2 used for?

It is a 5 GHz airMAX ac radio for point-to-point and point-to-multipoint links, including to airMAX ac clients. It uses airPrism RF filtering and is intended for high-noise environments.

How is the Rocket Prism AC Gen2 powered?

It uses passive PoE (2-pair) with a supported voltage range of 18-27V DC and a maximum power consumption of 9.5W. A 24V, 1A gigabit PoE adapter is included.

What ports and connectors does it have?

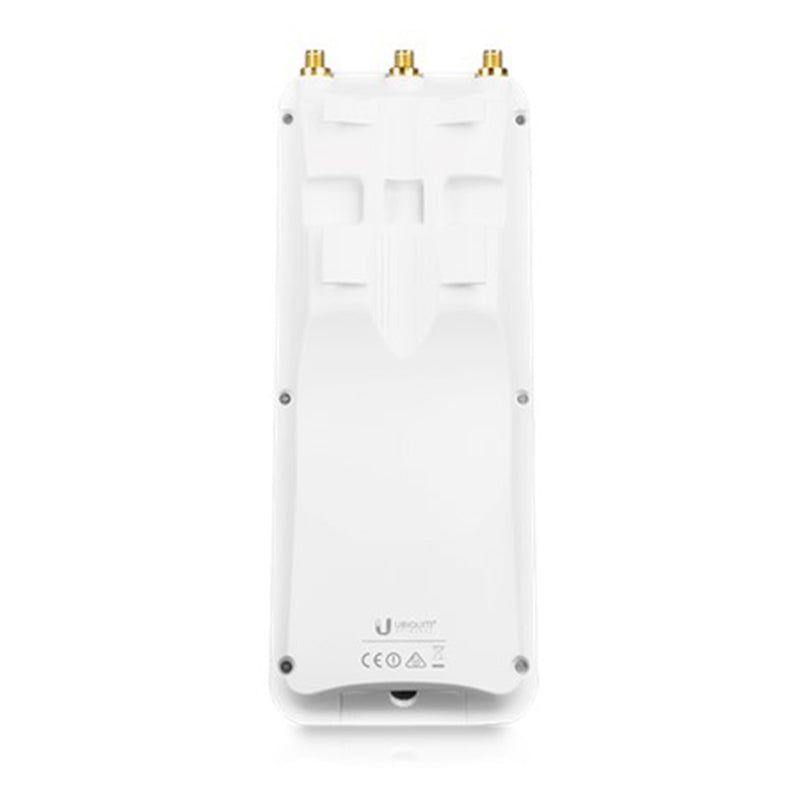

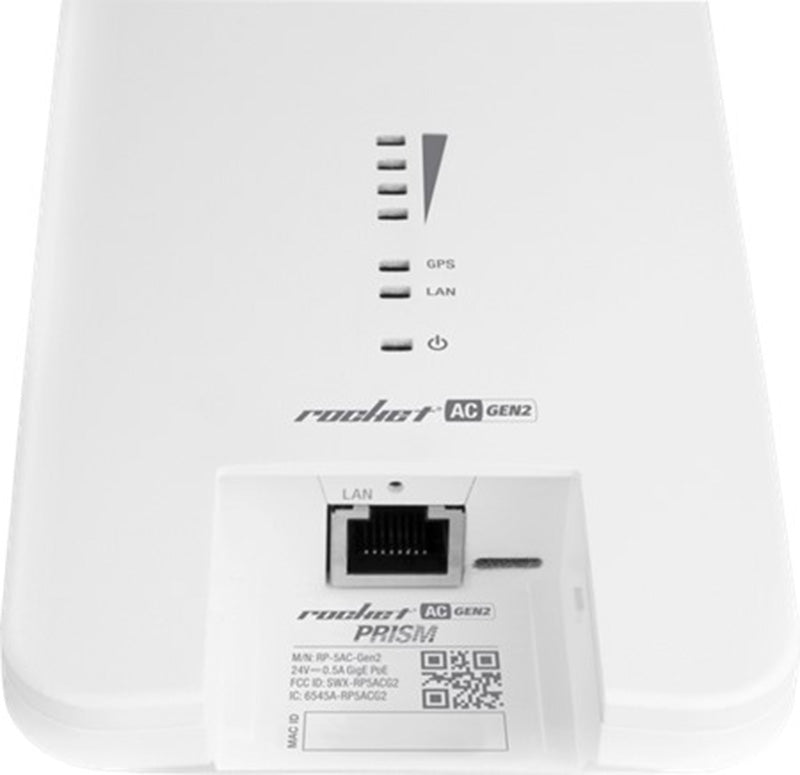

It has one GbE RJ45 port, two waterproof RP-SMA RF connections and one waterproof GPS connection. GPS support is aimed at improving co-location performance.

Which frequencies and channel widths does it support?

It operates across 5150-5875 MHz worldwide. Channel bandwidth is 10/20/30/40/50/60/80 MHz in PtP mode and 10/20/30/40 MHz in PtMP mode.

Is the Rocket Prism AC Gen2 suitable for outdoor use?

It has a die-cast aluminium enclosure and an operating temperature range of -40 to 80°C. Humidity tolerance is 5 to 95% non-condensing, and it carries ETSI300-019-1.4 shock and vibration certification.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications21 specifications · 6 sections

Mechanical
Dimensions	88 x 40 x 230 mm / (3.5 x 1.6 x 9.1")
Weight	400 g (14.1 oz)
Enclosure Materials	Die-cast aluminum
Wind Loading	342.5 N at 200 km/h (77 lbf at 125 mph)
Hardware
Networking Interface	(1) GbE RJ45 port
Power Method	Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply	24V, 1A gigabit PoE adapter (Included)
Supported Voltage Range	18–27V DC
Max. Power Consumption	9.5W
RF Connections	(2) RP-SMA (Waterproof) / (1) GPS (Waterproof)
Ambient Operating Temperature	-40 to 80° C (-40 to 176° F)
Ambient Operating Humidity	5 to 95% noncondensing
Shock and Vibration Certification	ETSI300-019-1.4
Certifications	CE, FCC, IC, RoHS, Anatel: 02137-18-08356
Software
Operating Modes	Access Point / Station
QoS	WMM packet classification with user-level priority: High, Medium, Low
System
Channel Bandwidth	PtP mode: 10/20/30/40/50/60/80 MHz / PtMP mode: 10/20/30/40 MHz
Radio Frequency
Supported Frequency Range · Worldwide	5150–5875 MHz
Supported Frequency Range · US/CA	U-NII-1: 5150–5250 MHz / U-NII-2A: 5250–5350 MHz / U-NII-2C: 5470–5725 MHz / U-NII-3: 5725–5850 MHz
Management Radio (MHz)
Supported Frequency Range · Worldwide	2412–2472 MHz
Supported Frequency Range · US/CA	2412–2462 MHz
