TP-DCDC Tycon Power PoE Injector

Price:

$73.03

SKU: TP-DCDC-1224

Chat 7am to 10pm - 7 days a week

We love what we do!

 Shipping Costs From

Standard - $15 or Express - $20

Want The Best Prices?

Request a quote

TP-DCDC-1224 9-36VDC IN 24VDC OUT 19W DC to DC POE

& TP-DCDC-1248 9-36V IN,48V 24W OUT, Pasv PoE Inj


The TP-DCDC-1224 and TP-DCDC-1228 are a low cost and high reliability solution for those requiring 24VDC or 48VDC Power over Ethernet voltage from a 12 or 24V battery system.


They have an integrated PoE injector to apply the 24VDC or 48VDC to the CAT5/6 Ethernet cable. The output is regulated 24VDC or 48VDC from an input voltage between 9VDC and 36VDC. They have one common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications.


They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). An IEEE 802.3af compliant model is available for those applications requiring 802.3af handshake.



TP-DCDC-1224G 24V Passive POE Output Gigabit Injector

& TP-DCDC-1248G 1Gbps 9-36V IN,48V 19W OUT, GigE Pasv PoE Inj


The TP-DCDC-1224G and TP-DCDC-1248G are a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle.


They have an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable. The output voltage is regulated and protected. They have a common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications.


They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They works by supplying power on Ethernet pins 4,5(V+) and 7,8(V-).



---

They have various protections for surge, short circuit and overload. The units have power output up to 24W.



The DCDC converters are DIN rail mountable using DIN Rail adaptors pn: DIN-ClipKit-UNI



  • What's in the Box
  • What is PoE?
  • Additional Information
  • Datasheets and Guides

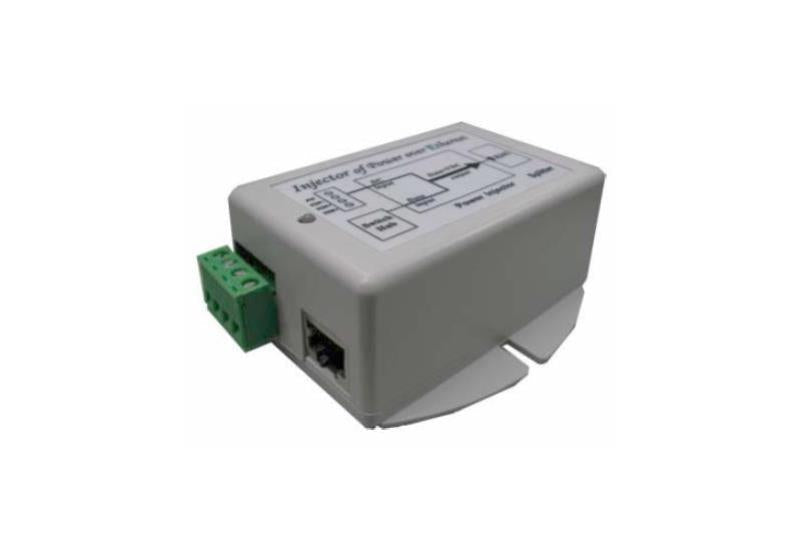

Tycon Power TP-DCDC-1224 9-36VDC IN 24VDC OUT 19W DC to DC POE



Features

• Input Voltage 9-36VDC; Output 24VDC Passive

• Dual Inputs for connecting 2 power sources

• Integrated 10/100MB POE Inserter

• High Power up to 19W

• Short Circuit, Over Current and Reverse/Over Voltage Protection

• High Temperature Operation

• Compact size – Maximize Available Space

• I.T.E. Power Supply, UL Listed



Applications

• 12V / 24V Battery Systems

• Wireless Access Points and Client Devices

• IP Phone and Security Camera Systems

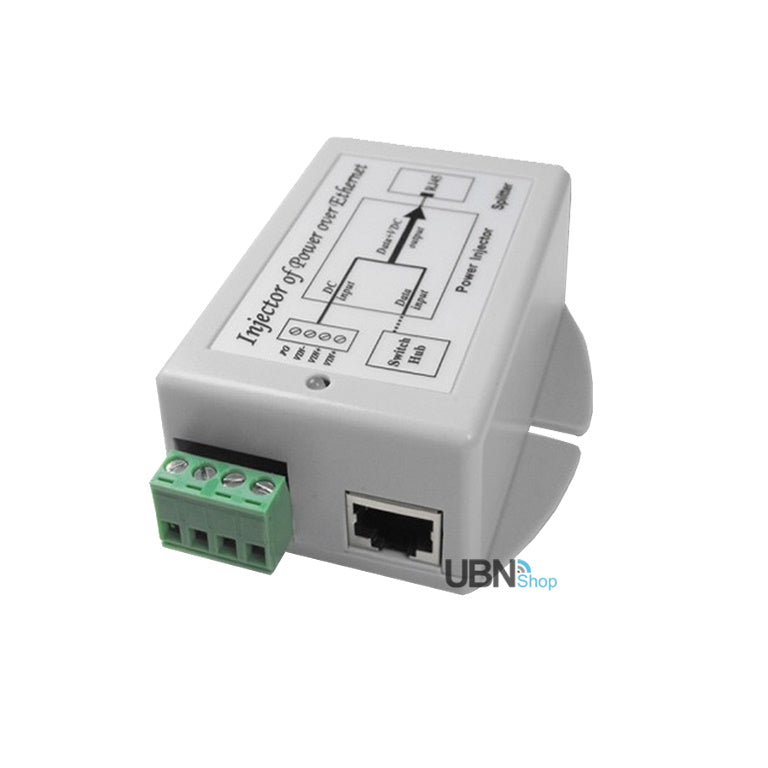

Tycon Power TP-DCDC-1224G 24V Passive POE Output Gigabit Injector



Features

• Input Voltage 9-36VDC; Output 24VDC (Passive)

• Integrated Gigabit PoE Inserter

• High Power 19W

• Short Circuit, Over Current and Over Voltage Protection

• High Temperature Operation

• Removable Wire Terminal Input for up to 12AWG wires

• I.T.E. Power Supply, UL Listed



Tycon Power TP-DCDC-1248 9-36V IN,48V 24W OUT,Pasv PoE Inj



Features

• Input Voltage 9-36VDC; Output 48VDC (Passive)

• Dual Inputs for connecting 2 power sources

• Integrated 10/100MB POE Inserter

• High Power up to 24W

• Short Circuit, Over Current and Reverse/Over Voltage Protection

• High Temperature Operation

• Compact size – Maximize Available Space

• I.T.E. Power Supply, UL Listed



Applications

• 12V / 24V Battery Systems

• Wireless Access Points and Client Devices

• IP Phone and Security Camera Systems



Tycon Power TP-DCDC-1248G 1Gbps 9-36V IN,48V 19W OUT,GigE Pasv PoE Inj



Features

• Input Voltage 12VDC or 24VDC (Range 9-36VDC)

• Passive PoE Output, 48VDC

• Dual Inputs for Connecting 2 Power Sources

• Integrated 10/100/1000MB PoE Inserter

• High Power up to 19W

• Low Self Consumption Power

• Short Circuit, Over Current and Reverse/Over Voltage Protect

• High Temperature Operation

• Compact Size – Maximize Available Space

• I.T.E. Power Supply, UL Listed



Applications

• 12V / 24V Battery Systems, Vehicle Applications

• Wireless Access Points and Client Devices

• IP Phone and Security Camera Systems









Click HERE to access the Datasheet

Click HERE to access the User Guide
