Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
U6-LR

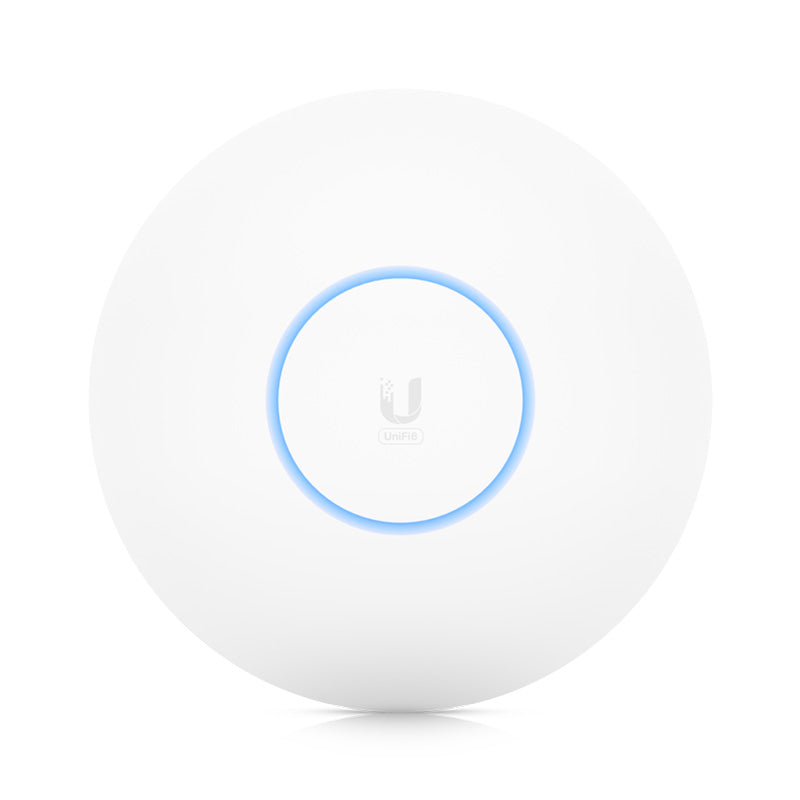

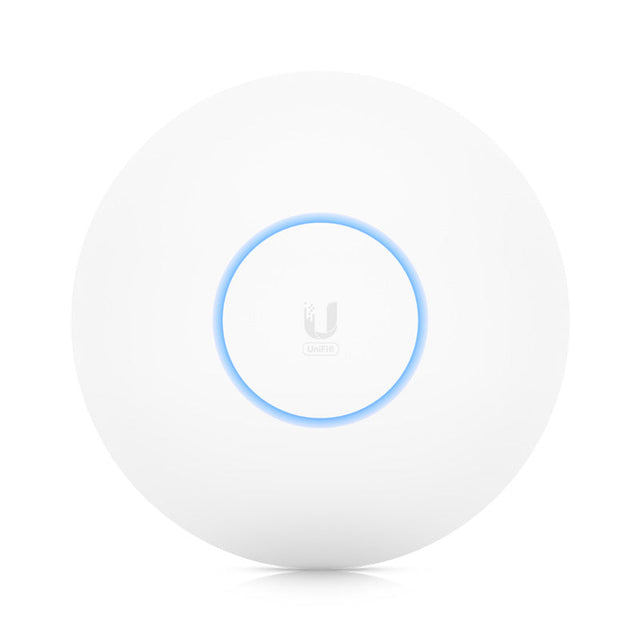

U6-LR Ubiquiti UniFi6 Long Range AP (no PoE injector)
$401.50 AUD
Unit price
/
Unavailable
Out of stock
Brisbane (none in stock)Sydney (none in stock)Melbourne (none in stock)Adelaide (none in stock)Perth (none in stock)North Lakes (none in stock)
Description
Description
Please note:
- No PoE Injector Included
- Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue colour modes.
The Access Point WiFi 6 Long-Range (U6 LR) is a high-performance access point that brings powerful, four-stream WiFi 6 coverage to enterprise networks. The U6 LR can reach an aggregate throughput rate up to 3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (4x4 MIMO) bands.
It also has a sideways, down-tilted antenna pattern to expand its coverage area. The water and dust-resistant U6 LR can be mounted either indoors or outside, blending seamlessly into virtually any environment so you'll never have to disrupt your space's aesthetic to enjoy excellent wireless coverage.
The U6 LR simplifies the process of bringing WiFi 6 to enterprise networks that support a large number of clients. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Features:
High-efficiency 4x4 WiFi 6 (802.11ax)
5 GHz band (4x4 MU-MIMO and OFDMA) with 2.4 Gbps throughput rate
2.4 GHz band (4x4 MIMO) with 600 Mbps throughput rate
Powered by 802.3at PoE (PoE injector sold separately)
IP54-rated water and dust protection for indoor/outdoor mounting versatility
Frequently asked questions5 questions
Does the U6-LR come with a PoE injector?
No, a PoE injector is not included. The access point is powered by 802.3at PoE (PoE+) over its single GbE RJ45 port, with a supported voltage range of 44-57V DC and a maximum power consumption of 18.5W.
What WiFi speeds and coverage can the U6-LR deliver?
It is a 4x4 WiFi 6 (802.11ax) access point with up to 2.4 Gbps on 5 GHz and 600 Mbps on 2.4 GHz. Coverage is rated at 185 m² (2,000 ft²), and it supports 350+ connected clients.
Can the U6-LR be mounted outdoors?
Yes. It has an IP54 rating for water and dust protection, so it suits indoor or outdoor mounting, and its operating temperature range is -30 to 60°C. A Pro Mount is included for ceiling or wall installation.
How is the U6-LR managed?
It is managed through the UniFi Network web application or mobile app, with management over Ethernet or Bluetooth. It requires UniFi Network version 6.0.45 or later.
Are there any limits on the LED colours?
Yes. Due to chip supply shortages, the LED is limited to white and blue colour modes only.
Customer reviews
5.0
· 5 reviews
★★★★★Collected by reviews.io · Jul 2024
The best AP we have in our warehouse. Coverage is fantastic
Robert
★★★★★Collected by reviews.io · Jun 2024
Brings WIFI 6 to the party at a very reasonable cost point. These are great.
Francois
★★★★★Collected by reviews.io · May 2024
Looks nice and has great range
Rory
★★★★★Collected by reviews.io · Sep 2023
Ubiquiti are the benchmark, great product
PeterSpecifications35 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | ⌀220 x 48 mm / (⌀8.7 x 1.9") |
| WiFi Standard | WiFi 6 |
| Spatial Streams | 8 |
| Coverage Area | 185 m² (2,000 ft²) |
| Max. Client Count | 350+ |
| Uplink | GbE |
| Mounting | Ceiling, Wall / (Pro Mount Included) |
| Weatherproofing | IP54 |
| Power Method | PoE+ |
| Performance | |
| MIMO · 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| MIMO · 2.4 GHz | 4 x 4 (SU-MIMO) |
| Max. Data Rate · 5 GHz | 2.4 Gbps (BW160) |
| Max. Data Rate · 2.4 GHz | 600 Mbps (BW40) |
| Antenna Gain · 5 GHz | 5.5 dBi |
| Antenna Gain · 2.4 GHz | 4 dBi |
| Max. TX Power · 5 GHz | 26 dBm |
| Max. TX Power · 2.4 GHz | 26 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80) / 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) / 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 18.5W |
| Supported Voltage Range | 44–57V DC |
| Networking Interface | (1) GbE RJ45 port |
| Weight | Device: 800 g (1.8 lb) / With mount: 930 g (2.1 lb) |
| Management | Ethernet / Bluetooth |
| Enclosure Material | Polycarbonate |
| Mount Material | Stainless steel (SUS304) |
| LEDs · System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
| Operating Frequency | US/CA: / 2400 - 2472 MHz / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / / Worldwide: / 2400 - 2483.5 MHz / 5150 - 5850 MHz |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, SRRC, Anatel: 10457-21-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 6.0.45 and later |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model U6-LR · Ubiquiti's spec sheet
