Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UACC-OM-SFP28-SR

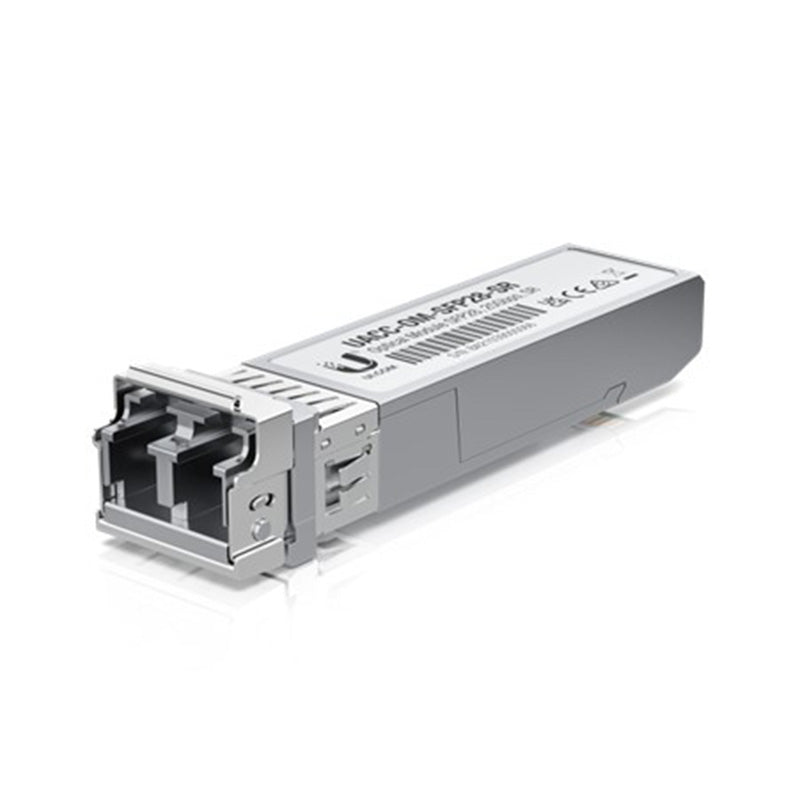

UACC-OM-SFP28-SR Ubiquiti UniFi SFP28 Multi-Mode 25G Optical Module
$96.25 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
Brisbane (none in stock)Sydney (none in stock)MelbourneAdelaide (none in stock)Perth (none in stock)North Lakes (none in stock)
Description
Description
Short-range, SFP28-compatible optical transceiver module.
The 25 Gbps Multi-mode Optical Module is an optical transceiver capable of sustaining 25 Gbps throughput over a fiber connection. After connecting the module to a compatible fiber line, simply insert it into any SFP28 port to experience true 25 Gbps speed.
Features:
25 Gbps throughput
SFP28-compatible
Designed for cable deployments spanning up to 100 m (Fiber cable is not included)
Frequently asked questions5 questions
What is the UACC-OM-SFP28-SR used for?
It is a short-range SFP28 optical transceiver that delivers 25 Gbps over multi-mode fibre. Connect it to a fibre line, then insert it into an SFP28 port.
How far can this module reach over fibre?
It supports up to 100 m (328 ft) over OM4 multi-mode fibre and up to 70 m (229 ft) over OM3. Fibre cable is not included.
What speeds and connector does it support?
It supports 1, 10 and 25 Gbps data rates and uses a duplex LC UPC connector. Both transmit and receive wavelengths are 850 nm.
What fibre type does it need?
It is designed for multi-mode fibre only, with an 850 nm wavelength. Fibre cable is not included.
How much power does it use and what temperatures can it operate in?
Maximum power consumption is 0.8 W. The ambient operating temperature range is 0 to 70° C (32 to 158° F).
Click HERE to access the Datasheet
Specifications11 specifications · 1 sections
| Overview | |
|---|---|
| Form Factor | SFP28 |
| Connector | Duplex LC UPC |
| Supported Media | Multi-Mode Fiber |
| TX Wavelength | 850 nm |
| RX Wavelength | 850 nm |
| Supported Data Rate | 1 / 10 / 25 Gbps |
| Supported Cable Distance | OM4 - 100 m (328 ft) / OM3 - 70 m (229 ft) |
| Max. Power Consumption | 0.8 W |
| Pack Options | Single Unit |
| Ambient Operating Temperature | 0 to 70° C (32 to 158° F) |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 / Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model UACC-OM-SFP28-SR · Ubiquiti's spec sheet
