Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UACC-Rack-12U-Wall-Slim
UACC-Rack-12U-Wall-Slim - Ubiquiti Fully assembled wall-mount 12U Slim Rack Cabinet
$2,750.00 AUD
Unit price
/
Unavailable
Out of stock
Brisbane (none in stock)Sydney (none in stock)Melbourne (none in stock)Adelaide (none in stock)Perth (none in stock)North Lakes (none in stock)
Description
Description
Please note this is currently listed as an item that is obtainable from Ubiquiti and we get plenty of requests for it. These are pre-built and so are heavy. We have to air freight these, so the shipping costs are why the price is high. If you really want one, we can certainly get them !

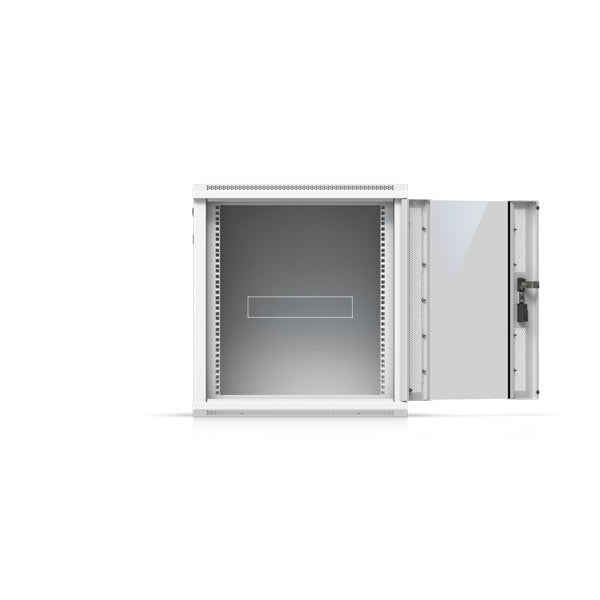

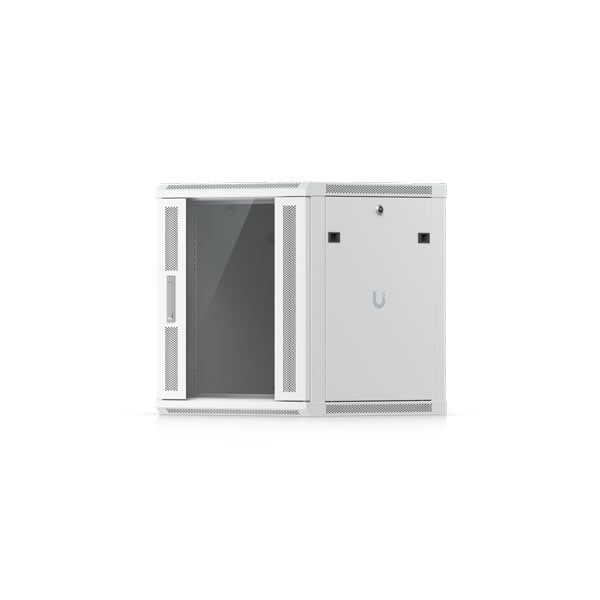

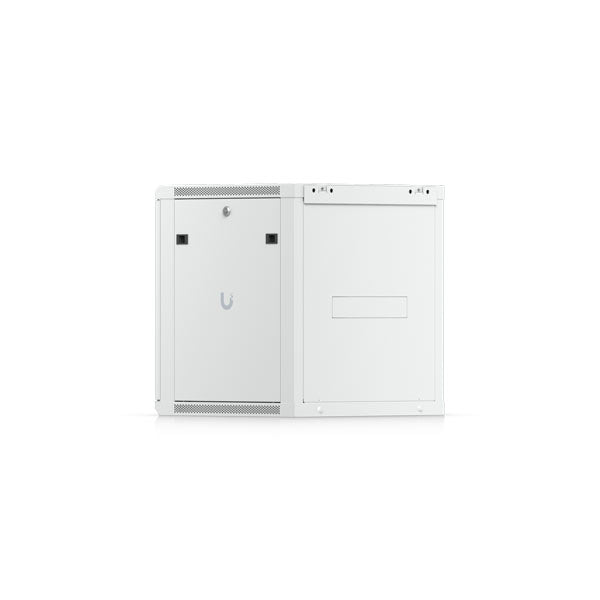

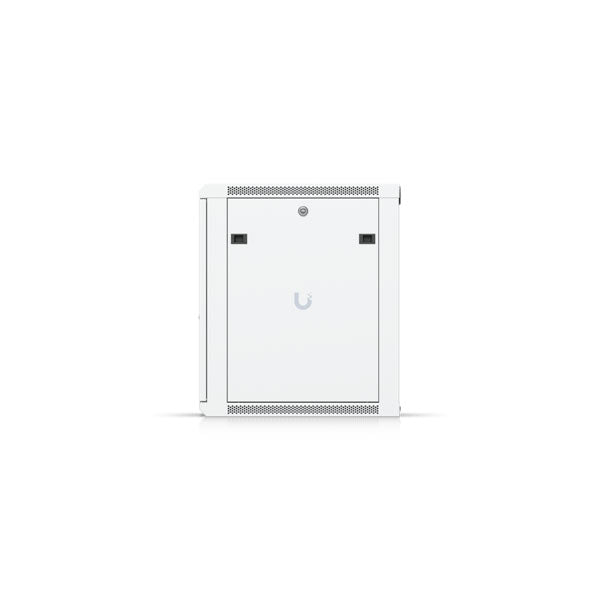

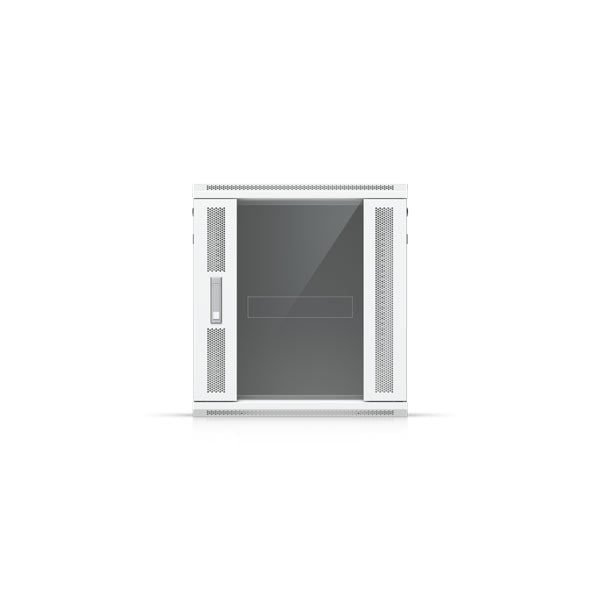

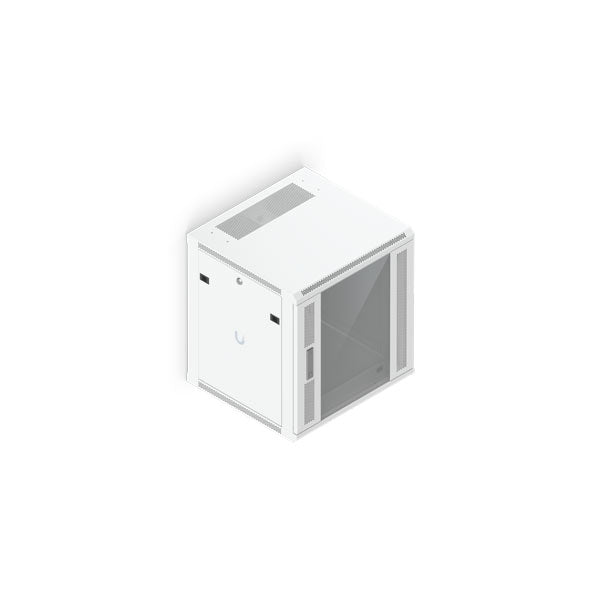

Fully assembled, compact and wall-mount rack cabinet with glass front, dual fans, and removable side panels.
Features:
Compact size for installation
Built-in fan with temperature sensor for effective ventilation

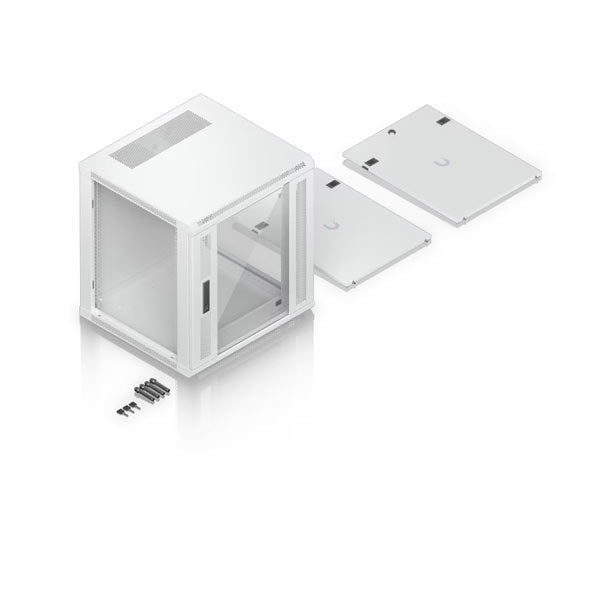

Removable side panels for easy access
Dimensions:
Device: 600 x 560 x 650 mm (23.6 x 22 x 25.6")
With packaging: 900 x 730 x 940 mm (35.4 x 28.7 x 37")
Frequently asked questions5 questions
How many rack units does this cabinet offer, and what type of rack is it?
It provides 12U of space in a 4-post, enclosed cabinet with square mounting holes. It is wall-mounted and built to the EIA/ECA-310-E standard.
What are the dimensions and weight of the cabinet?
The rack measures 600 x 560 x 650 mm (23.6 x 22 x 25.6") and weighs 32 kg (71 lb). With packaging it weighs 41 kg (90.4 lb).
How much equipment can it hold, and how deep can the mounting posts be set?
The maximum weight capacity is 100 kg (220 lb). Mounting depth is adjustable, with a default of 446 mm, a maximum of 469 mm and a minimum of 78 mm.
How is the cabinet cooled?
It has two pre-installed fan modules. A thermal sensor switch lets the fans run continuously when the power cable is connected (sensor off) or activate automatically based on internal cabinet temperature (sensor on).
What access and security features does the cabinet have?
The tempered glass front door is left-hand outswing by default and is reversible, and it has a lock. The two solid side panels are removable and lockable, and three keys are provided.
Specifications18 specifications · 1 sections
| Overview | |
|---|---|
| Dimensions | Packaging: 800 x 755 x 815 mm (31.5 x 29.7 x 32.1") / Rack: 600 x 560 x 650 mm (23.6 x 22 x 25.6") |
| Weight | Packaging: 41 kg (90.4 lb) / Rack: 32 kg (71 lb) |
| Enclosure Material | SPCC steel / Door/side panels: 1.2 mm (0.05") / Main body: 1.5 mm (0.06") / Posts: 2 mm (0.08") |
| Color | White |
| Treatment | Powder coating |
| Rack Features · U Height | 12U |
| Rack Features · Rack Type | 4 post, enclosed cabinet |
| Rack Features · Mounting Hole Type | Square |
| Rack Features · Adjustable Mounting Depth | Default 446 mm (17.6") / Max. 469 mm (18.5") / Min. 78 mm (3.1") |
| Rack Features · Max. Weight Capacity | 100 kg (220 lb) |
| Rack Features · Front Door | Tempered glass / Default left-hand outswing, reversible |
| Rack Features · Side Panels | (2) Solid, removable and lockable |
| Rack Features · Mounting | Wall mount |
| Rack Features · Fan Module | (2) Pre-installed |
| Rack Features · Thermal Sensor Switch | Sensor OFF (Switch Pop-Up) / The fan module operates continuously when the power cable is connected. / / Sensor ON (Switch Drop-Down) / The fan module activates automatically when the internal cabinet temperature exceeds 35°C (95°F). |
| Rack Features · Cable Entry Opening | Rear wall: 300 x 60 mm (11.8 x 2.4") / Bottom: 318 x 53.5 mm (12.5 x 2.1") |
| Rack Features · Security | (1) Front door lock / (2) Side panel locks / (3) Keys |
| Rack Features · Standard | CE; EIA/ECA-310-E; RoHS |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model UACC-Rack-12U-Wall-Slim · Ubiquiti's spec sheet
