UBB Ubiquiti UniFi Building-to-Building Bridge

$999.17 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

1.7+ Gbps bi-directional Plug and Play 60 GHz Bridge with 5 GHz Radio Redundancy, UniFi Application Management, and range of up to 500 m UBB - 1 x RJ45 1 Gb/s Port

UniFi® Building-to-Building Bridge is the ideal solution for short-range, high-throughput connectivity. Integration with the UniFi application makes bridging two networks seamless.

As a pack of two radios, UniFi Building-to-Building Bridge contains everything you need to get up and running within minutes. Enjoy simple, easy-to-use gigabit connectivity anywhere.

Features:

A 60 GHz wireless point-to-point bridge.

500 m (1,640 ft) maximum range

60 GHz & 5 GHz dual-radio redundancy

Includes PoE power adapters

Built-in LED alignment indicators

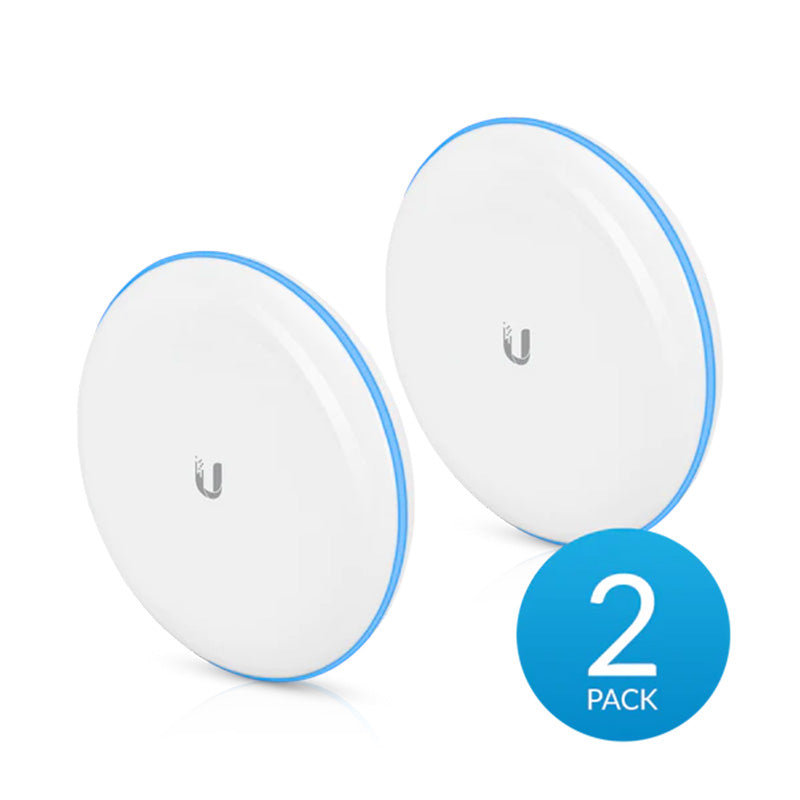

Sold as 2-pack

_{Note. Cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.}

Frequently asked questions5 questions

What is the UniFi Building-to-Building Bridge used for?

It is a 60 GHz wireless point-to-point bridge for short-range, high-throughput links between two buildings or networks. It delivers up to 1.7 Gbps and has a maximum range of 500 m (1,640 ft).

Does it keep working if the 60 GHz link is disrupted?

Yes. It has dual-radio redundancy, with a 60 GHz main radio and a 5 GHz backup radio. The 5 GHz radio supports speeds up to 866.6 Mbps (BW80).

Can I set it up without a UniFi controller?

No. It cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.

How is it powered, and what ports does it have?

It is powered over PoE (44–57V DC, 11W maximum) and includes PoE power adapters. Each radio has one 1 Gb/s RJ45 port, and it is sold as a 2-pack.

Is it suitable for outdoor mounting?

Yes. It is rated IPX6 and has a UV-resistant polycarbonate enclosure. It operates from -40 to 70° C and can be mounted on a wall or pole, with built-in LED alignment indicators to help line up the pair.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications36 specifications · 3 sections

Overview
Dimensions	⌀140 x 90 mm / (⌀5.5 x 3.5")
WiFi Standard	WiFi 5
Spatial Streams	2
Coverage Area	500 m (1,640 ft)
Uplink	GbE
Mounting Locations	Wall, pole
Weatherproofing	IPX6
Power Method	PoE
Performance
MIMO · 5 GHz	2 x 2 (DL MU-MIMO)
Max. Data Rate · 60 GHz	1.7 Gbps
Max. Data Rate · 5 GHz	866.6 Mbps (BW80)
Antenna Gain · 60 GHz	17.2 dBi
Antenna Gain · 5 GHz	10 dBi
Antenna Gain · 2.4 GHz	2 dBi (BLE)
Max. TX Power · 60 GHz	19 dBm
Max. TX Power · 5 GHz	25 dBm
Supported Data Rates · 802.11ac (WiFi 5)	6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
Supported Data Rates · 802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Supported Data Rates · 802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security	WPA2 AES
Hardware
Max. Power Consumption	11W
Supported Voltage Range	44–57V DC

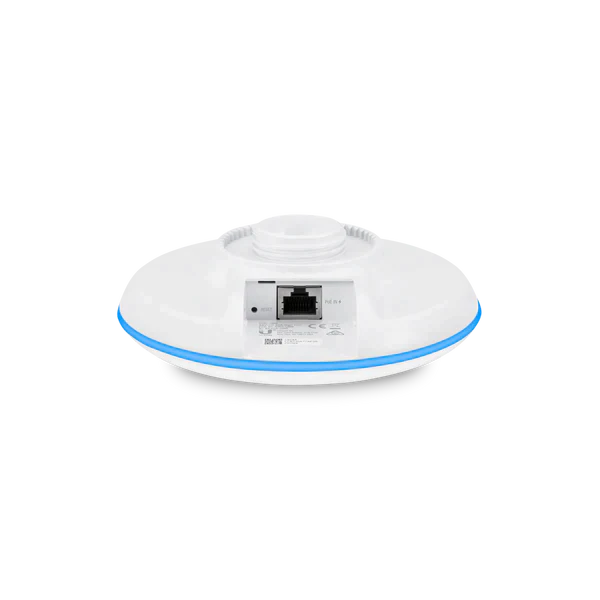

Networking Interface	(1) GbE RJ45 port
Weight	376 g (13.3 oz)
Operating Modes	PtP
Wind Loading	56 N at 200 km/h (12.6 lbf at 125 mph)
Management	Ethernet / Bluetooth
Channel Bandwidth	Main radio (60 GHz): 1,080/2,160 MHz / Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz
Enclosure Material	UV-resistant polycarbonate
Button	(1) Factory reset
LEDs · System	R/G/B
Operating Frequency	Main radio (60 GHz): 57 - 66 GHz / Backup radio (5 GHz): / US/CA / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / / Worldwide / 5150 - 5850 MHz
Bluetooth (MHz)	Worldwide: 2400 - 2483.5 MHz
Ambient Operating Temperature	-40 to 70° C (-40 to 158° F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
