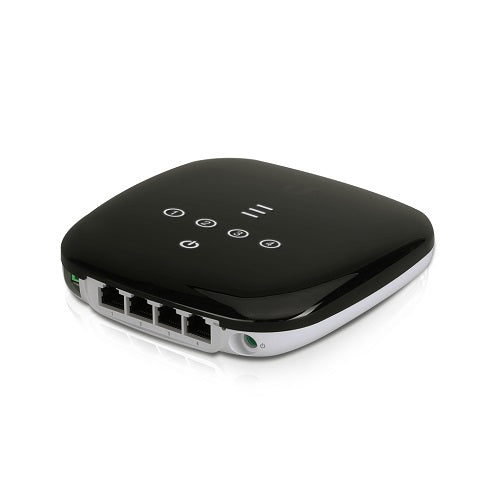

UF-WIFI Ubiquiti UFiber GPON WiFi Router
We do not hold this locally right now, but it is in stock in New Zealand and the UK. Contact us and we will tell you what is possible.
Description
Description
UFiber WiFi is a robust, high‐performance GPON CPE that offers routing, four LAN ports, and WiFi. It is powered by 24V passive PoE or a 24V, 0.5A power adapter.
Features:
High-Performance GPON CPE
Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream
Supports up to 20 km GPON Links
Powerful Layer 2/3 Management Features

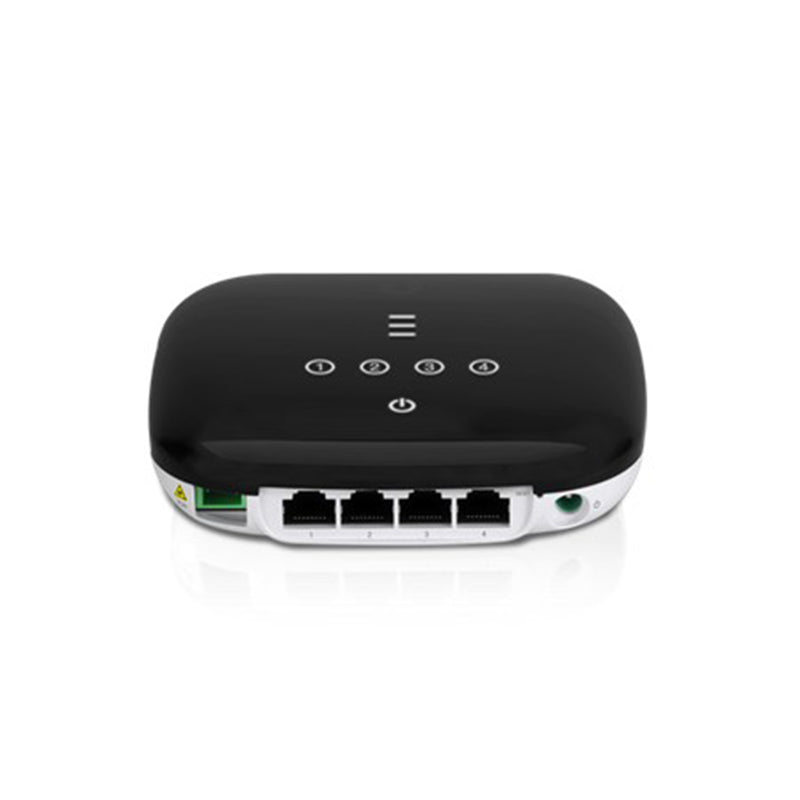

(1) GPON WAN Port
(4) RJ45 Gigabit LAN Port
Powered via supplied PSU or passive PoE
WiFi 802.11n with internal antennas
Frequently asked questions5 questions
What is the UF-WIFI used for?
What are the speed and range figures for the GPON link?
How is the UF-WIFI powered?
What ports and WiFi does it have?
What wireless security options does it support?
Specifications35 specifications · 4 sections
| Mechanical | |
|---|---|
| Dimensions | 126.3 x 126.1 x 31.7 mm / (5 x 5 x 1.3") |
| Weight | 190 g (6.7 oz) |
| Enclosure Materials | UV-stabilized polycarbonate |
| Hardware | |
| Networking Interface | (1) SC/APC, ITU-G.984 GPON WAN port / (4) GbE RJ45 LAN ports / WiFi 802.11n |
| Management | Ethernet In-Band / PON |
| Power Method | DC jack, 24V DC / 24V passive PoE (Pins 4, 5+; 7, 8-) |
| Power Supply | Universal AC/DC adapter, 100–240V AC, 50/60 Hz, 24V/0.5A |
| Supported Voltage Range | 10–30V DC (Passive PoE) / 24V DC (Adapter) |
| Max. Power Consumption | 7W |
| Normal Range of Optical Module | TX: 1.5 to 5 dBm / RX: -8 to -28 dBm |
| Total Non-Blocking Line Rate | Downstream: 2.5 Gbps / Upstream: 1.2 Gbps |
| Max. TX Power · 2.4 GHz | 20 dBm |
| MIMO · 2.4 GHz | 2 x 2 |
| Throughput · 2.4 GHz | 300 Mbps |
| Antenna Gain · 2.4 GHz | 1 dBi |
| LEDs · PON Status | (3) Signal LEDs / All off: Bootup / 1x red: Signal too low (< -28 db) / 1x white: Signal low (>= -28 db) / 2x white: Signal good (>= -25 db) / 3x white: Signal strong (>= -11 db) / 1x red + 2x white: Signal too strong (>= -8 db) / 3x red: No signal / LEDs alternate between 3x red and a signal strength indicator: No authority |
| LEDs · Ethernet | Steady white: Link up / Blinking white: Activity / Off: Link down |
| LEDs · Power | White: On |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -10 to 45° C (14 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Fiber | |
| Optical Interface Nominal Bitrate | Downstream: 2.5 Gbps / Upstream: 1.2 Gbps |
| Line Code | Scrambled NRZ |
| Operating Wavelength | TX: 1310 nm / RX: 1490 nm |
| Max. Range | 20 km |
| Software | |
| Mode | ONU/ONT layer 2/3 Ethernet switch |
| Services | Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features |
| Utilities | Dashboard, monitoring, alarms, and logs / Remote reset, remote reboot, remote firmware upgrade, VLAN support |
| Security | GEM port encryption |
| WiFi Standards | 802.11 b/g/n |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Supported Data Rates · 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Supported Data Rates · 802.11b | 1, 2, 5.5, 11 Mbps |
