UF-WIFI6 Ubiquiti UFiber WiFi6 GPON CPE

Q: What ports does it have?

It has one GPON WAN port (SC\/APC, ITU-G.984) to connect a local fibre line and four GbE RJ45 LAN ports. WiFi is provided by internal 802.11ax antennas on the 2.4 GHz and 5 GHz bands.

Q: What WiFi speeds and standards does it support?

It is a 2x2 WiFi 6 device supporting 802.11 b\/g\/n\/ac\/ax. The 5 GHz band has a 1.2 Gbps radio rate and the 2.4 GHz band has a 300 Mbps radio rate.

Q: What management and security features are available?

It operates as an ONU\/ONT Layer 2\/3 Ethernet switch with web server, telnet, NAT, bridging and routing, firewall features and VLAN support. Remote reset, reboot and firmware upgrade are supported, with GEM port encryption on the PON link.

$211.28 AUD

In stock · Last fewShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Description

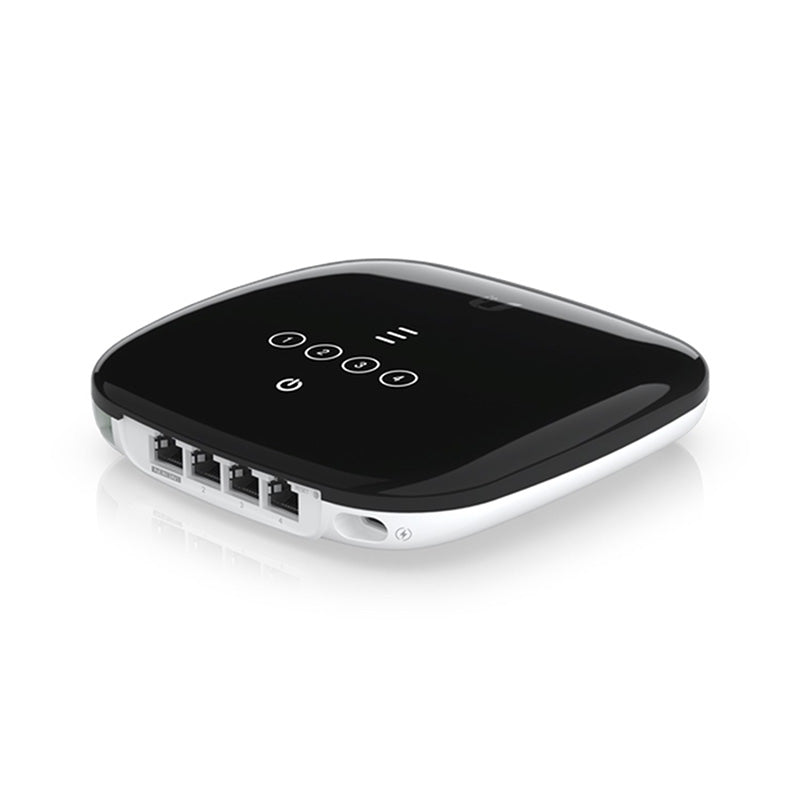

The UFiber WiFi6 GPON CPE (UF WiFi6) is a point-to-multipoint WiFi 6 device that creates high-speed GPON connections capable of reaching a 2.4 Gbps downstream rate and 1.2 Gbps upstream rate.

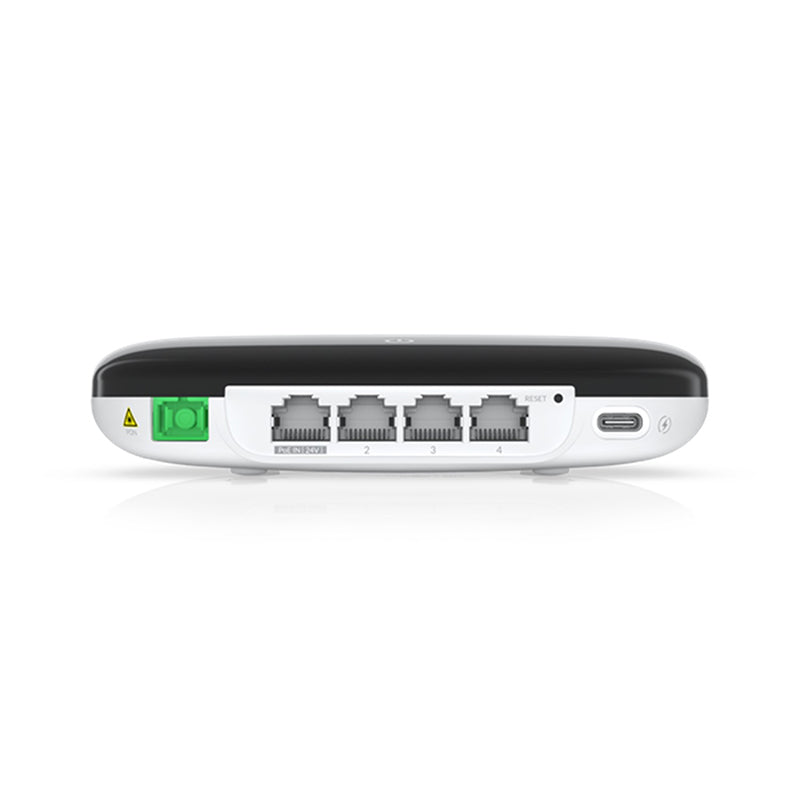

The UF WiFi6 has (4) GbE RJ45 LAN ports and (1) GPON WAN port to connect a local fiber line. It also excels at establishing reliably strong, long-distance fiber links up to 20 kilometers, allowing you to extend your service range and build your customer base.

Features:

2x2, high-efficiency WiFi 6
2.4 GHz band (2x2 MIMO) with a 300 Mbps radio rate
5 GHz band (2x2 MU-MIMO and OFDMA) with a 1.2 Gbps radio rate
2.4 Gbps max downstream line rate
1.2 Gbps max upstream line rate
Establishes GPON links up to 20 km
Powerful Layer 2/3 management features
(1) GPON WAN port
(4) GbE RJ45 LAN ports
Powered with the included power adapter or passive PoE
Internal WiFi 6 (802.11ax) antennas

Frequently asked questions5 questions

What is the UFiber WiFi6 GPON CPE used for?

It is a point-to-multipoint WiFi 6 device that creates GPON connections with a maximum line rate of 2.4 Gbps downstream and 1.2 Gbps upstream. It can establish fibre links up to 20 km, which suits extending service range.

What ports does it have?

It has one GPON WAN port (SC/APC, ITU-G.984) to connect a local fibre line and four GbE RJ45 LAN ports. WiFi is provided by internal 802.11ax antennas on the 2.4 GHz and 5 GHz bands.

How is the UF-WIFI6 powered?

It can be powered by the included 5V DC, 3A power adapter with a 1.5 m cord, or by 24V passive PoE (2-pair). Maximum power consumption is 11W.

What WiFi speeds and standards does it support?

It is a 2x2 WiFi 6 device supporting 802.11 b/g/n/ac/ax. The 5 GHz band has a 1.2 Gbps radio rate and the 2.4 GHz band has a 300 Mbps radio rate.

What management and security features are available?

It operates as an ONU/ONT Layer 2/3 Ethernet switch with web server, telnet, NAT, bridging and routing, firewall features and VLAN support. Remote reset, reboot and firmware upgrade are supported, with GEM port encryption on the PON link.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications41 specifications · 4 sections

Mechanical
Dimensions	140.8 x 141.5 x 31.7 mm / (5.5 x 5.6 x 1.3")
Weight	415 g (14.6 oz)
Enclosure Materials	UV-stabilized polycarbonate
Hardware
Networking Interface	(1) SC/APC, ITU-G.984 GPON WAN port / (4) GbE RJ45 LAN ports / WiFi 802.11ax 5/2.4 GHz channels
Management	Ethernet In-Band / PON
Power Method	USB-C 5V DC, 3A / 24V passive PoE, 0.5A
Power Supply	5V DC, 3A power adapter, 1.5 m cord (Included) / Passive PoE 2-pair (4, 5+; 7, 8-)
Supported Voltage Range	10–30V DC (Passive PoE) / 5V DC (Adapter)
Max. Power Consumption	11W
Normal Range of Optical Module	TX: 0.5 to 5 dBm / RX: -8 to -28 dBm
Total Non-Blocking Line Rate	Downstream: 2.5 Gbps / Upstream: 1.2 Gbps
Max. TX Power · 5 GHz	20 dBm
Max. TX Power · 2.4 GHz	20 dBm
MIMO · 5 GHz	2 x 2
MIMO · 2.4 GHz	2 x 2
Throughput · 5 GHz	1.2 Gbps
Throughput · 2.4 GHz	300 Mbps
Antenna Gain · 5 GHz	3 dBi
Antenna Gain · 2.4 GHz	1 dBi

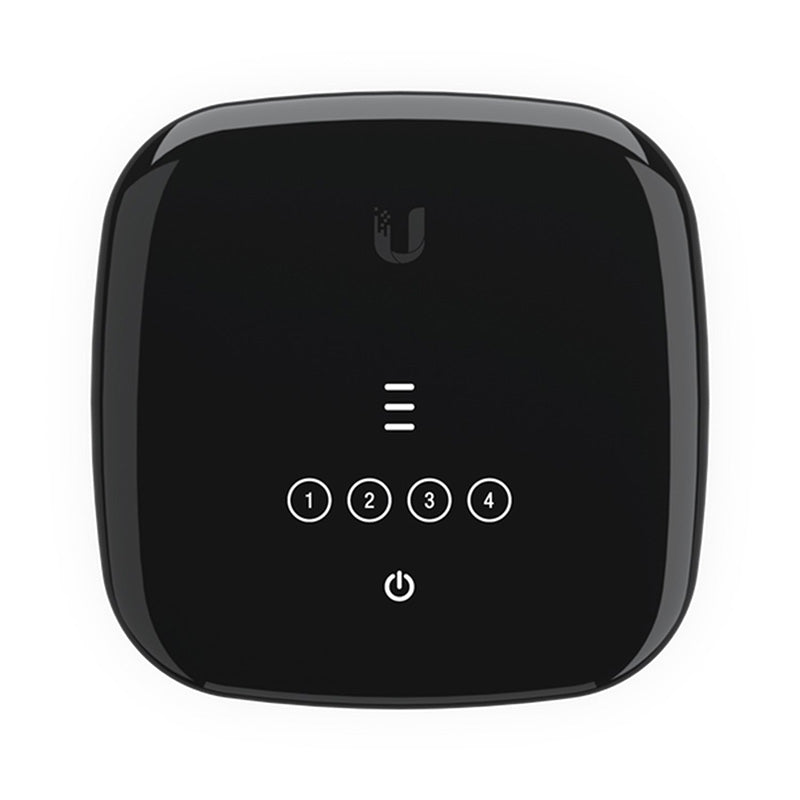

LEDs · PON Status	(3) Signal LEDs / All of: Bootup / 1x orange: Signal too low (< -28 db) / 1x white: Signal low (>= -28 db) / 2x white: Signal good (>= -25 db) / 3x white: Signal strong (>= -11 db) / 1x orange + 2x white: Signal too strong (>= -8 db) / 3x orange: No signal / LEDs alternate between orange + white + orange and a signal strength indicator: No authority
LEDs · Ethernet	Steady white: Link up / Blinking white: Activity / Off: Link down
LEDs · Power	White: On
Button	(1) Factory reset
Ambient Operating Temperature	-15 to 45° C (5 to 113° F)
Ambient Operating Humidity	10 to 90% noncondensing
Certifications	FCC, IC, CE
Fiber
Optical Interface Nominal Bitrate	Downstream: 2.5 Gbps / Upstream: 1.2 Gbps
Line Code	Scrambled NRZ
Operating Wavelength	TX: 1310 nm / RX: 1490 nm
Max. Range	20 km
Software
Mode	ONU/ONT layer 2/3 Ethernet switch
Services	Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features
Utilities	Dashboard, monitoring, alarms, and logs / Remote reset, remote reboot, remote firmware upgrade, VLAN support
Security	GEM port encryption
WiFi Standards	802.11 b/g/n/ac/ax
Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES)
Supported Data Rates · 802.11ax (WiFi 6)	8.6 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80)
Supported Data Rates · 802.11ac (WiFi 5)	6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
Supported Data Rates · 802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Supported Data Rates · 802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
Supported Data Rates · 802.11b	1, 2, 5.5, 11 Mbps
