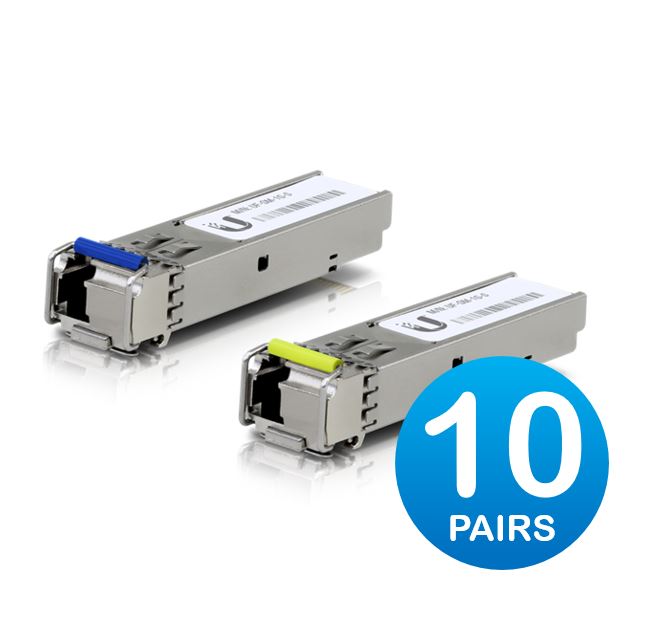

UACC-OM-SM-1G-S-20 Ubiquiti UFiber BiDi Single-Mode 1G Module 10-Pairs

$410.26 AUD

Not in stock locally

In stock inUnited Kingdom

We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.

Description

Single-mode, simplex, fiber transceiver module 20 Pack

The 1 Gbps Bidirectional Single-mode Optical Module is a simplex transceiver that delivers up to 1.25 Gbps speed over distances up to 3 kilometers.

Features:

Supported Media: Single-Mode Fiber
Connector Type: 1x LC
TX Wavelength: 1310 nm Blue 1550nm Yellow
RX Wavelength: 1550 nm Blue 1310nm Yellow
Data Rate: 1.25 Gbps SFP+
Cable Distance: 3 km

Frequently asked questions4 questions

What type of fibre does this module work with?

It supports single-mode fibre and uses a single LC connector. As a simplex bidirectional module, it transmits and receives over one fibre strand.

What speed and distance does it support?

It delivers up to 1.25 Gbps over distances of up to 3 kilometres.

What are the transmit and receive wavelengths?

The blue module transmits at 1310 nm and receives at 1550 nm. The yellow module transmits at 1550 nm and receives at 1310 nm, so the two colours work as a matching pair.

How many modules are in the pack?

This is a 20-pack, supplied as 10 pairs. Each pair consists of one blue and one yellow module, as the TX and RX wavelengths are opposite for each colour.

Click HERE to access the Datasheet

Specifications11 specifications · 1 sections

Overview
Form Factor	SFP
Connector	Simplex LC UPC
Supported Media	Single-Mode Fiber
TX Wavelength	1310 / 1550 nm
RX Wavelength	1550 / 1310 nm
Supported Data Rate	1 Gbps
Supported Cable Distance	3 km (1.9 mi)
Max. Power Consumption	0.66 W
Pack Options	2-Pack / 20-Pack
Ambient Operating Temperature	0 to 70° C (32 to 158° F)
WARNING	CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 / Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
