UISP-S Ubiquiti UISP Switch

$202.96 AUD

10 in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Description

Gigabit PoE switch for MicroPoP applications.

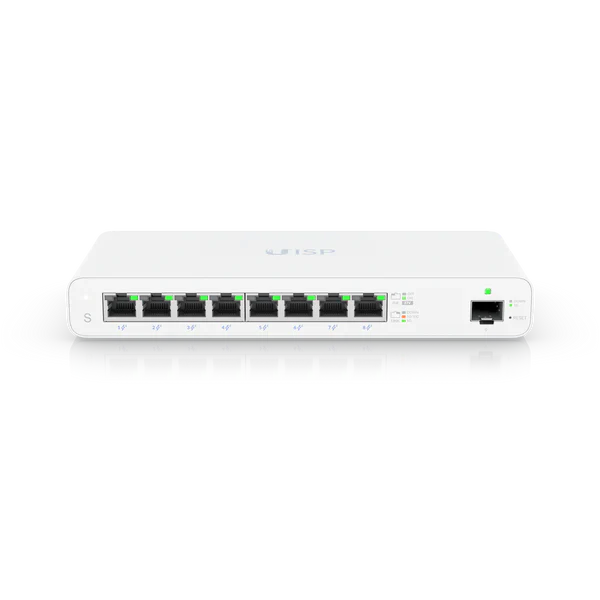

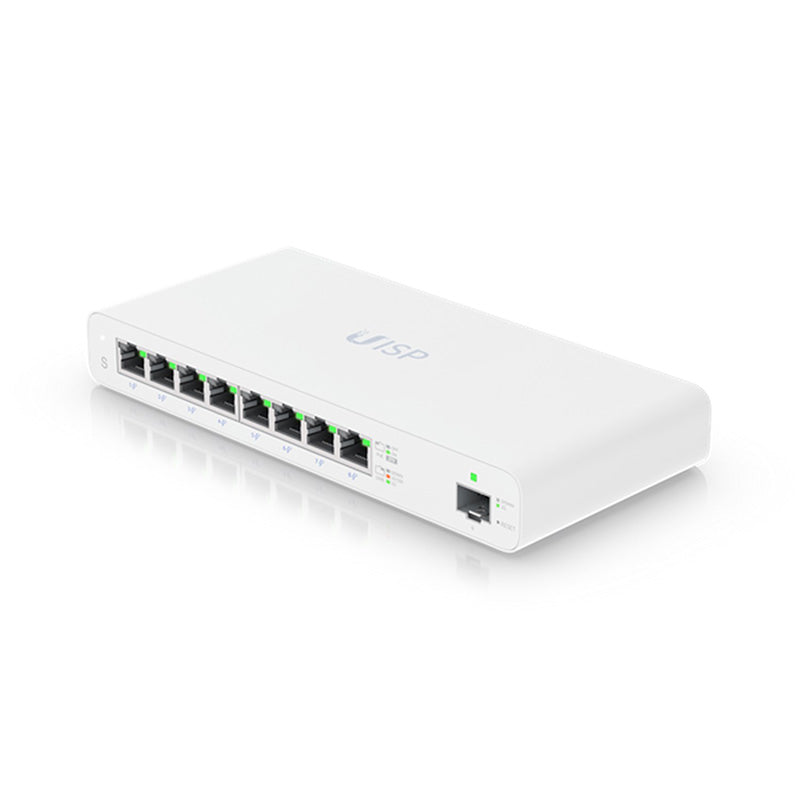

Ideal for wireless ISP (WISP) deployments, the UISP™ Switch is a fanless, Layer 2 PoE switch with (8) GbE RJ45 ports and (1) 1G SFP port for an additional fiber uplink option.

The UISP Switch is a cost-effective solution for WISPs looking to quickly and inexpensively deliver Gigabit wireless speeds to their customers.

With its hefty 110W total PoE supply, the UISP Switch delivers substantial power to every radio in your service network. For larger deployments, pair it with the UISP Console to create a cohesive routing and switching hub.

The UISP Switch is managed with the UISP application, a centralized platform where you can monitor and manage all of your UISP devices.

Features:

(8) GbE RJ45 ports with 27V passive PoE that support 2-pair and 4-pair modes
(1) 1G SFP port110W PoE supply when powered with the included AC/DC adapter
Fanless, thermal cooling for silent operation

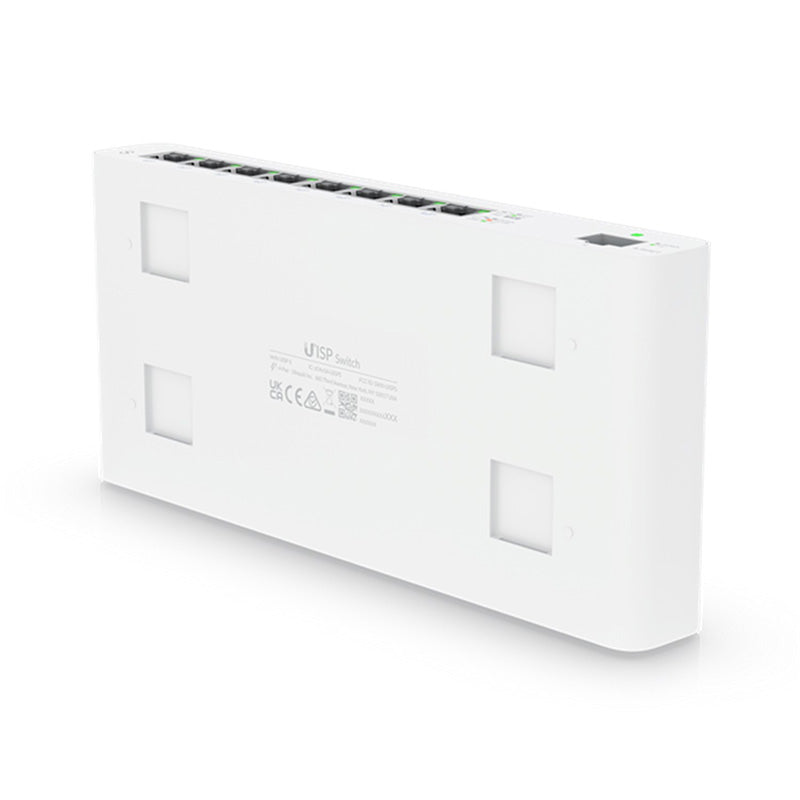

Wall-mountable (kit included)
Layer 2 switching features
Easy, Bluetooth-powered setup via the UISP Mobile app

Frequently asked questions5 questions

What is the UISP-S Ubiquiti UISP Switch designed for?

It is a fanless, Layer 2 PoE switch aimed at wireless ISP (WISP) and MicroPoP deployments, delivering Gigabit connectivity and power to radios in a service network.

What ports does the UISP Switch have?

It has eight GbE RJ45 ports and one 1G SFP port, which gives you an additional fibre uplink option.

How much PoE power does the UISP Switch provide?

It supplies 110W of total PoE when powered with the included AC/DC adapter. The eight RJ45 ports use 27V passive PoE and support both 2-pair and 4-pair modes.

How is the UISP Switch set up and managed?

Setup is done over Bluetooth using the UISP Mobile app. Ongoing monitoring and management take place in the UISP application, a centralised platform for all your UISP devices.

Is the UISP Switch silent, and can it be wall-mounted?

Yes to both. It uses fanless thermal cooling for silent operation, and a wall-mount kit is included.
