UMA-D Ubiquiti UniFi Access Point Mesh Dual-Band Antenna

$178.64 AUD

14 in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane, Melbourne and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

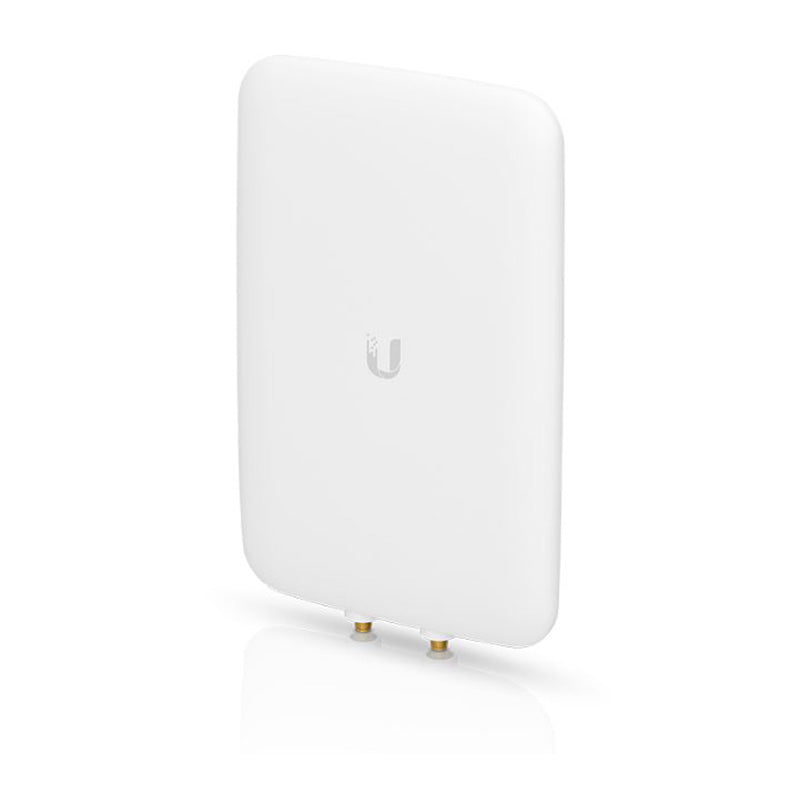

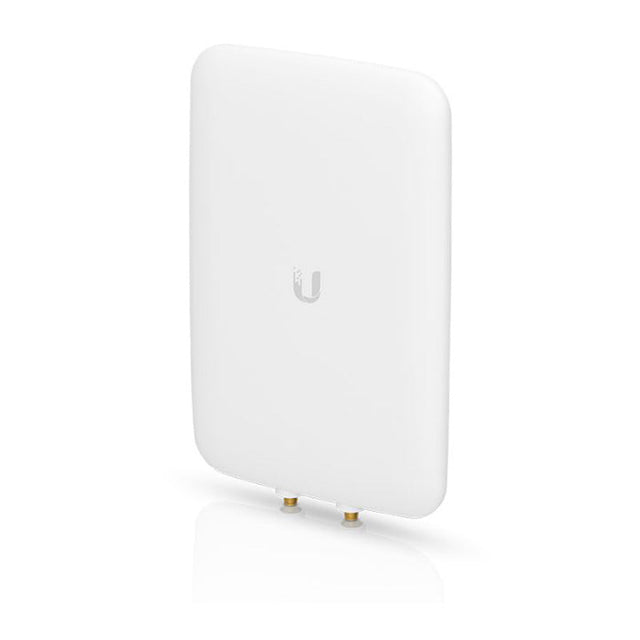

The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi® AC Mesh AP, model UAP-AC-M.

With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping.

Antenna Features Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.

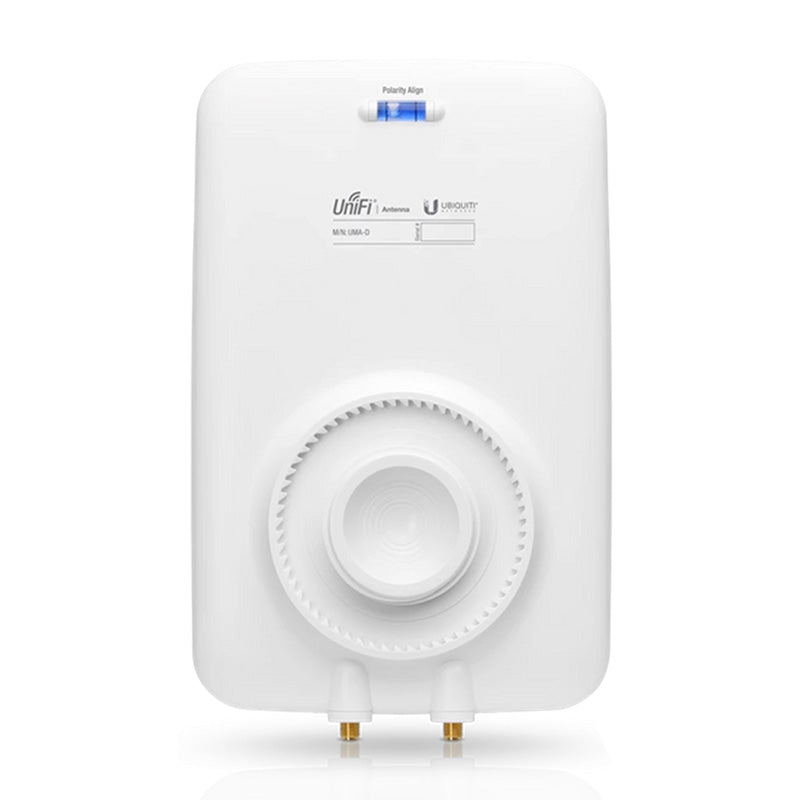

Weather-Resistant Enclosure Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors. The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.

The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.

Features:

Outdoor Weather-Resistant Enclosure
High Efficiency Directional Radiation Pattern
Dual-Band, Dual-Polarity Optimized for 802.11ac
Ball Joint 3-Axis Mount for Precise Aiming
Wall/Poll Mount Included for Versatile Installation

Frequently asked questions5 questions

What is the UMA-D designed to work with?

The UMA-D is an optional mesh antenna for the UniFi AC Mesh AP, model UAP-AC-M. It is a connectorized antenna that is compatible with the UAP-AC-M and extends range coverage while shaping the radiation pattern.

Which frequency bands and gain does it support?

It is dual-band, covering 2.4–2.5 GHz and 5.1–5.9 GHz, and is optimised for 802.11ac. Gain is 10 dBi at 2.4 GHz and 15 dBi at 5 GHz, with a directional radiation pattern and dual-linear polarisation.

Can the UMA-D be used outdoors?

Yes. It is housed in a UV-stabilised plastic enclosure, so it can be used indoors or outdoors.

How is the UMA-D mounted and aimed?

It has a 3-axis ball joint mount for precise aiming, and a wall/pole mount is included. It weighs 400 g without the mount and 480 g with it.

What connectors and dimensions does the UMA-D have?

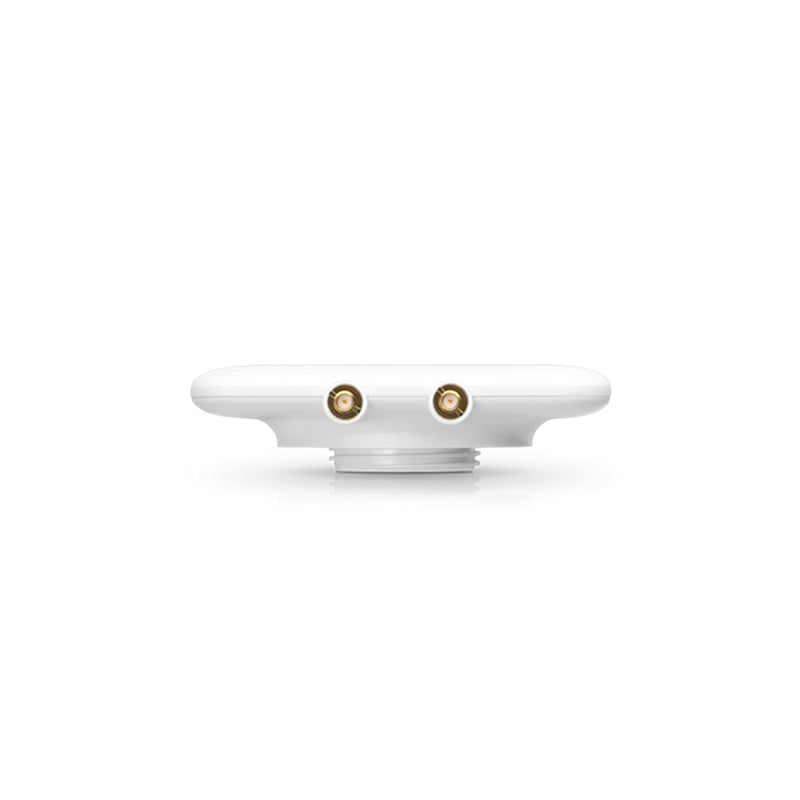

It has two RP-SMA RF connections and measures 201.3 x 128 x 32.5 mm (7.9 x 5 x 1.3").

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications18 specifications · 2 sections

Mechanical
Dimensions	201.3 x 128 x 32.5 mm / (7.9 x 5 x 1.3")
Weight	Without mount: 400 g (0.9 lb) / With mount: 480 g (1.1 lb)
Enclosure Material	Outdoor UV-stabilized plastic
Hardware
Supported Frequency Range	2.4–2.5 GHz / 5.1–5.9 GHz
RF Connections	(2) RP-SMA
Gain · 5 GHz	15 dBi
Gain · 2.4 GHz	10 dBi
HPOL Beamwidth · 5 GHz	45°
HPOL Beamwidth · 2.4 GHz	90°
VPOL Beamwidth · 5 GHz	45°
VPOL Beamwidth · 2.4 GHz	90°
Elevation Beamwidth · 5 GHz	45°
Elevation Beamwidth · 2.4 GHz	90°
Max VSWR	2:1
Polarization	Dual-linear
Cross-Pol Isolation · 5 GHz	30 dB
Cross-Pol Isolation · 2.4 GHz	25 dB
Certifications	Anatel: 06187-19-08356
