Manufacturer's photos. Where a power lead is pictured, an AU one is provided.

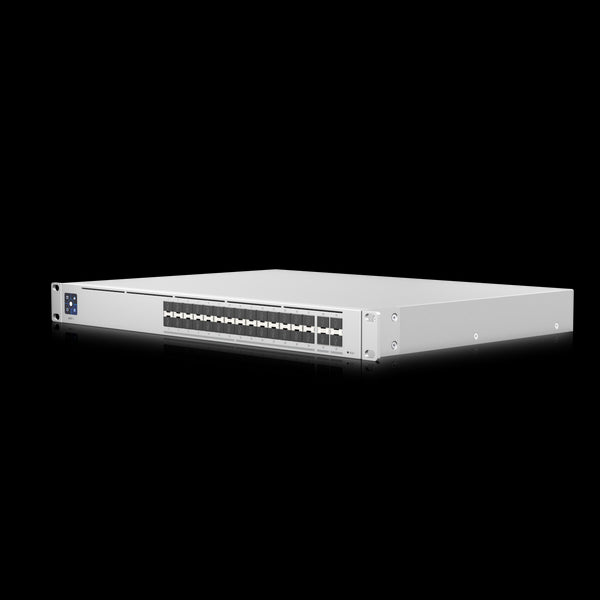

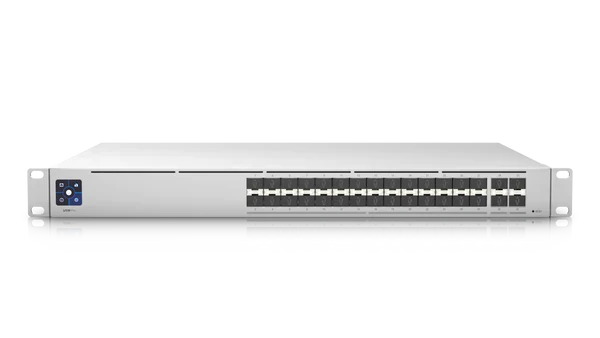

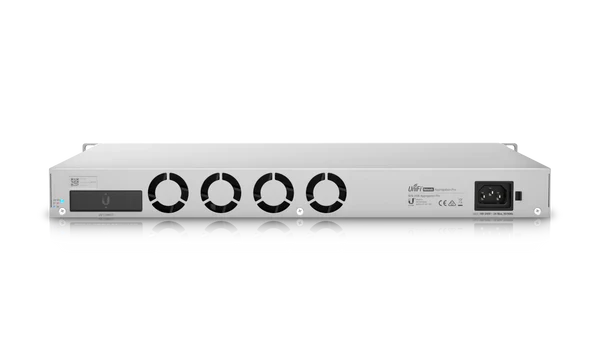

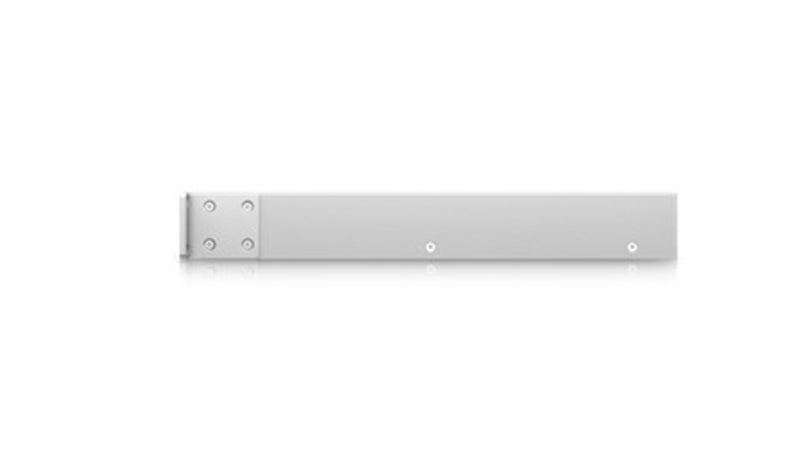

USW-Pro-Aggregation Ubiquiti UniFi Switch Pro Aggregation
We do not hold this locally right now, but it is in stock in New Zealand. Contact us and we will tell you what is possible.
Description
Description
Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports.
The Switch Pro Aggregation is a fully managed, Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports designed to enhance your network's switching capacity and performance by creating high-bandwidth aggregation links.
This rack-mountable switch also offers 760 Gbps switching capacity and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. Additionally, the Switch Pro Aggregation offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately).
This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
(1) 1.3” LCM color touchscreen with AR switch management
(28) 10G SFP+ ports
(4) 25G SFP28 ports
(1) USP RPS DC input
760 Gbps switching capacity
Layer 3 switching features
Managed with the UniFi Network application: Version 6.1.25 and later
Frequently asked questions5 questions
What ports does the USW-Pro-Aggregation have?
What is this switch designed for?
What is the switch's performance and capacity?
How is the USW-Pro-Aggregation powered, and does it support power redundancy?
How do I manage it, and will it fit my rack?
Specifications31 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442 x 325 x 44 mm / (17.4 x 12.8 x 1.7") |
| Port Layout · 10G SFP+ | 28 / (10G/1G) |
| Port Layout · 25G SFP28 | 4 / (25G/10G/1G) |
| Redundancy | DC Power Backup |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 760 Gbps |
| Total Non-Blocking Throughput | 380 Gbps |
| Forwarding Rate | 565 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 4 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| Max. Power Consumption | 100W |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 100W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 341 BTU/hr |
| Weight | Without mounting brackets: 4.6 kg (10.1 lb) / With mounting brackets: 4.7 kg (10.4 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm / (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 20756-22-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 6.1.25 and later |
