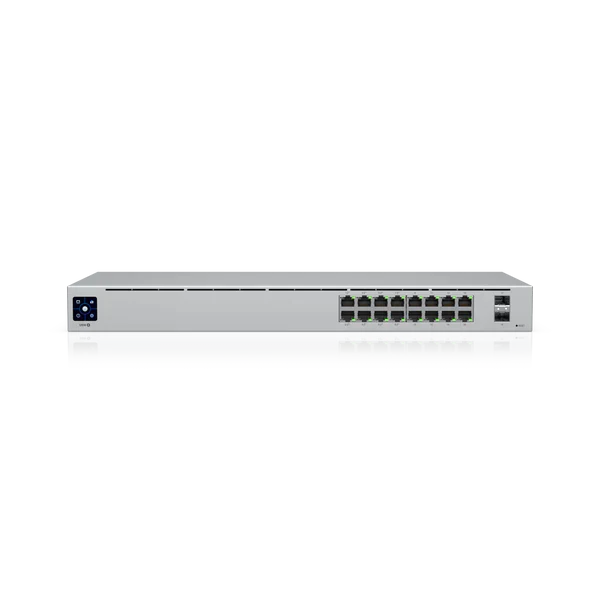

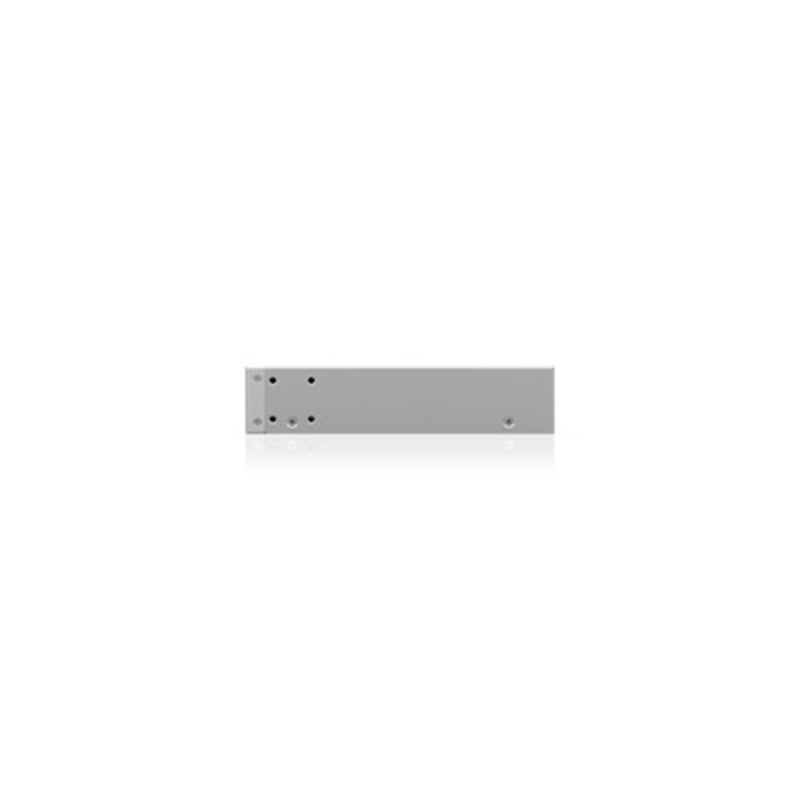

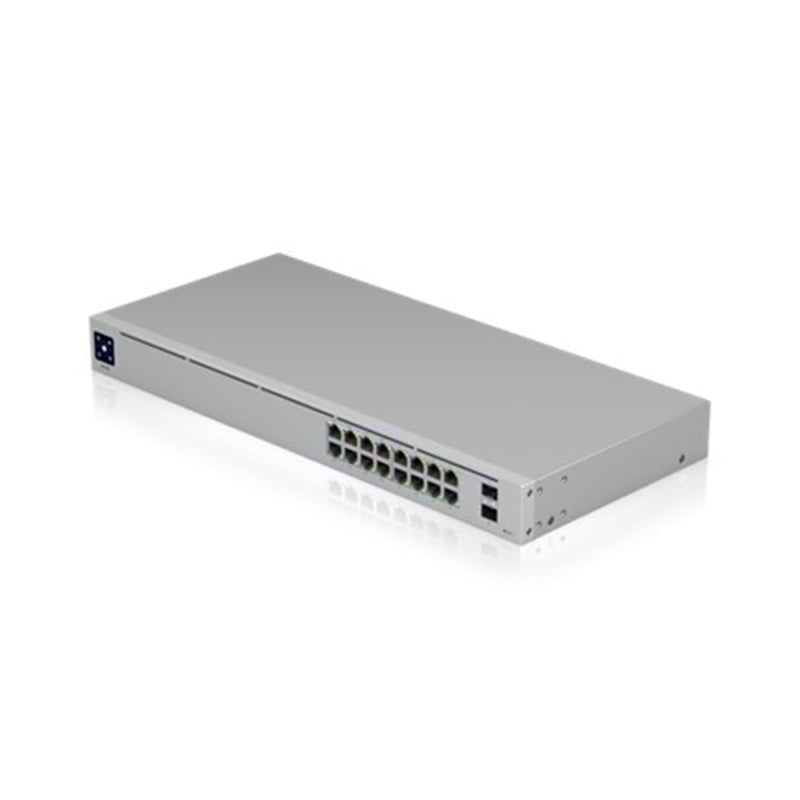

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
USW-16-POE
USW-16-PoE Ubiquiti UniFi Switch 16 PoE
$585.45 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
Layer 2, PoE switch with (16) GbE RJ45 ports, including (8) PoE+ ports, and (2) 1G SFP ports.
The Switch 16 PoE (USW 16 PoE) is a fully managed switch with (16) GbE RJ45 ports, including (8) GbE, PoE+ ports, and (2) 1G SFP ports.
The versatile USW 16 PoE provides Gigabit PoE links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network. The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, with its 7.9" depth, it's easy to mount this compact, fanless switch in a SOHO rack cabinet. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
(1) 1.3" LCM color touchscreen with AR switch management
(8) GbE, PoE+ RJ45 ports
(8) GbE RJ45 ports
(2) 1G SFP ports
42W total PoE supply
Fanless, silent cooling
Managed with the UniFi Network application: Version 5.11.27 and later
Frequently asked questions5 questions
How many ports does the USW-16-PoE have and which ones support PoE?
It has 16 Gigabit RJ45 ports, 8 of which are PoE+ ports, plus 2 1G SFP ports. The RJ45 ports support 1G, 100M and 10M speeds.
How much PoE power can this switch supply?
Total PoE availability is 42W across the 8 PoE+ ports. Each port supports up to PoE+ output, with 15.4W for PoE and 32W for PoE+.
How do I manage the USW-16-PoE?
It is a fully managed Layer 2 switch controlled through the UniFi Network web application and mobile app, so it can be monitored or configured remotely. It also has a 1.3" colour touchscreen showing key system and connection information.
Can it be rack mounted and is it quiet?
Yes, it is a 1U rack-mount switch measuring 442 x 200 x 44 mm, with a supported rack depth of 400 to 1200 mm. Its 7.9" depth suits a SOHO rack cabinet, and cooling is fanless and silent.
What are the switching performance figures?
It offers 36 Gbps switching capacity, 18 Gbps total non-blocking throughput and a 27 Mpps forwarding rate. It supports 1,000 VLANs and an 8,000-entry MAC address table.
Customer reviews
5.0
· 2 reviews
★★★★★Collected by reviews.io · Apr 2023
Excellent service and great people
TheodoreSpecifications34 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442 x 200 x 44 mm / (17.4 x 7.9 x 1.7") |
| Port Layout · 1 GbE RJ45 | 16 (8 PoE+) / (1G/100M/10M) |
| Port Layout · 1G SFP | 2 / (1G) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 42W |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 36 Gbps |
| Total Non-Blocking Throughput | 18 Gbps |
| Forwarding Rate | 27 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 8,000 |
| Packet Buffer Size | 0.5 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| PoE Ports · PoE+ | 8 |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Max. PoE Wattage per Port by PSE · PoE+ | 32W |
| Max. Power Consumption | 18W (Excluding PoE Output) / 60W (Including PoE Output) |
| Power Method | Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 60W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 61.4 BTU/hr |
| Weight | Without mounting brackets: 2.8 kg (6.2 lb) / With mounting brackets 2.9 kg (6.4 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm / (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 00593-21-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 7.2.94 and later |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model USW-16-POE · Ubiquiti's spec sheet
