Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
USW-PRO-24-POE

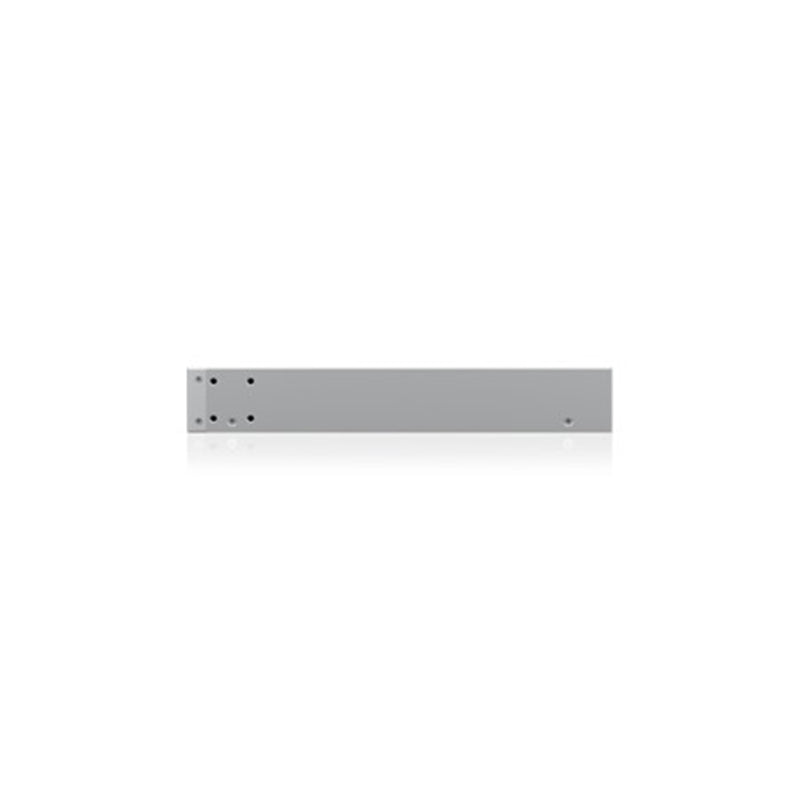

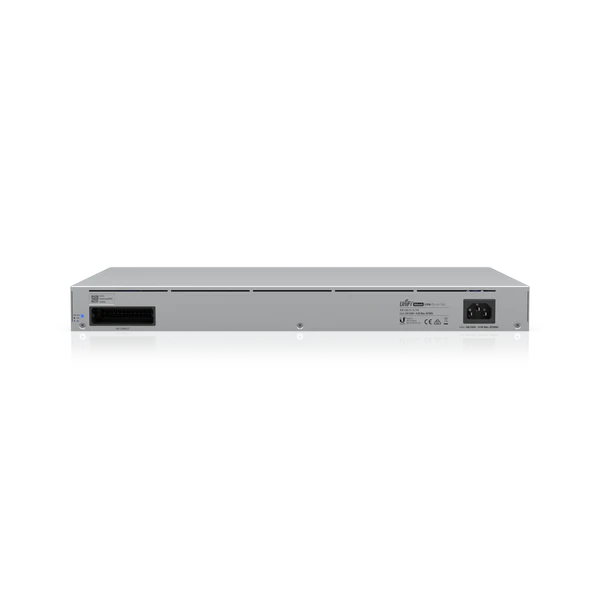

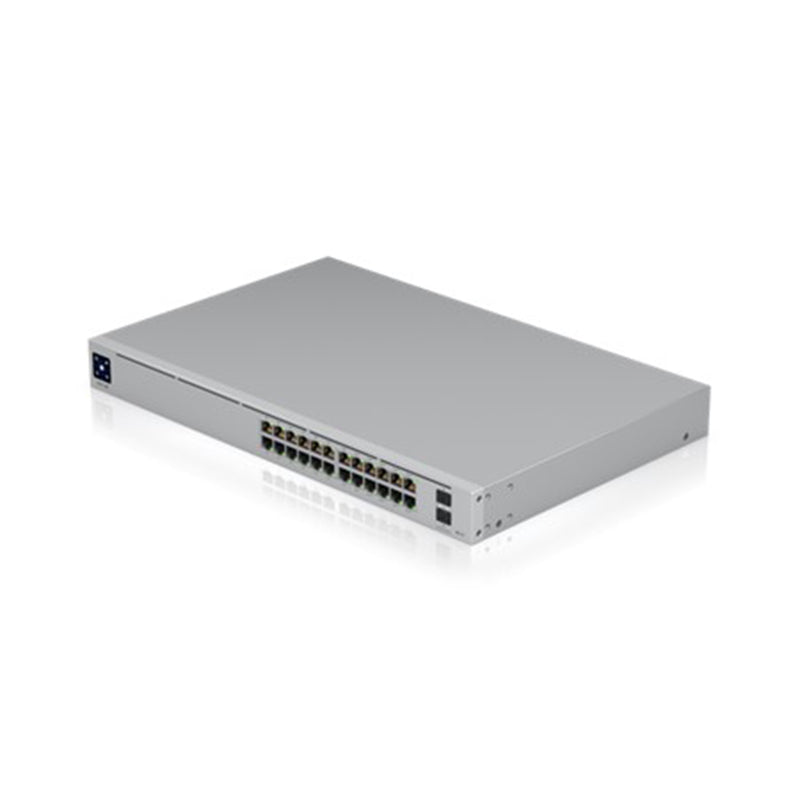

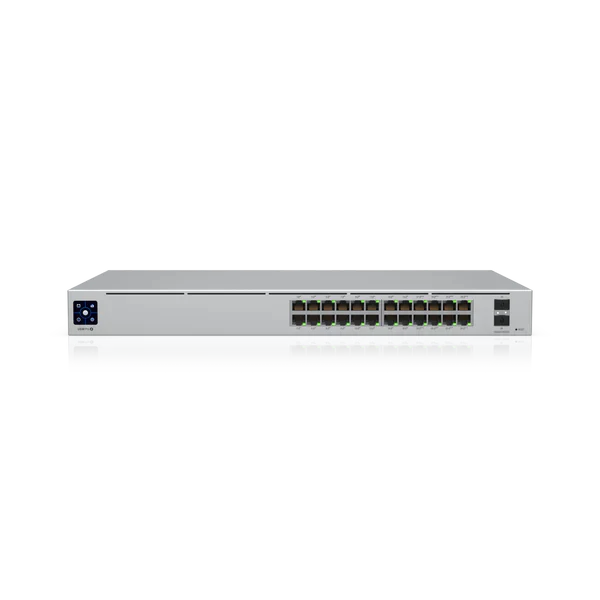

USW-Pro-24-PoE Ubiquiti UniFi Switch Pro 24 PoE
$1,389.47 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
Layer 3, PoE switch with (24) GbE RJ45 ports, including (16) 802.3at PoE+ ports and (8) 802.3bt PoE++ ports, and (2) 10G SFP+ ports.
The Switch Pro 24 PoE (USW Pro 24 PoE) is a fully managed switch with (16) GbE, 802.3at PoE+ RJ45 ports, (8) GbE, 802.3bt PoE++ RJ45 ports, and (2) 10G SFP+ ports. The USW Pro 24 PoE combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server.
The USW Pro 24 PoE is the ideal access layer switch for any UniFi system. It combines up to 400W of PoE power with SmartPower RPS (USP RPS) power redundancy.
The switch can also be monitored and configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
(1) 1.3" LCM color touchscreen with AR switch management
(16) GbE, 802.3at PoE+ RJ45 ports
(8) GbE, 802.3bt PoE++ RJ45 ports
(2) 10G SFP+ ports
(1) USP RPS DC input
400W total PoE supply
Near-silent cooling
Layer 3 switching features
Managed with the UniFi Network application: Version 5.10.5 and later
Frequently asked questions5 questions
How many ports does the USW-Pro-24-PoE have and what types are they?
It has 24 Gigabit RJ45 ports, of which 16 are 802.3at PoE+ and 8 are 802.3bt PoE++. There are also 2 10G SFP+ ports that support 10G and 1G speeds.
How much PoE power can this switch supply?
It provides up to 400W of total PoE power. Individual ports deliver up to 30W on PoE+ ports and up to 60W on PoE++ ports.
Does it offer power redundancy?
Yes. It has a USP RPS DC input, so it can be paired with a SmartPower RPS (USP RPS) for DC power backup. It also has an internal 450W AC/DC power supply with universal 100–240V AC input.
Does this switch support Layer 3 routing?
Yes. It combines Layer 2 features with Layer 3 tools including inter-VLAN routing, static routing and a DHCP server. It supports up to 1,000 VLANs and 2 IPv4 static routes.
How is the USW-Pro-24-PoE managed?
It is managed with the UniFi Network application, version 5.10.5 or later, via the web application or mobile app. It also has a 1.3-inch colour touchscreen with AR switch management.
Customer reviews
5.0
· 2 reviews
★★★★★Collected by reviews.io · Oct 2023
High quality. High performance. Easy to deploy.
GerrySpecifications37 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442 x 285 x 44 mm / (17.4 x 11.2 x 1.7") |
| Port Layout · 1 GbE RJ45 | 24 (16 PoE+; 8 PoE++) / (1G/100M/10M) |
| Port Layout · 10G SFP+ | 2 / (10G/1G) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 400W |
| Redundancy | DC Power Backup |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 88 Gbps |
| Total Non-Blocking Throughput | 44 Gbps |
| Forwarding Rate | 65 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| IPv4 Static Routes | 2 |
| Packet Buffer Size | 2 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| PoE Ports · PoE+ | 16 |
| PoE Ports · PoE++ | 8 |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Max. PoE Wattage per Port by PSE · PoE+ | 30W |
| Max. PoE Wattage per Port by PSE · PoE++ | 60W |
| Max. Power Consumption | 50W (Excluding PoE Output) / 450W (Including PoE Output) |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 450W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 170.6 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 4.3 kg (9.5 lb) / With mounting brackets: 4.4 kg (9.7 lb) |
| Enclosure Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm / (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 13790-20-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 5.10.5 and later |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model USW-PRO-24-POE · Ubiquiti's spec sheet
