USW-24 Ubiquiti UniFi Switch 24

Q: How is the USW-24 powered, and how much power does it use?

It has an internal 36W AC\/DC power supply with a universal 100-240V AC, 50\/60 Hz input. Maximum power consumption is 25W.

$434.30 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

Layer 2 switch with (24) GbE RJ45 ports and (2) 1G SFP ports.

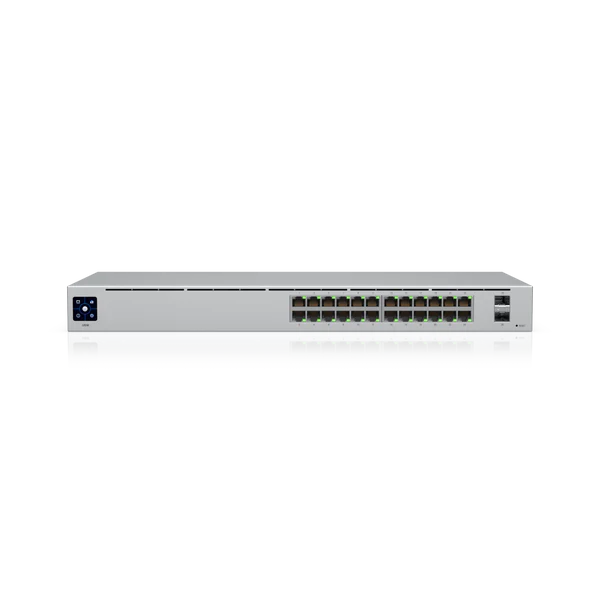

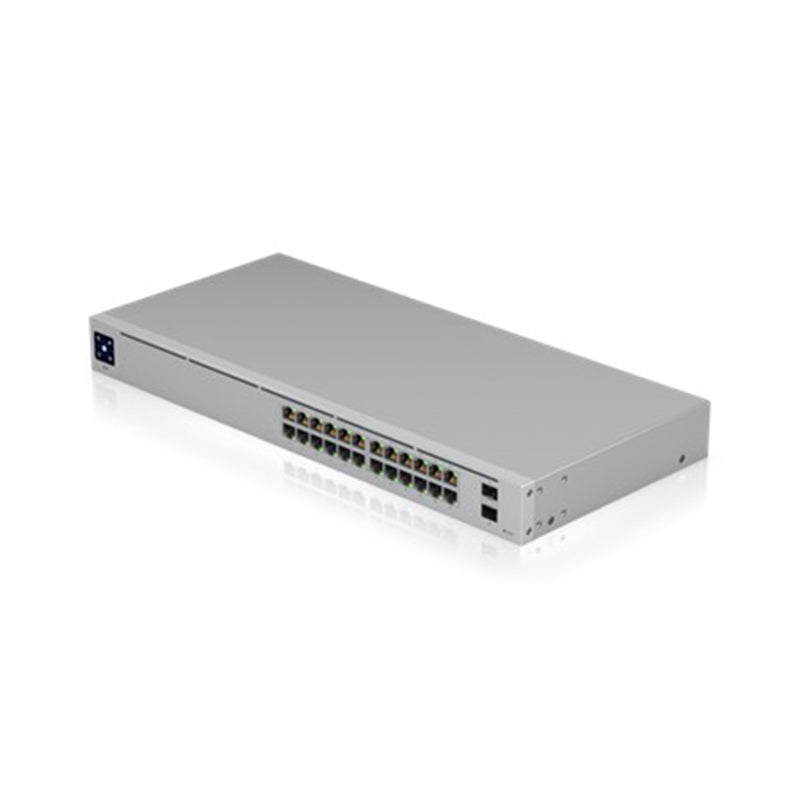

The Switch 24 (USW 24) is a fully managed, fanless switch with (24) GbE RJ45 ports and (2) 1G SFP ports.

The versatile USW 24 provides Gigabit links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network. The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.

This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:

(24) GbE RJ45 ports
(2) 1G SFP ports
(1) 1.3" LCM color touchscreen with AR switch management
Fanless, silent cooling

Managed with the UniFi Network application: Version 5.12.32 and later

Frequently asked questions5 questions

What ports does the USW-24 have?

It has 24 Gigabit RJ45 ports that run at 1G, 100M or 10M, plus 2 x 1G SFP ports. The SFP ports provide fibre uplink options for the wider network.

Is the USW-24 a managed switch, and how is it managed?

Yes, it is a fully managed Layer 2 switch. It is managed with the UniFi Network web application and mobile app, and it also has a 1.3" colour touchscreen showing key system and connection information.

Is the USW-24 silent, and can it be rack mounted?

It is fanless, so it cools silently. It is a 1U rack-mount switch measuring 442 x 200 x 44 mm and suits rack depths of 400 to 1200 mm.

What are the performance figures for the USW-24?

It offers 52 Gbps switching capacity, 26 Gbps total non-blocking throughput and a 39 Mpps forwarding rate. It supports up to 1,000 VLANs and an 8,000-entry MAC address table.

How is the USW-24 powered, and how much power does it use?

It has an internal 36W AC/DC power supply with a universal 100-240V AC, 50/60 Hz input. Maximum power consumption is 25W.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications28 specifications · 4 sections

Overview
Dimensions	442 x 200 x 44 mm / (17.4 x 7.9 x 1.7")
Port Layout · 1 GbE RJ45	24 / (1G/100M/10M)
Port Layout · 1G SFP	2 / (1G)
Form Factor	Rack mount (1U)
Performance
Switching Capacity	52 Gbps
Total Non-Blocking Throughput	26 Gbps
Forwarding Rate	39 Mpps
Supported VLANs	1,000
MAC Address Table Size	8,000
Packet Buffer Size	0.5 MB
Access Lists · IPv4	128
Access Lists · MAC	128
Hardware
Max. Power Consumption	25W
Power Method	Universal input, 100–240V AC, 50/60 Hz
Power Input Method	AC input
Power Supply	AC/DC, internal, 36W
Supported Voltage Range	100–240V AC
Management	Ethernet / AR
Heat Dissipation	85.3 BTU/hr
Weight	Without mounting brackets: 2.7 kg (6 lb) / With mounting brackets: 2.8 kg (6.2 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	400~1200 mm / (15.7-47.2")
LCM Display	1.3" touchscreen
Ambient Operating Temperature	-5 to 45° C (23 to 113° F)
Ambient Operating Humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC, Anatel: 17193-20-08356
Software
Application Requirements · UniFi Network	Version 7.2.94 and later
