Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
USW-48-POE

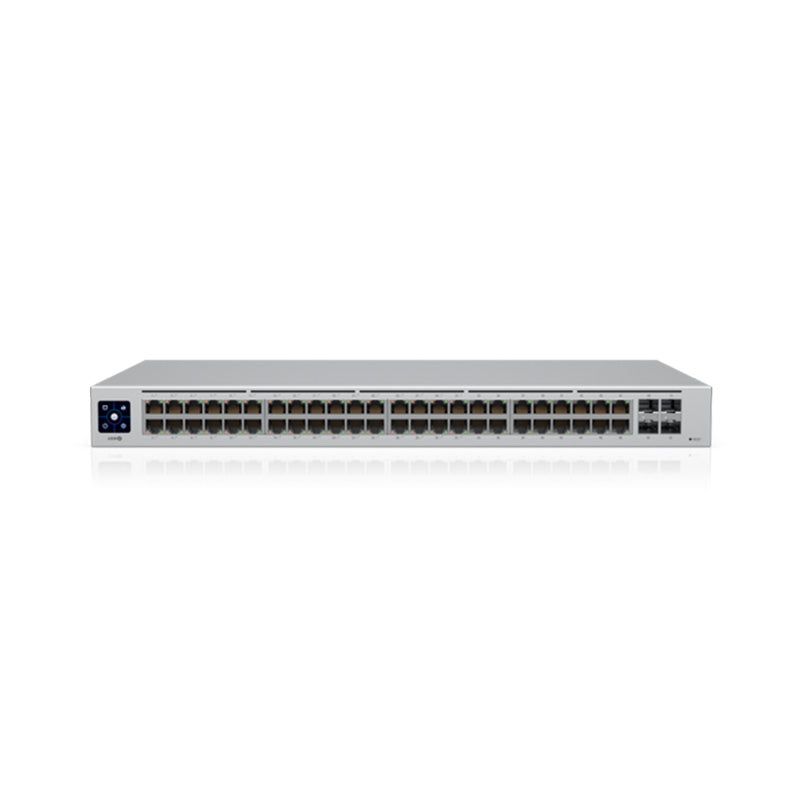

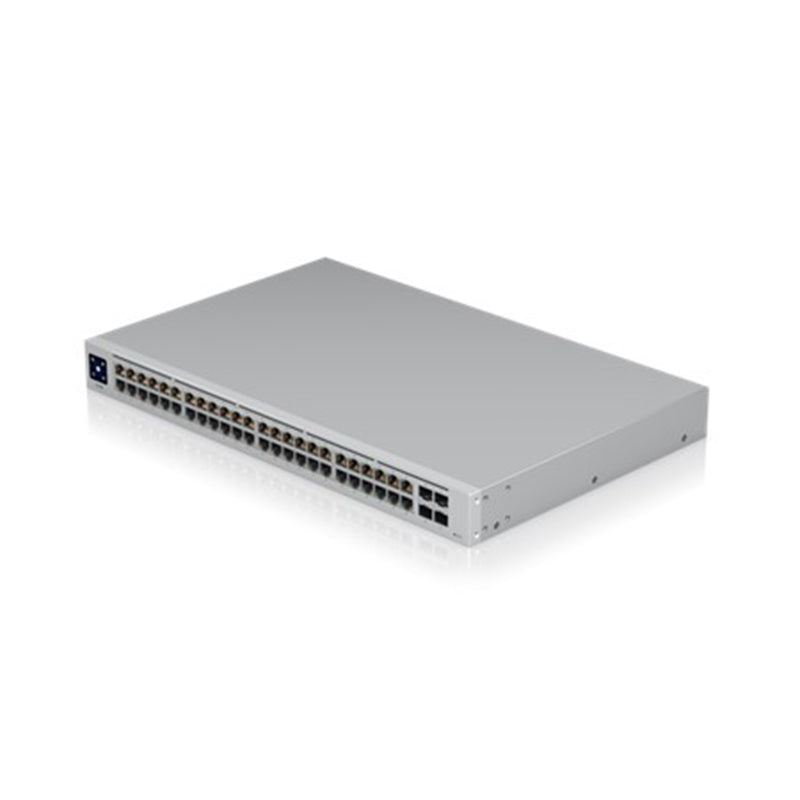

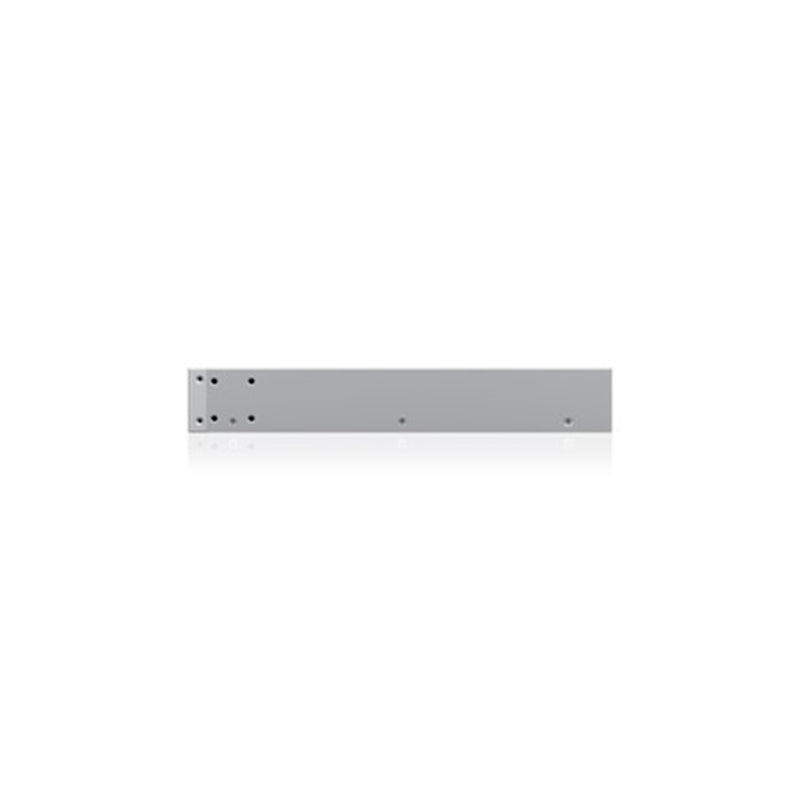

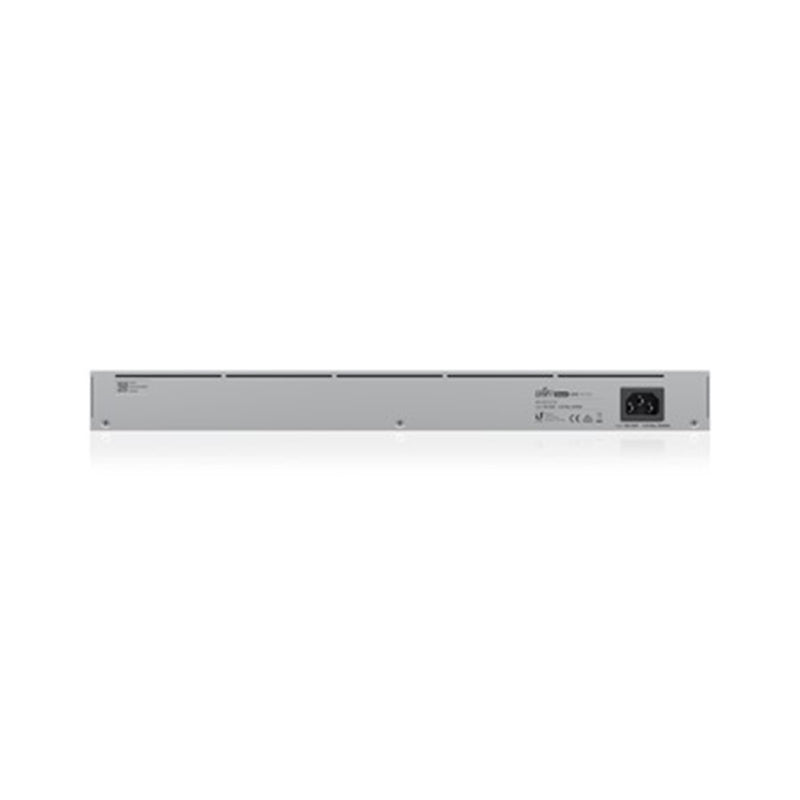

USW-48-PoE Ubiquiti UniFi Switch 48 PoE
$1,269.44 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
Layer 2, PoE switch with (48) GbE RJ45 ports, including (32) PoE+ ports, and (4) 1G SFP ports.
The Switch 48 PoE (USW 48 PoE) is a fully managed switch with (48) GbE RJ45 ports, including (32) GbE, PoE+ ports, and (4) 1G SFP ports. The versatile USW 48 PoE provides Gigabit PoE links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network.
The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
(1) 1.3" LCM color touchscreen with AR switch management
(32) GbE, PoE+ RJ45 ports
(16) GbE RJ45 ports
(4) 1G SFP ports
195W total PoE supply
Fanless, silent cooling
Managed with the UniFi Network application: Version 5.12.32 and later
Frequently asked questions5 questions
How many ports does the USW-48-PoE have?
It has 48 Gigabit RJ45 ports (1G/100M/10M), of which 32 are PoE+, plus 4 1G SFP ports for fibre uplinks.
How much PoE power can this switch supply?
Total PoE availability is 195W across the 32 PoE+ ports, with output up to PoE+ (32W per port). Maximum power consumption is 45W excluding PoE output and 240W including it.
Is the USW-48-PoE a managed switch, and how is it managed?
Yes, it is a fully managed Layer 2 switch. It is configured and monitored through the UniFi Network web application and mobile app, and it has a 1.3" colour touchscreen for on-device system and connection details.
Does it make any fan noise?
No. It uses fanless, silent cooling, so it produces no fan noise.
Can I rack mount it, and what size is it?
Yes, it is a 1U rack-mount switch measuring 442 x 285 x 44 mm. It supports rack depths of 400 to 1200 mm and weighs 4.6 kg with the mounting brackets fitted.
Customer reviews
4.5
· 2 reviews
★★★★★Collected by reviews.io · Apr 2025
FrankSpecifications34 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442 x 285 x 44 mm / (17.4 x 11.2 x 1.7") |
| Port Layout · 1 GbE RJ45 | 48 (32 PoE+) / (1G/100M/10M) |
| Port Layout · 1G SFP | 4 / (1G) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 195W |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 104 Gbps |
| Total Non-Blocking Throughput | 52 Gbps |
| Forwarding Rate | 77 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| Packet Buffer Size | 1.5 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| PoE Ports · PoE+ | 32 |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Max. PoE Wattage per Port by PSE · PoE+ | 32W |
| Max. Power Consumption | 45W (Excluding PoE Output) / 240W (Including PoE Output) |
| Power Method | Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 240W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 153.5 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 4.5 kg (10 lb) / With mounting brackets: 4.6 kg (10.2 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm / (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 00593-21-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 7.2.94 and later |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model USW-48-POE · Ubiquiti's spec sheet
