Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UAP-AC-M

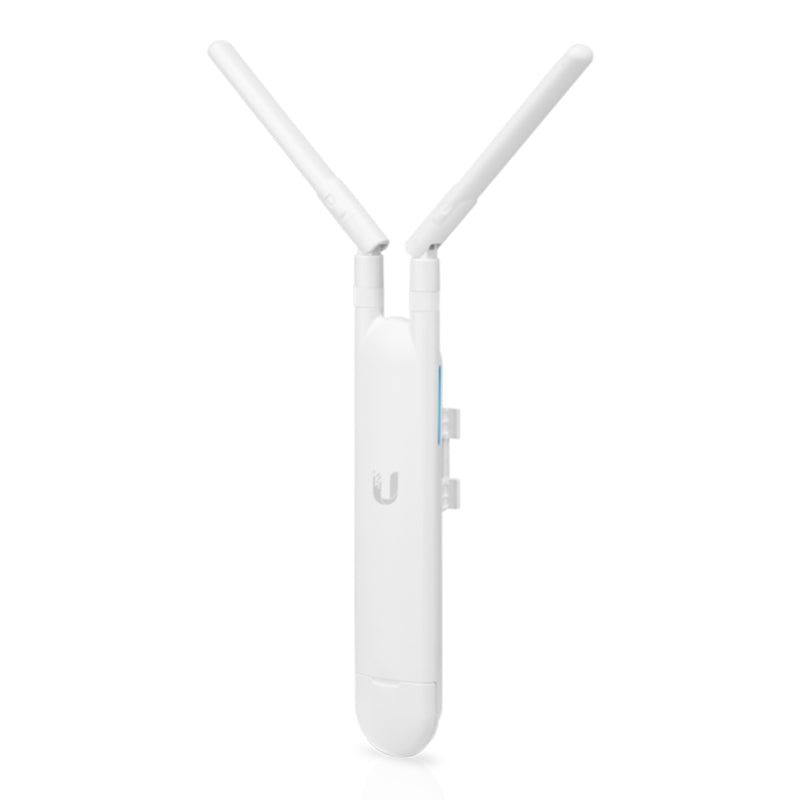

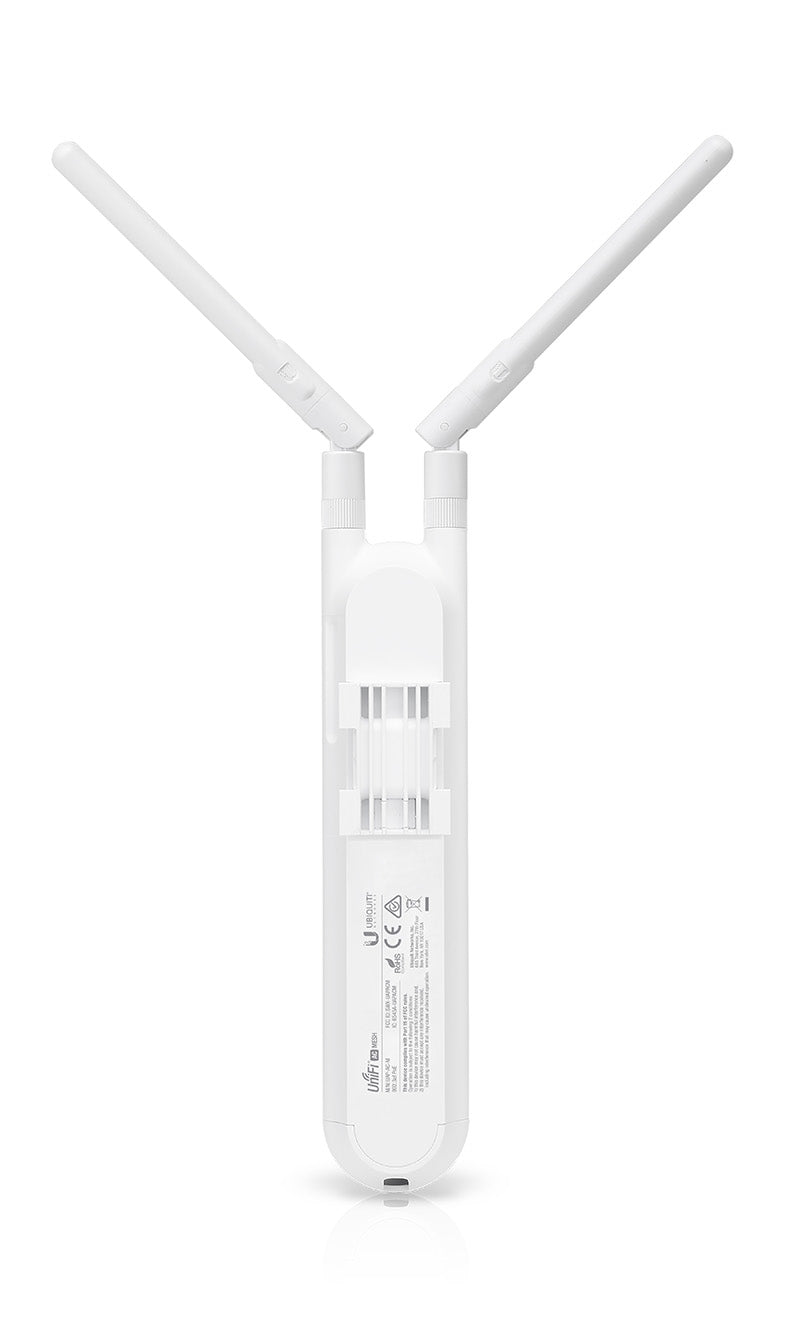

UAP-AC-M Ubiquiti UniFi AC Mesh AP
$200.82 AUD
Unit price
/
Unavailable
Out of stock
In stock in
Brisbane (none in stock)Sydney (none in stock)Melbourne (none in stock)Adelaide (none in stock)Perth (none in stock)North Lakes (none in stock)
Description
Description
The Access Point AC Mesh (UAP AC Mesh) is a high-performance, outdoor-ready, dual-band, 802.11ac WiFi access point than can reach a 1.1+ Gbps aggregate throughput rate with its 5 GHz and 2.4 GHz bands.
The UAP AC Mesh features two, omnidirectional WIFi antennas (2x2 MIMO) to provide robust and extensive wireless coverage 360° coverage, as well as (2) RP-SMA connectors that can be used in tandem with the antennae for customized pattern shaping.
This access point is powered with either PoE or 24V passive PoE and is equipped with (1) GbE RJ45 port for high-speed LAN connectivity. The UAP AC Mesh can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Features:
802.11ac Wave 1 WiFi technology
Dual omnidirectional antennae with 2x2 MIMO functionality
5 GHz band with an 867 Mbps throughput rate
2.4 GHz band with a 300 Mbps throughput rate
(2) RP-SMA connectors for customized pattern shaping
Powered with PoE* or 24V passive PoE
(1) GbE RJ45 port
Frequently asked questions5 questions
What Wi-Fi speeds does the UAP-AC-M support?
It is a dual-band 802.11ac (WiFi 5) access point with an 867 Mbps rate on the 5 GHz band and 300 Mbps on 2.4 GHz. Combined, that gives an aggregate throughput of 1.1+ Gbps.
How is the UAP-AC-M powered?
It can be powered by PoE or by 24V passive PoE, with a supported voltage range of 22-26V DC. Maximum power consumption is 8.5W.
Can the UAP-AC-M be used outdoors?
Yes, it is outdoor-ready with an IPX4 weatherproofing rating and a polycarbonate enclosure. It operates in ambient temperatures from -30 to 70°C and humidity of 5 to 95% noncondensing.
How is the UAP-AC-M mounted and managed?
Wall and pole mounts are included, and the pole mount suits diameters of 1-3" (25-76 mm). It is managed through the UniFi Network web application or mobile app (version 6.0.45 and later), via Ethernet or Bluetooth.
What antennas and network port does the UAP-AC-M have?
It has two omnidirectional 2x2 MIMO antennas for 360° coverage, plus two RP-SMA connectors for customised pattern shaping. Wired connectivity is through one GbE RJ45 port.
Customer reviews
5.0
· 2 reviews
★★★★★Collected by reviews.io · Nov 2023
Small compact units that work well
DionSpecifications33 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 353 x 46 x 34.4 mm / (13.9 x 1.8 x 1.4") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 4 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 200+ |
| Uplink | GbE |
| Mounting | Wall, Pole / (Mounts Included) |
| Weatherproofing | IPX4 |
| Power Method | PoE |
| Performance | |
| MIMO · 5 GHz | 2 x 2 (DL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL MU-MIMO) |
| Max. Data Rate · 5 GHz | 867 Mbps (BW80) |
| Max. Data Rate · 2.4 GHz | 300 Mbps (BW40) |
| Antenna Gain · 5 GHz | 4 dBi |
| Antenna Gain · 2.4 GHz | 3 dBi |
| Max. TX Power · 5 GHz | 20 dBm |
| Max. TX Power · 2.4 GHz | 20 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 8.5W |
| Supported Voltage Range | 22–26V DC |
| Networking Interface | (1) GbE RJ45 port |
| Weight | 152 g (5.4 oz) |
| Pole Mount Diameter | 1–3" (25–76 mm) |
| Management | Ethernet / Bluetooth |
| Enclosure Material | Polycarbonate |
| Channel Bandwidth | HT 20/40, VHT 20/40/80 (MHz) |
| Operating Frequency | US/CA: / 2400 - 2472 MHz / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / / Worldwide: / 2400 - 2483.5 MHz / 5150 - 5850 MHz |
| Ambient Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, UKCA, Anatel: 01769-18-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 6.0.45 and later |
Source: Ubiquiti technical specifications, checked 29 Oct 2026.Model UAP-AC-M · Ubiquiti's spec sheet
