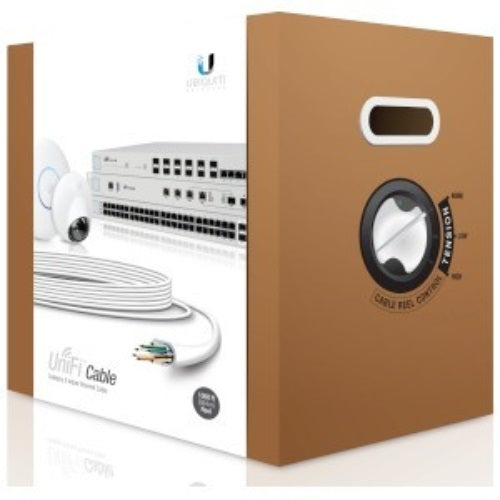

U-Cable-C6-CMR Ubiquiti UniFi Indoor Cable CMR (304m)

$385.62 AUD

In stock · Last fewShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Melbourne and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

Ubiquiti UniFi Cable Cat6, CMR, 1000' (304m) length

Ubiquiti Networks introduces UniFi® Category 6 Indoor Ethernet Cable for your high-speed UniFi and general indoor network deployments.

Available in lengths of 1000 ft (304 m), UniFi Cable is Category 6 UTP (Unshielded Twisted Pair) cabling that supports speeds of up to 10G Ethernet. It uses 23 AWG solid copper conductor pairs and an anti-crosstalk divider, which improves pair isolation.

CMR (Communications Multipurpose cable, Riser) cabling is flame-retardant and can be run vertically between floors in non-plenum areas. UniFi Cable is CMR fire-rated (also called riser-rated), making it suitable for in-wall and riser cabling applications.

We recommend using Category 6 Ethernet connectors to optimize performance and accommodate the size of the 23 AWG conductors.

Features:

Category 6 Unshielded Twisted Pair (UTP) cable
Communications Multipurpose Cable, Riser (CMR)-rated, fire-resistant jacket
1,000 ft (305 m)
23 AWG solid copper, twisted pair conductor
Anti-crosstalk divider
For 1000BASE-T Ethernet applications

Frequently asked questions5 questions

What type of cable is this and what speeds does it support?

It is Category 6 UTP (unshielded twisted pair) Ethernet cable with 23 AWG solid copper conductors and an anti-crosstalk divider. It is rated to support speeds of up to 10G Ethernet and is intended for 1000BASE-T applications.

Can this cable be run between floors or inside walls?

Yes. It is CMR (riser) rated with a flame-retardant PVC jacket, tested to UL 1666, so it suits in-wall and vertical riser runs between floors in non-plenum areas. It is designed for indoor use only.

How much cable is on the box and what are its dimensions?

The box holds 305 m (1,000 ft) of cable. The box measures 476 x 306 x 419 mm and weighs 14.6 kg. The jacket is white with a diameter of 5.9 ± 0.2 mm.

What connectors should I use with this cable?

Ubiquiti recommends Category 6 Ethernet connectors to optimise performance and accommodate the size of the 23 AWG conductors.

What temperature and bend radius limits apply to installation?

The cable can be installed at 0 to 60°C and operates in ambient temperatures from -20 to 60°C. The minimum bend radius is 24 mm.

Click HERE to access the Datasheet

Specifications20 specifications · 1 sections

Overview
Length	305 m (1,000 ft)
Type	Category 6
Flame Rating	CMR
Operating Environment	Indoor
Box Dimensions	476 x 306 x 419 mm / (18.7 x 12 x 16.5")
Box Weight	14.6 kg (32.2 lb)
Cable · Jacket Color	White
Cable · Jacket Diameter	5.9 ± 0.2 mm
Cable · Jacket Material	Flame retardant polyvinyl chloride (FRPVC)
Cable · Shielding Type	UTP
Cable · Conductor Type	Solid bare copper
Cable · Conductor Wire Gage	23 AWG
Cable · Bend Radius	Min. 24 mm
Cable · Twisting	4 Twisted pairs with color code. / Pair 1: white-blue / blue / Pair 2: white-orange / orange / Pair 3: white-green / green / Pair 4: white-brown / brown
Standards · Electrical Transmission	ANSI/TIA-568.2-D / ISO/IEC 11801 (Edition 2.2) / IEC 61156-5 (Edition 2.1)
Standards · Flame Test	UL 1666 (CMR)
Standards · Material and Construction	UL 444 / CSA 22.2 NO.214 / EU Directive 2011/65/EU (RoHS2) / EU Directive 2006/95/EC (LVD)
Installation Temperature	0 to 60°C (32 to 140°F)
Ambient Storage Temperature	-20 to 75°C (-4 to 167°F)
Ambient Operating Temperature	-20 to 60°C (-4 to 140°F)
