MansheelUSP-RPS Ubiquiti UniFi SmartPower Redundant Power System
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description

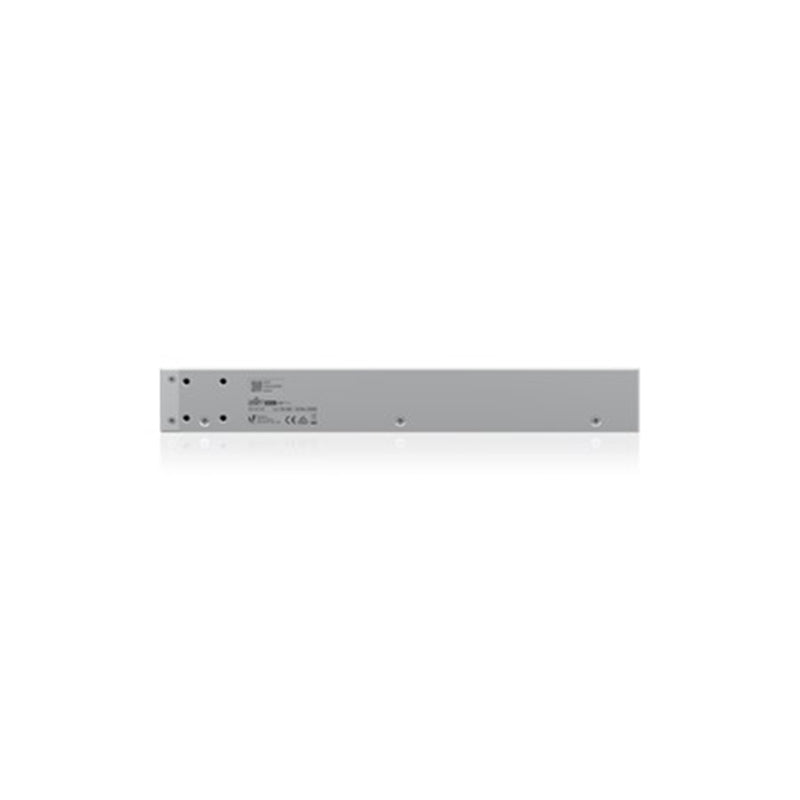

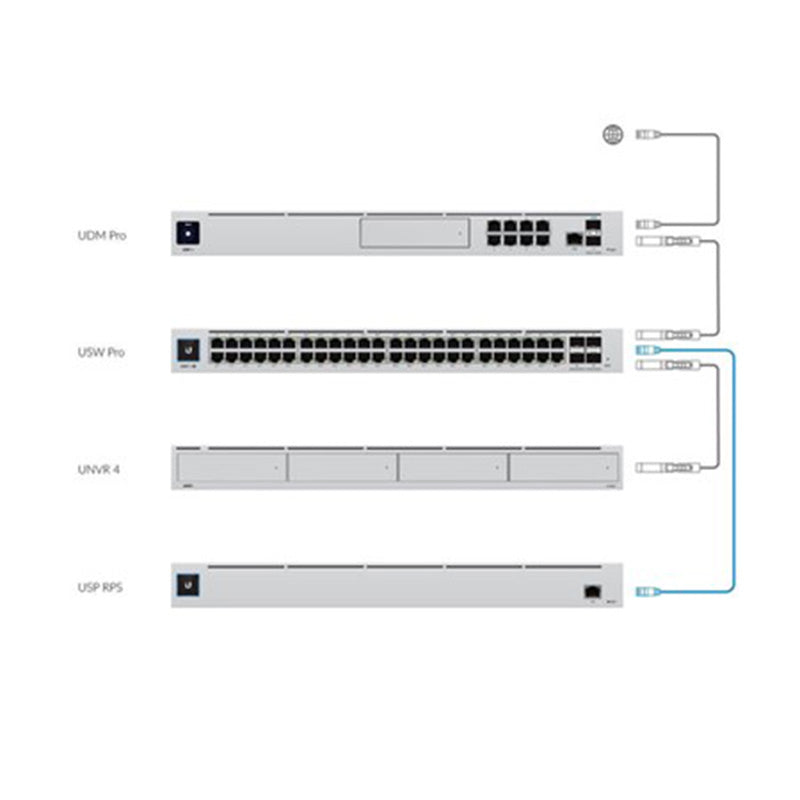

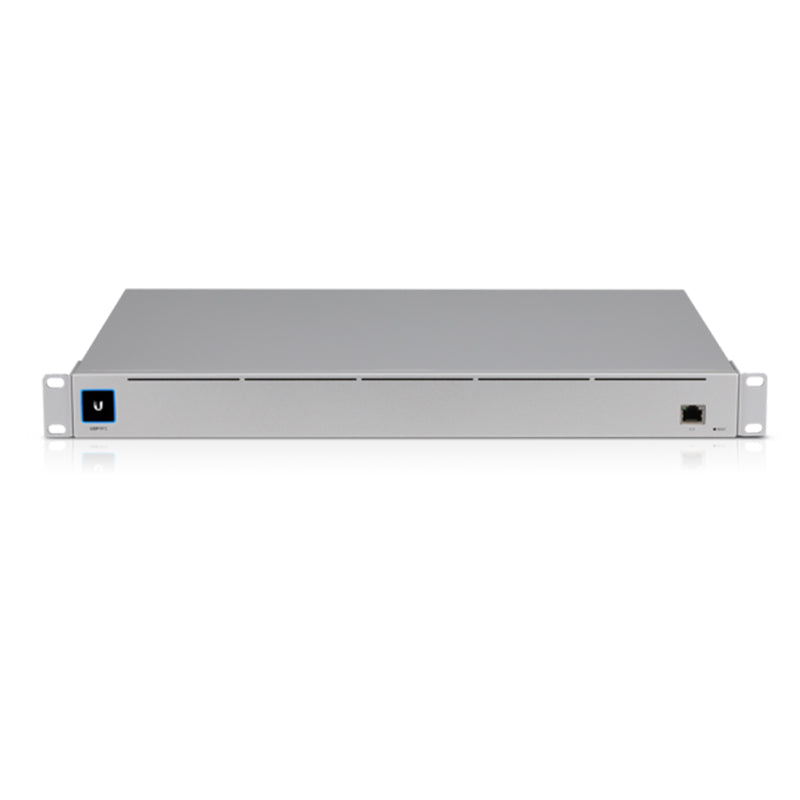

The UniFi® SmartPower Redundant Power System, model USP-RPS, is a proprietary redundant power system designed to protect up to six UniFi SmartPower supported devices from sudden power supply module failure.
The USP-RPS continually monitors all attached devices. In the event of an internal AC/DC power supply failure, failover is automatic so your network continues to operate with no interruption in service.
With a 950W DC power budget, the USP-RPS can protect a variety of high-power devices, including UniFi PoE switches. An integrated 1.3" color touchscreen LCM displays system information for convenient monitoring.
Features:

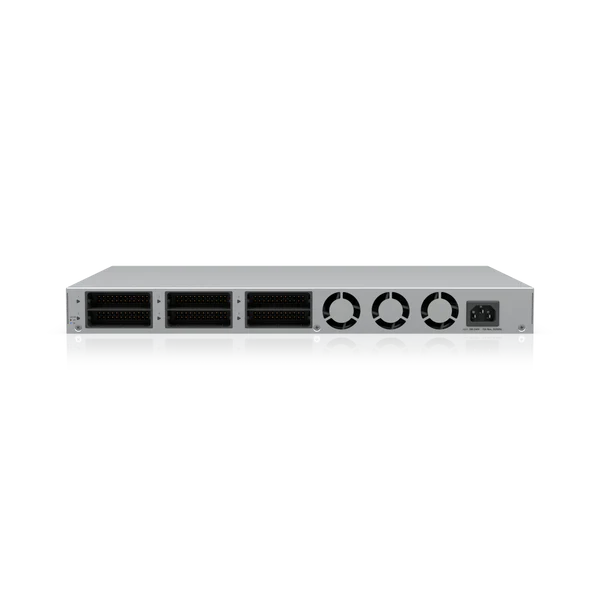

(6) USP DC output ports
(1) Ethernet port
1U Rackmountable (kit included)
1.3" Touchscreen display with status information
Managed by UniFi Network Controller version: 5.12.11 or later
Frequently asked questions5 questions
What does the USP-RPS do?
How much power can the USP-RPS supply?
How many devices can it protect, and what ports does it have?
How is the USP-RPS monitored and managed?
Can the USP-RPS be rack mounted?
Customer reviews
5.0
· 1 review
Specifications20 specifications · 2 sections
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 325.6 x 43.7 mm / (17.4 x 12.8 x 1.7") |
| Weight | Without mount brackets : 5.5 kg (12.1 lb) / With mount brackets: 5.6 kg (12.3 lb) |
| Enclosure Material | SGCC steel |
| Hardware | |
| Management | Ethernet |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | (1) Universal AC input, 100–240V AC |
| Power Supply | 54V DC output: AC/DC, internal, 645W / 12V DC output: AC/DC, internal, 350W |
| Supported Voltage Range | 100–240V AC |
| Max. Power Consumption | 995W |
| Power Output | (6) RPS DC ports |
| Max. Power Output | 52V DC: 11.54A (600W) / 11.5V DC: 30.44A (350W) |
| Max. Output Power per RPS Port | 52V DC: 11.54A (600W) / 11.5V DC: 30.44A (350W) |
| ESD/EMP Protection | Air: ± 16kV, contact: ± 12kV |
| Display | 1.3" touchscreen |
| Buttons | (1) Factory reset |
| LEDs · System | Status |
| LEDs · USP RPS | Activity |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
