Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
U6-MESH

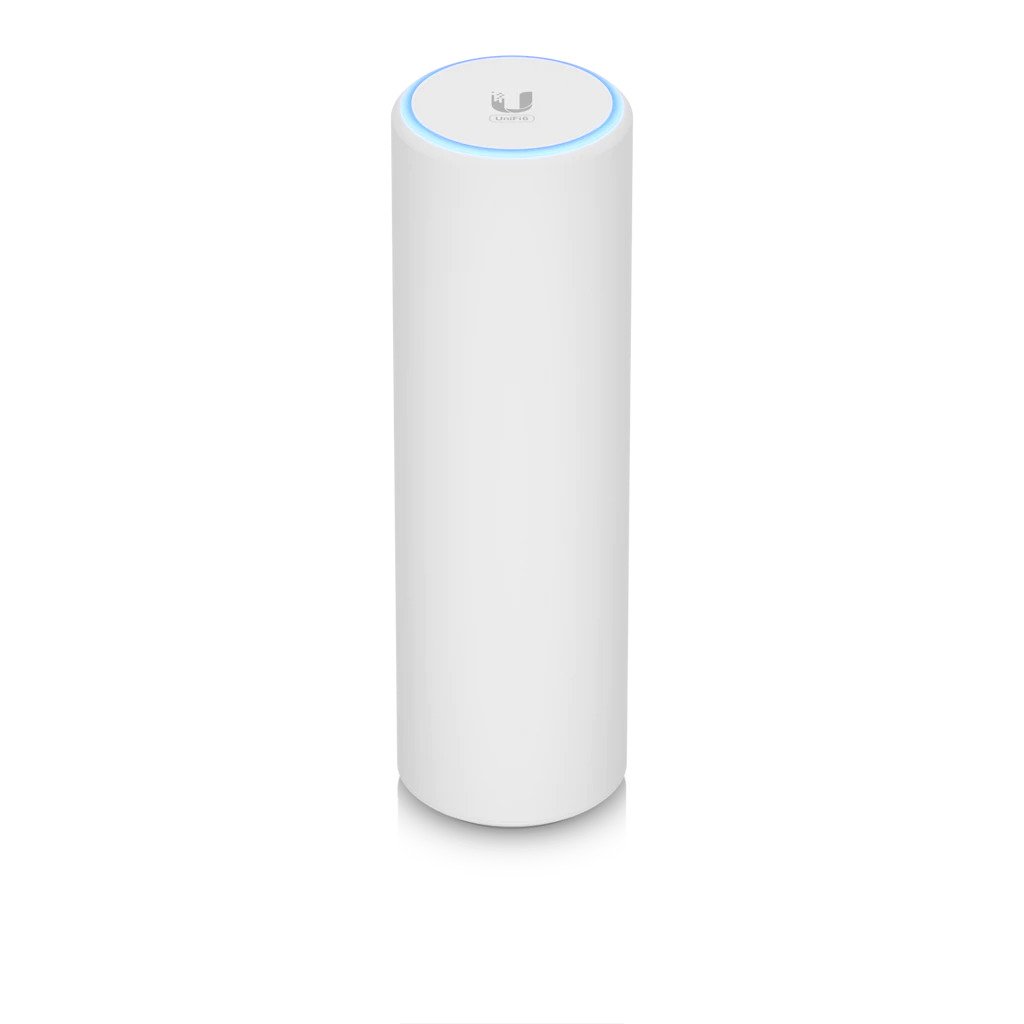

U6-Mesh Ubiquiti UniFi6 Mesh AP
$399.78 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
Please note:
- Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue colour modes.
The Access Point WiFi 6 Mesh (U6 Mesh) is a high-performance, four-stream WiFi 6 access point that provides best-in-class signal meshing to enhance the wireless coverage of home and enterprise networks. The U6 Mesh can reach an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MU-MIMO and OFDMA) bands. This access point also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer.
The sleek U6 Mesh is discreet enough to stage anywhere in your home or office, but also rugged enough to reliably operate outdoors thanks to its IPX5-rated, waterproof housing.
The U6 Mesh is a plug-and-play device designed to easily extend your wireless signal to ensure full, seamless coverage and high-quality WiFi connectivity. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Features:
High-efficiency 4x4 WiFi 6 (802.11ax)
5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
2.4 GHz (2x2 MU-MIMO and OFDMA) band with a 573.5 throughput rate
Operates at full 4x4 MIMO with 160 MHz bandwidth
Powered with PoE (PoE adapter included)
Frequently asked questions5 questions
What is the U6 Mesh designed for?
It is a four-stream WiFi 6 access point built to extend wireless coverage in home and enterprise networks through signal meshing. It is plug-and-play and is managed with the UniFi Network web application or mobile app.
What speeds and bands does the U6 Mesh support?
It offers up to 4.8 Gbps on 5 GHz (4x4 MU-MIMO) and 573.5 Mbps on 2.4 GHz (2x2 MU-MIMO), with an aggregate throughput of up to 5.3 Gbps. It runs full 4x4 MIMO with 160 MHz channels on 5 GHz.
How is the U6 Mesh powered?
It is powered by PoE, and a PoE adapter is included. Maximum power consumption is 13W, with a supported voltage range of 44–57V DC.
Can the U6 Mesh be used outdoors?
Yes, it has an IPX5-rated waterproof housing and operates in ambient temperatures from -30 to 60°C. Wall and pole mounts are included.
How much coverage and how many clients does it handle?
It covers an area of up to 140 m² and supports 250+ connected clients. It has one GbE RJ45 port for its uplink.
Customer reviews
4.5
· 2 reviews
★★★★★Collected by reviews.io · Feb 2025
Awesome product. Easy to setup. Service was great and extremely helpful!
DeanSpecifications35 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | ⌀48.5 x 159.5 mm / (⌀1.9 x 6.3") |
| WiFi Standard | WiFi 6 |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 250+ |
| Uplink | GbE |
| Mounting | Wall, Pole, Tabletop / (Mounts Included) |
| Weatherproofing | IPX5 |
| Power Method | PoE |
| Performance | |
| MIMO · 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate · 5 GHz | 4.8 Gbps (BW160) |
| Max. Data Rate · 2.4 GHz | 573.5 Mbps (BW40) |
| Antenna Gain · 5 GHz | 5 dBi |
| Antenna Gain · 2.4 GHz | 3 dBi |
| Max. TX Power · 5 GHz | 26 dBm |
| Max. TX Power · 2.4 GHz | 22 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 44–57V DC |
| Networking Interface | (1) GbE RJ45 port |
| Weight | 400 g (14.1 oz) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Polycarbonate |
| LEDs · System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
| Operating Frequency | US/CA: / 2400 - 2472 MHz / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / / Worldwide: / 2400 - 2483.5 MHz / 5150 - 5850 MHz |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, SRRC, Anatel: 02111-22-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 6.0.45 and later |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model U6-MESH · Ubiquiti's spec sheet
