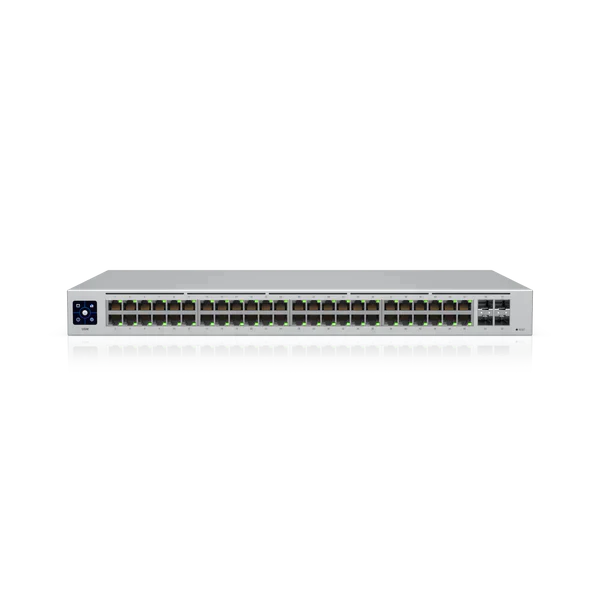

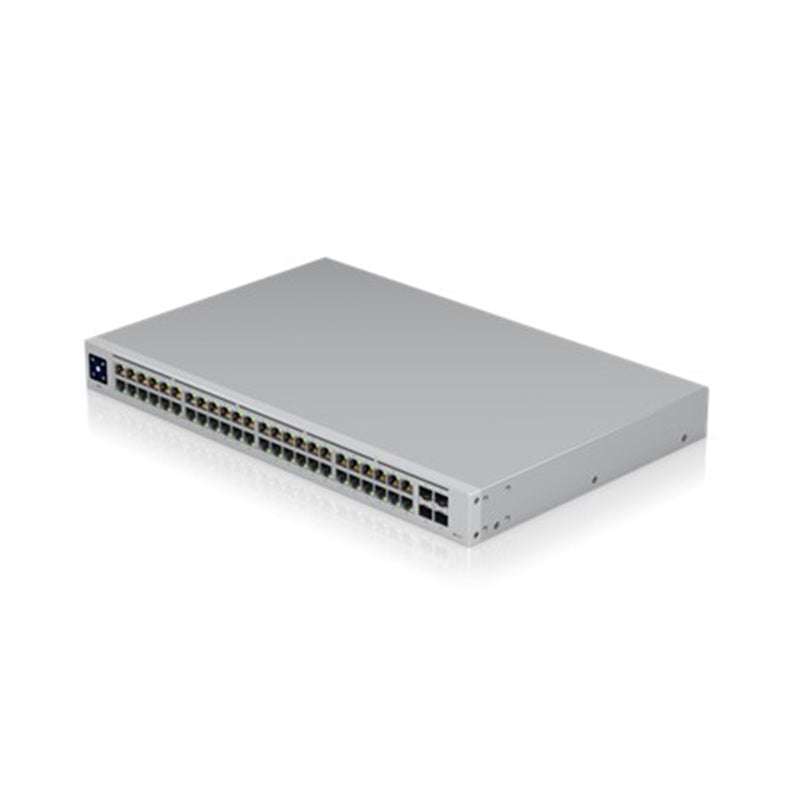

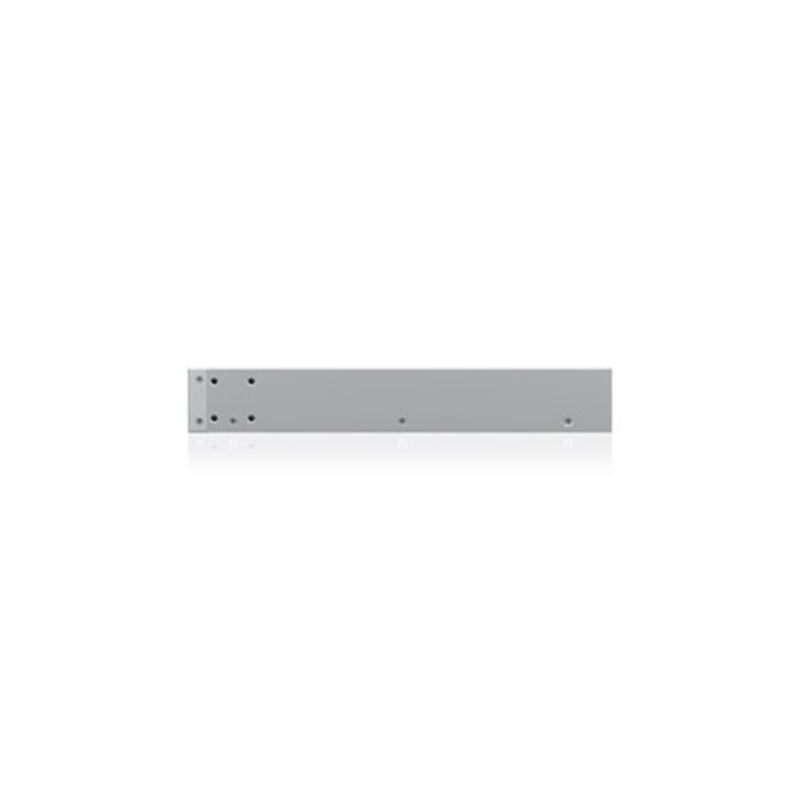

USW-48 Ubiquiti UniFi Switch 48 Non PoE

$769.99 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

Layer 2 switch with (48) GbE RJ45 ports and (4) 1G SFP ports.

The Switch 48 (USW 48) is a fully managed, fanless switch with (48) GbE RJ45 ports and (4) 1G SFP ports. The versatile USW 48 provides Gigabit links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network.

The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.

This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:

(1) 1.3" LCM color touchscreen with AR switch management
(48) GbE RJ45 ports
(4) 1G SFP ports
Fanless, silent cooling

Managed with the UniFi Network application: Version 5.13.10 and later

Frequently asked questions5 questions

Does the USW-48 provide PoE?

No, this is the Non PoE model of the Switch 48. It is powered by an internal 60W AC/DC supply with a 100-240V AC, 50/60 Hz input, and has a maximum power consumption of 40W.

What ports does the USW-48 have?

It has 48 GbE RJ45 ports that support 1G, 100M and 10M, plus 4 x 1G SFP ports. The SFP ports provide Gigabit fibre uplink options.

Is the USW-48 a managed switch, and how is it configured?

Yes, it is a fully managed Layer 2 switch. It can be monitored and configured through the UniFi Network web application and mobile app, and has a 1.3" colour LCM touchscreen with AR switch management.

Is the USW-48 suitable for rack mounting, and is it noisy?

It is a 1U rack-mount switch with mounting brackets, supporting rack depths of 400 to 1200 mm. It uses fanless, silent cooling.

What switching performance does the USW-48 offer?

It provides 104 Gbps switching capacity, 52 Gbps total non-blocking throughput and a 77 Mpps forwarding rate. It supports up to 1,000 VLANs and a 16,000-entry MAC address table.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications28 specifications · 4 sections

Overview
Dimensions	442 x 285 x 44 mm / (17.4 x 11.2 x 1.7")
Port Layout · 1 GbE RJ45	48 / (1G/100M/10M)
Port Layout · 1G SFP	4 / (1G)
Form Factor	Rack mount (1U)
Performance
Switching Capacity	104 Gbps
Total Non-Blocking Throughput	52 Gbps
Forwarding Rate	77 Mpps
Supported VLANs	1,000
MAC Address Table Size	16,000
Packet Buffer Size	1.5 MB
Access Lists · IPv4	128
Access Lists · MAC	128
Hardware
Max. Power Consumption	40W
Power Method	Universal input, 100–240V AC, 50/60 Hz
Power Input Method	AC input
Power Supply	AC/DC, internal, 60W
Supported Voltage Range	100–240V AC
Management	Ethernet / AR
Heat Dissipation	136.5 BTU/hr
Weight	Without mounting brackets: 3.9 kg (8.6 lb) / With mounting brackets: 4 kg (8.8 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	400~1200 mm / (15.7-47.2")
LCM Display	1.3" touchscreen
Ambient Operating Temperature	-15 to 40° C (5 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC, Anatel: 17193-20-08356
Software
Application Requirements · UniFi Network	Version 7.2.94 and later
