Manufacturer's photos. Where a power lead is pictured, an AU one is provided.

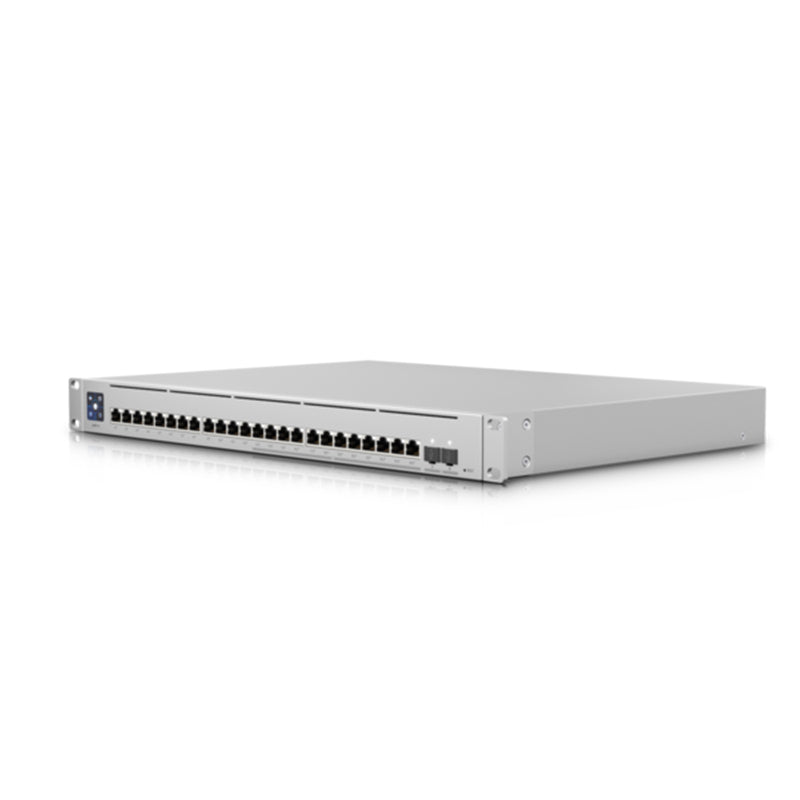

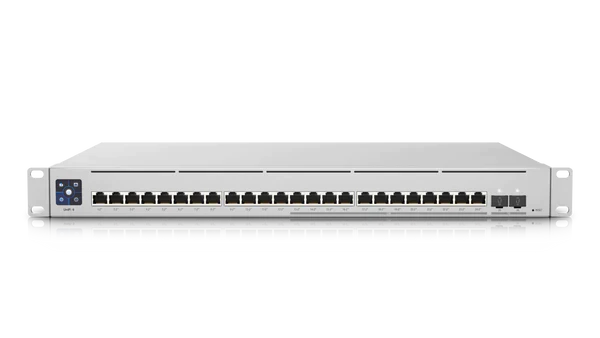

USW-Enterprise-24-PoE Ubiquiti UniFi Switch Enterprise 24 PoE
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
Layer 3, PoE switch with (12) 2.5GbE, PoE+ RJ45 ports, (12) GbE, PoE+ RJ45 ports, and (2) 10G SFP+ ports.
The Switch Enterprise 24 PoE (USW Enterprise 24 PoE) is a fully managed, Layer 3 switch with (12) 2.5GbE, PoE+ RJ45 ports, (12) GbE, PoE+ RJ45 ports, (2) 10G SFP+ ports, and a 400W total PoE supply. The USW Enterprise 24 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise 24 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately).
This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
(1) 1.3" LCM color touchscreen with AR switch management
(12) GbE, PoE+ RJ45 ports
(12) 2.5GbE, PoE+ RJ45 ports
(2) 10G SFP+ ports
(1) USP RPS DC input
400W total PoE supply
Layer 3 switching features
Single-row RJ45 port layout for easy patch panel cable management
Managed with the UniFi Network application: Version 5.14.12 and later
Frequently asked questions5 questions
What ports does the USW-Enterprise-24-PoE have?
How much PoE power can this switch supply?
Is this a Layer 3 switch, and how is it managed?
Can this switch be fitted in a rack, and what are its dimensions?
Does the switch support power redundancy?
Specifications36 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442 x 325 x 44 mm / (17.4 x 12.8 x 1.7") |
| Port Layout · 1 GbE RJ45 | 12 (All PoE+) / (1G/100M/10M) |
| Port Layout · 2.5 GbE RJ45 | 12 (All PoE+) / (2.5G/1G/100M/10M) |
| Port Layout · 10G SFP+ | 2 / (10G/1G) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 400W |
| Redundancy | DC Power Backup |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 124 Gbps |
| Total Non-Blocking Throughput | 62 Gbps |
| Forwarding Rate | 92 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 2 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| PoE Ports · PoE+ | 24 |
| Max. PoE Wattage per Port by PSE · PoE+ | 32W |
| Max. Power Consumption | 60W (Excluding PoE Output) / 460W (Including PoE Output) |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 550W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 204.7 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 5.1 kg (11.3 lb) / With mounting brackets: 5.2 kg (11.5 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm / (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 05485-22-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 5.14.12 and later |
