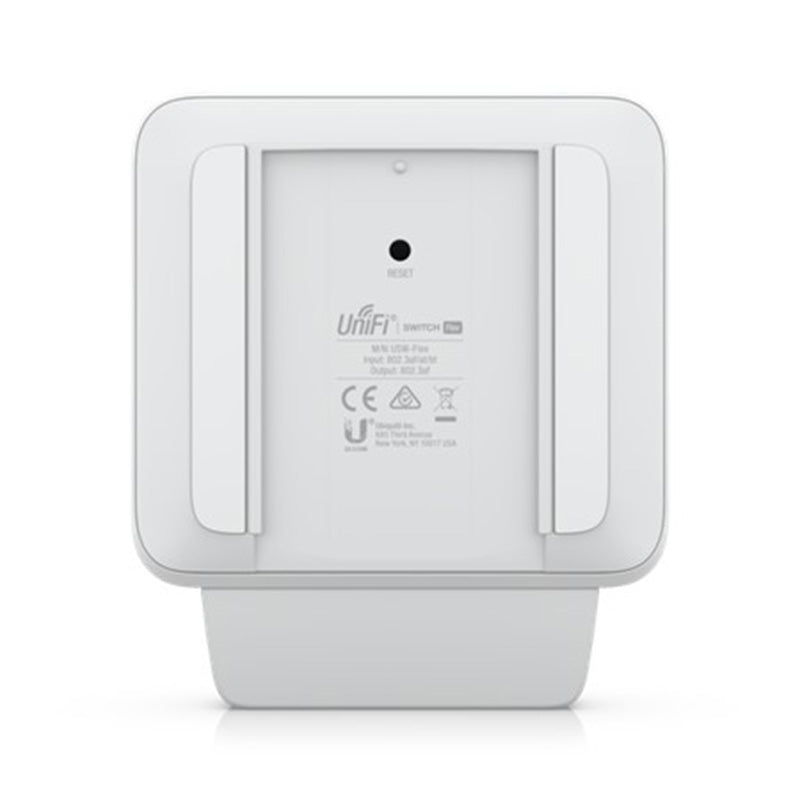

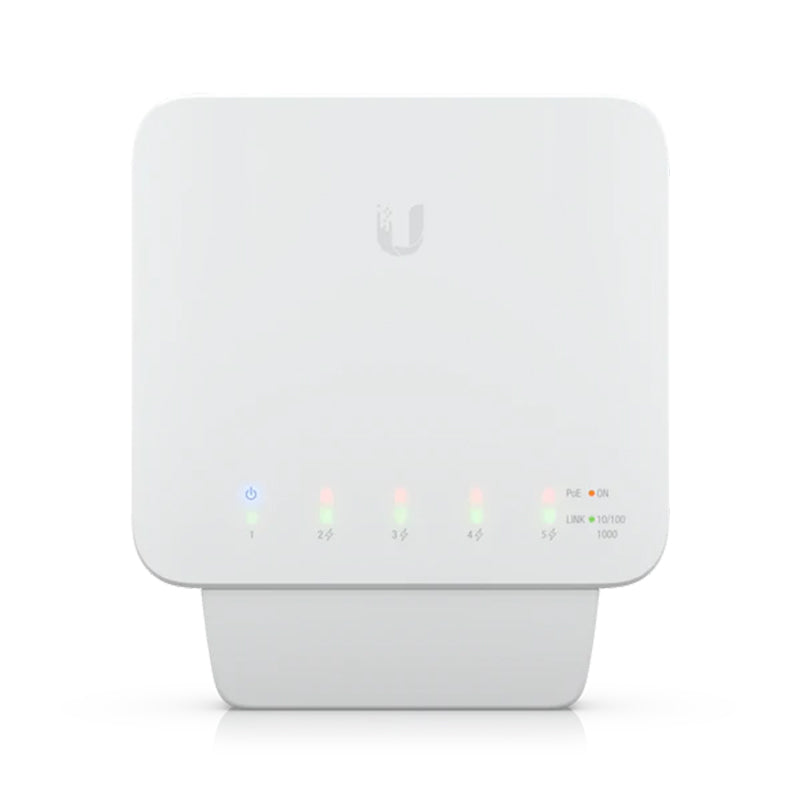

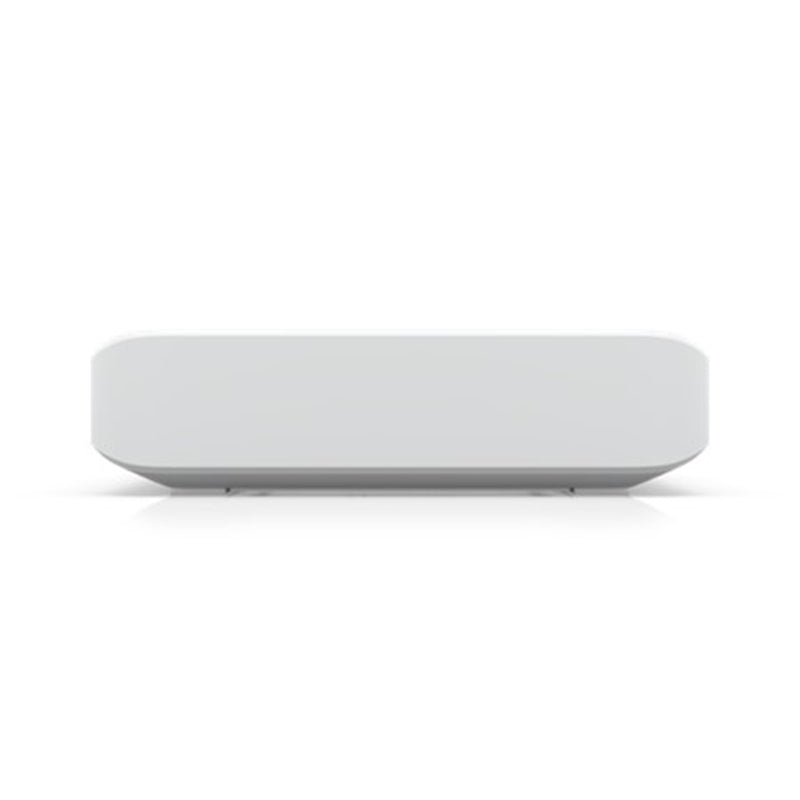

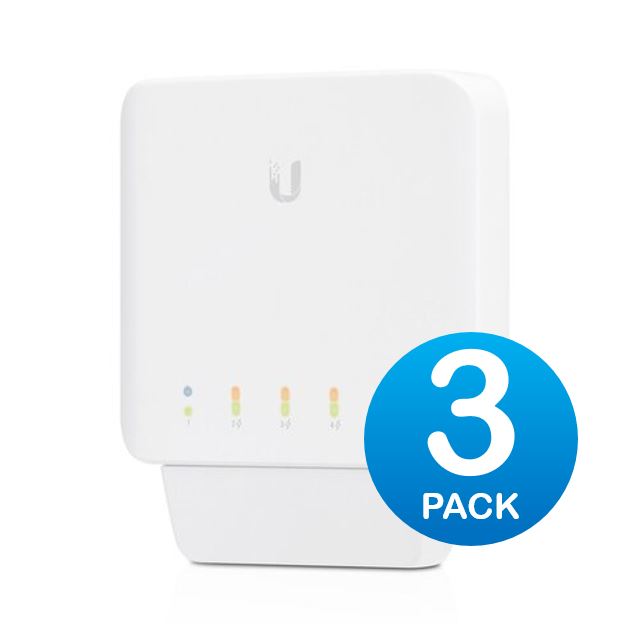

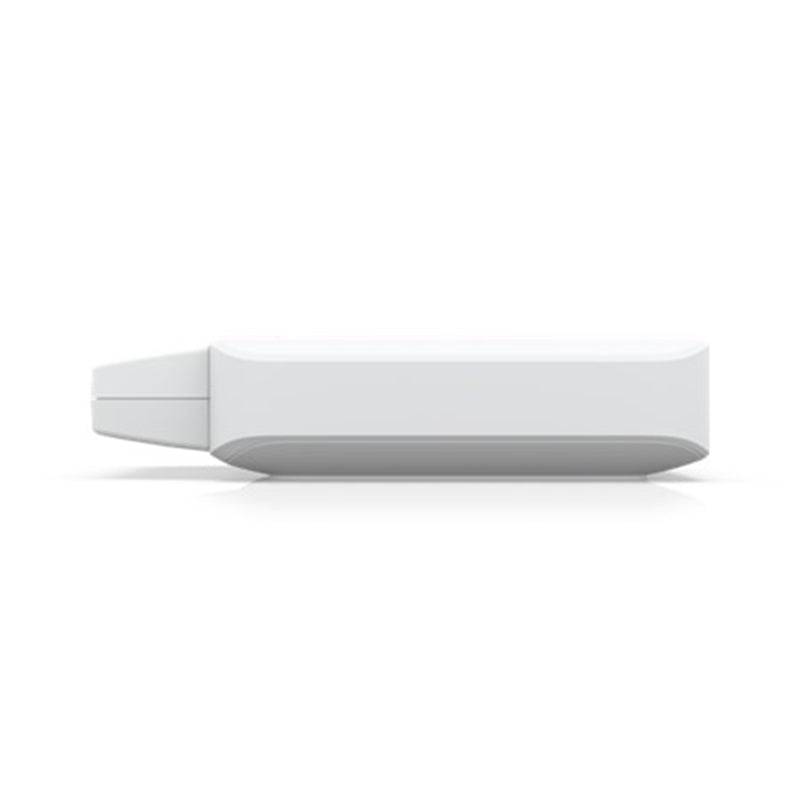

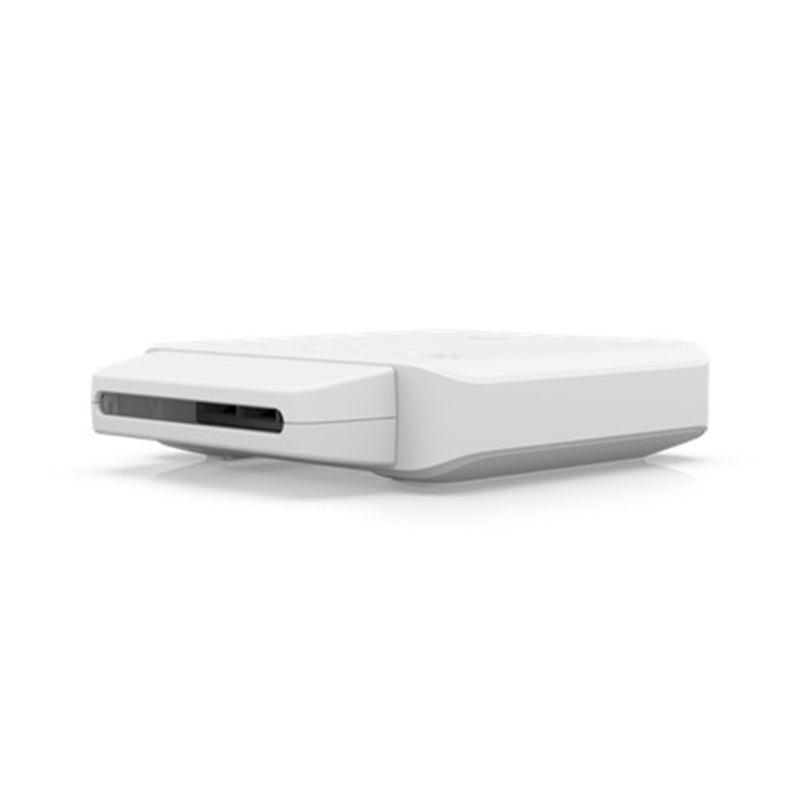

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
USW-FLEX
USW-Flex Ubiquiti UniFi Switch Flex
$197.19 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
In stock in
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
20+ in stockShips from the warehouse closest to you
In stock in
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description

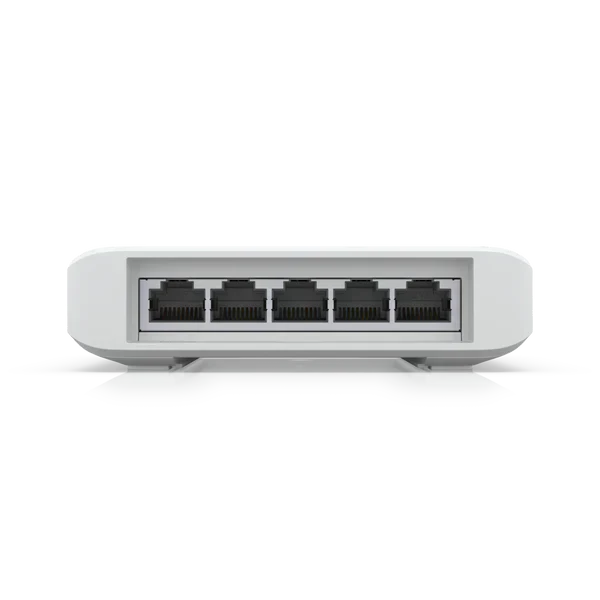

Layer 2, PoE switch with (5) GbE RJ45 ports, including (4) PoE+ ports and (1) PoE++ input
The Switch Flex (USW Flex) is a fully managed, Layer 2 switch with (5) GbE RJ45 ports, including (4) GbE, PoE+ ports and (1) PoE++ input. Each of the USW Flex's PoE ports can provide up to 25W of power to your UniFi access points and PoE devices. When powered by a PoE++ switch [e.g., USW Pro 48 PoE, USW Pro 24 PoE, US XG 6 PoE, and USW Industrial switches (all sold separately)], the USW Flex can yield a 46W total PoE supply.
The USW Flex sports weatherproof housing and offers a variety of mounting options. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
(1) GbE, PoE++ RJ45 input
(4) GbE, PoE+ RJ45 ports
Up to a 46W total PoE supply*
Weatherproof design
Multiple mounting options
Managed with the UniFi Network application: Version 5.10.3 and later
*When powered with a PoE++ switch or a 60W PoE injector (sold separately).
Frequently asked questions5 questions
What ports does the USW-Flex have?
It has five Gigabit RJ45 ports (1G/100M/10M). Four are PoE+ output ports and one is a PoE++ input port.
How is the USW-Flex powered, and how much PoE can it supply?
It is powered over Ethernet through its PoE++ input, using a PoE++ switch or a 60W PoE adapter. With that input it offers 46W of total PoE; a PoE+ input gives 20W and a PoE input gives 8W.
How much power can each PoE port deliver?
Each of the four PoE+ ports can provide up to 25W to devices such as UniFi access points. The total available across all ports depends on the power source feeding the PoE++ input.

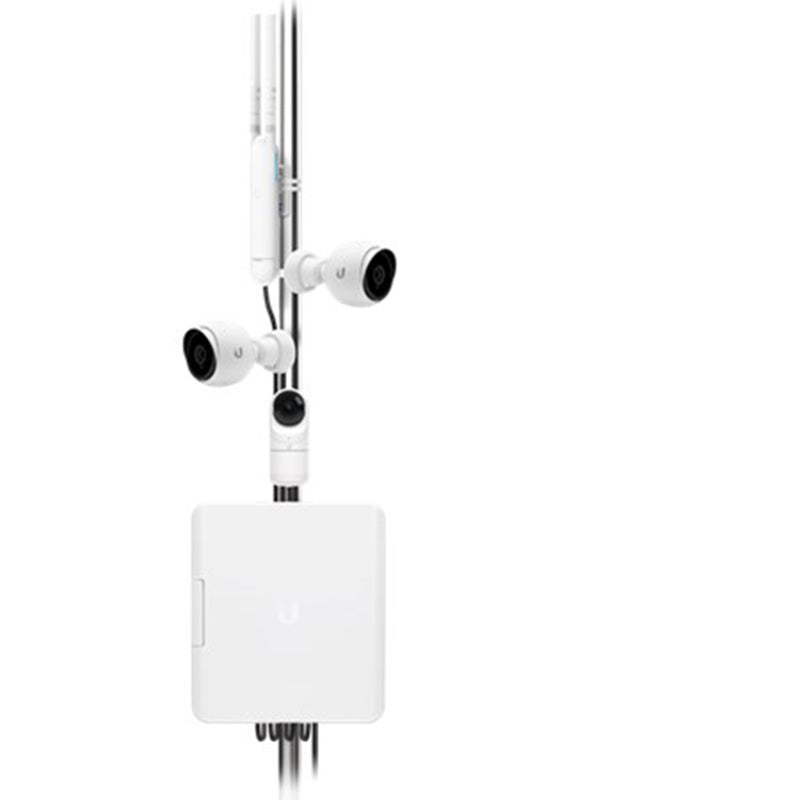

Can the USW-Flex be used outdoors or mounted in different ways?
It has a weatherproof design and a compact form factor for desktop, wall or pole mounting. It operates from -40 to 55° C at 46W PoE output, or up to 65° C at 25W PoE output.
How is the USW-Flex managed?
It is a fully managed Layer 2 switch controlled through the UniFi Network web application and mobile app, version 5.10.3 or later. This lets you monitor and configure it remotely.
Customer reviews
5.0
· 2 reviews
★★★★★Collected by reviews.io · Jun 2025
Using with a PoE injector in ceiling and has been great. Although do need to be mindful as it gets quite warm.
AnonymousSpecifications25 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 122.5 x 107.1 x 28 mm / (4.8 x 4.2 x 1.1") |
| Port Layout · 1 GbE RJ45 | 5 (4 PoE+; 1 PoE++) / (1G/100M/10M) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | PoE++/60W PoE adapter input: 46W / PoE+ input: 20W / PoE input: 8W |
| Form Factor | Compact desktop, wall, pole |
| Performance | |
| Switching Capacity | 10 Gbps |
| Total Non-Blocking Throughput | 5 Gbps |
| Forwarding Rate | 7 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 2,000 |
| Hardware | |
| PoE Ports · PoE+ | 4 |
| PoE Ports · PoE++ | 1 |
| Max. PoE Wattage per Port by PSE · PoE+ | 25W |
| Max. Power Consumption | 5W (Excluding PoE Output) / 51W (Including PoE Output) |
| Power Method | PoE++ |
| Power Input Method | PoE |
| Supported Voltage Range | 50–57V PoE |
| Management | Ethernet |
| Heat Dissipation | 17.1 BTU/hr (Excluding PoE Output) |
| Weight | 230 g (8.1 oz) |
| ESD Protection | Air/contact: ± 16kV |
| Ambient Operating Temperature | 46W PoE output: -40 to 55° C (-40 to 131° F) / 25W PoE output: -40 to 65° C (-40 to 149° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 14502-20-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 5.10.3 and later |
Source: Ubiquiti technical specifications, checked 29 Oct 2026.Model USW-FLEX · Ubiquiti's spec sheet
