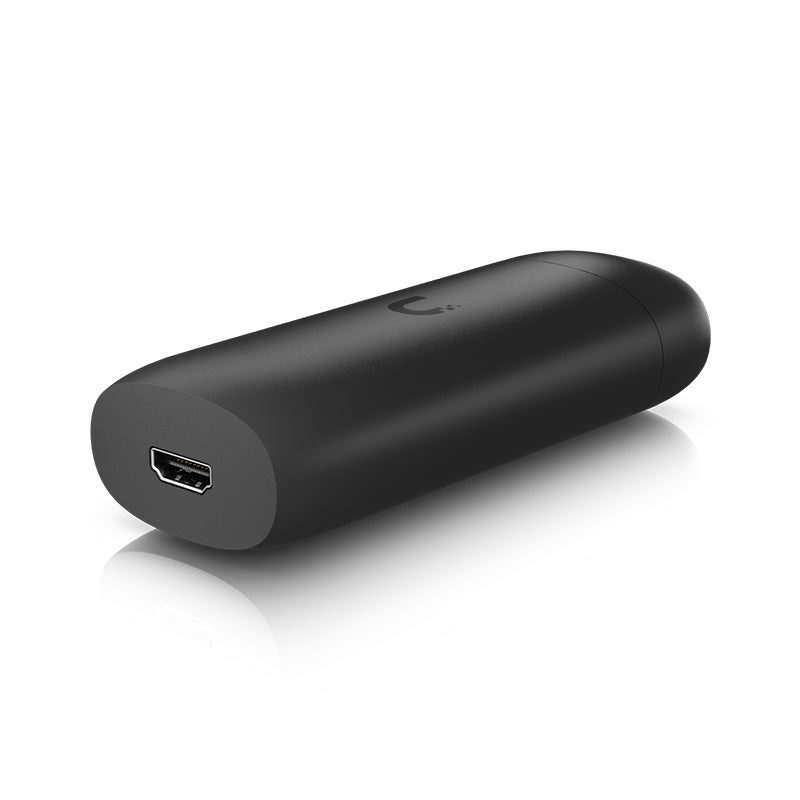

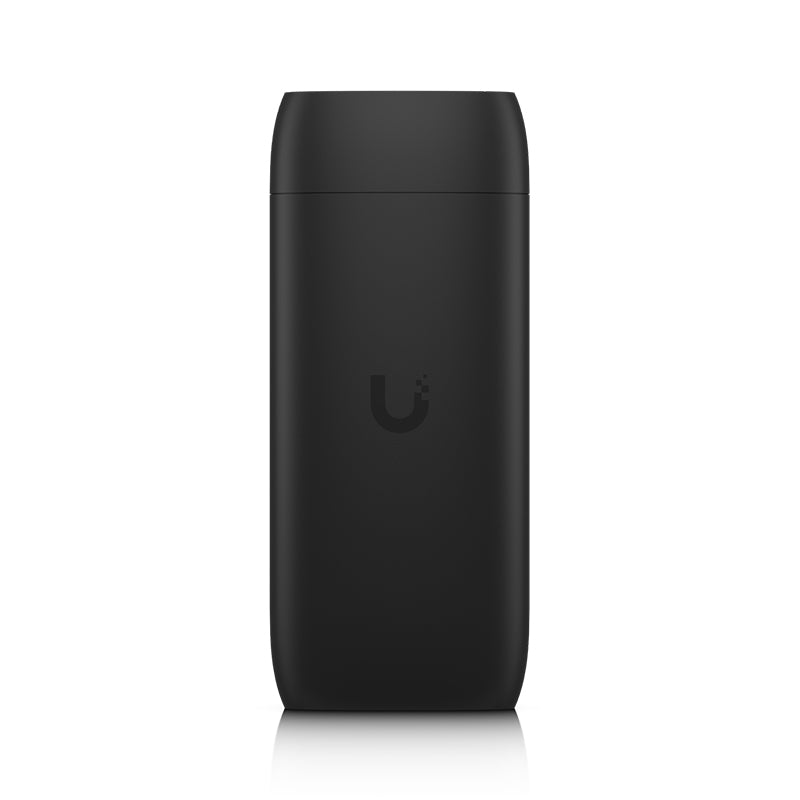

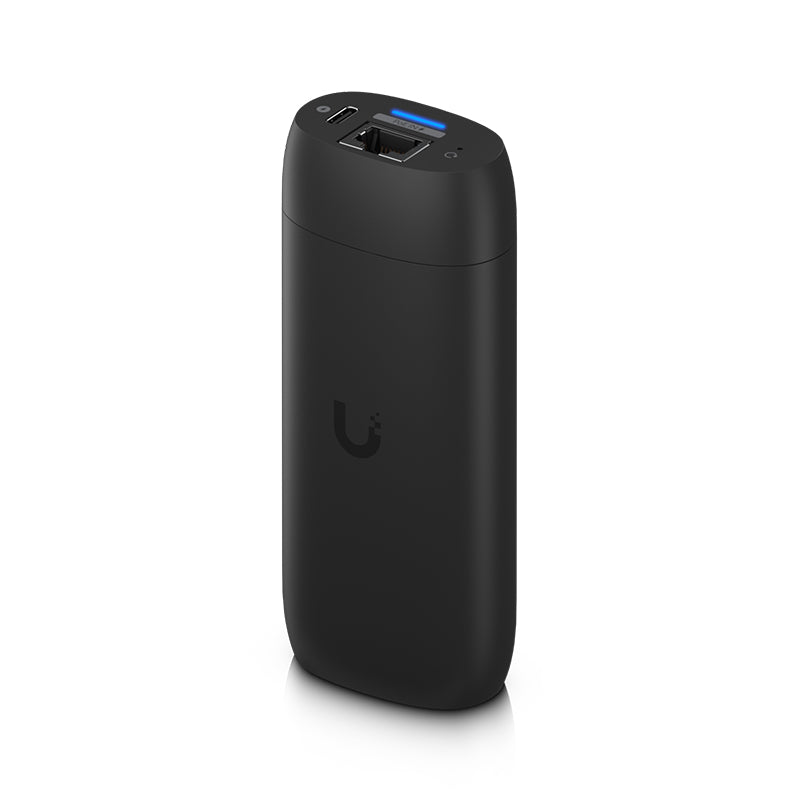

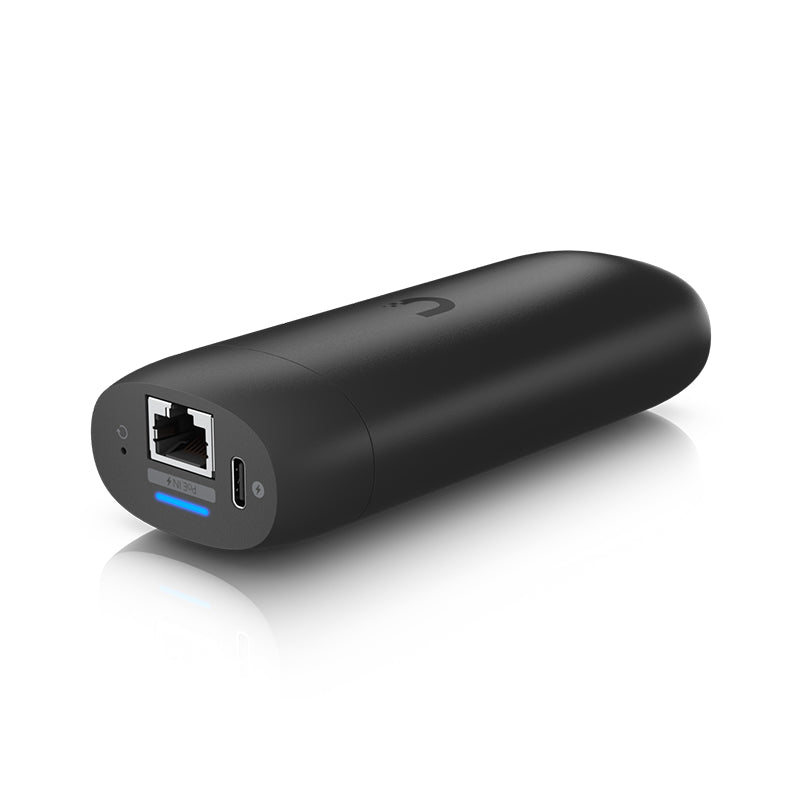

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.

SKU: UC-Cast-Pro

UC-Cast-Pro Ubiquiti UniFi Connect Display Cast Pro

$563.02 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

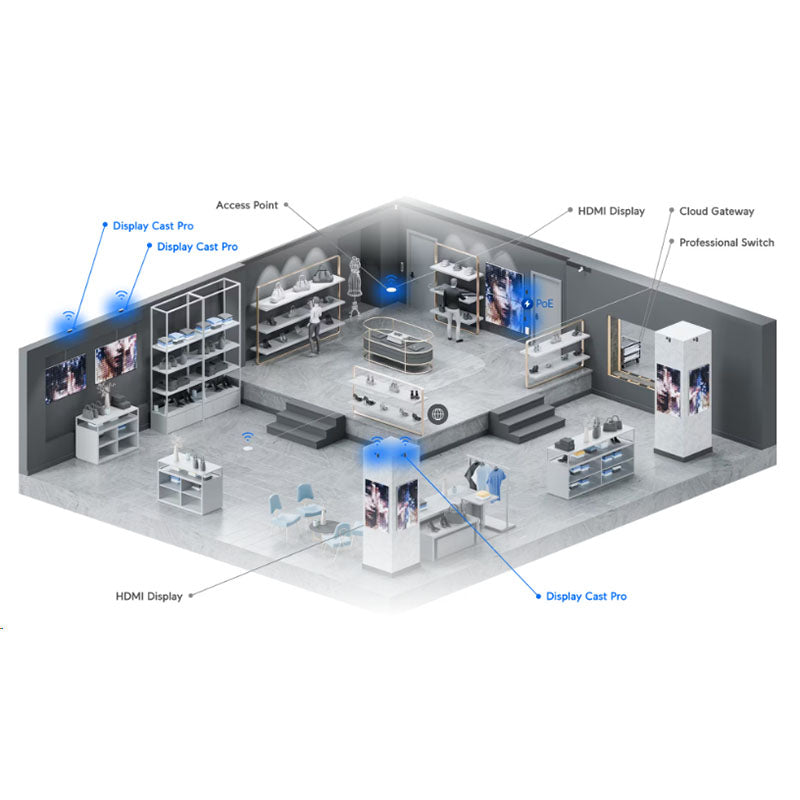

Managed digital signage player for HDMI displays with media content playback, web mode, and USB-C peripheral support.

Features:

Presents media content up to 4K resolution, websites, and YouTube videos to any HDMI-compatible display

Create multimedia playlists and dynamic digital signage layouts with UniFi Connect

Automatically power on/off display with HDMI CEC

Keyboard and mouse control via USB-C

PoE in or USB-C adapter power

Connected with UniFi WiFi Auto-Link or Ethernet

_{Note. USB-C power adapter and HDMI cable not included. Does not support Protect camera streaming. Use Protect ViewPort to view Protect camera feeds on an HDMI display.}

Frequently asked questions5 questions

What is the UC-Cast-Pro used for?

It is a managed digital signage player for HDMI displays. It presents media content up to 4K, websites and YouTube videos, and lets you build playlists and dynamic signage layouts through UniFi Connect.

How is the UC-Cast-Pro powered?

It can be powered by PoE using the GbE RJ45 port (48V DC, 0.35A) or by a USB Type-C connection (5V DC, 3A). The USB-C power adapter is not included.

What display output and video resolutions does it support?

It has one HDMI output and supports video content at 480p, 720p, 1080p and 4K. An HDMI cable is not included.

How does the UC-Cast-Pro connect to the network?

It connects over Ethernet or wirelessly using UniFi WiFi Auto-Link. It supports WiFi 2.4 GHz and 5 GHz on 802.11 a/b/g/n/ac/ax.

Can I use it to view UniFi Protect camera feeds?

No, it does not support Protect camera streaming. To view Protect camera feeds on an HDMI display, use a Protect ViewPort instead.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications17 specifications · 4 sections

Overview

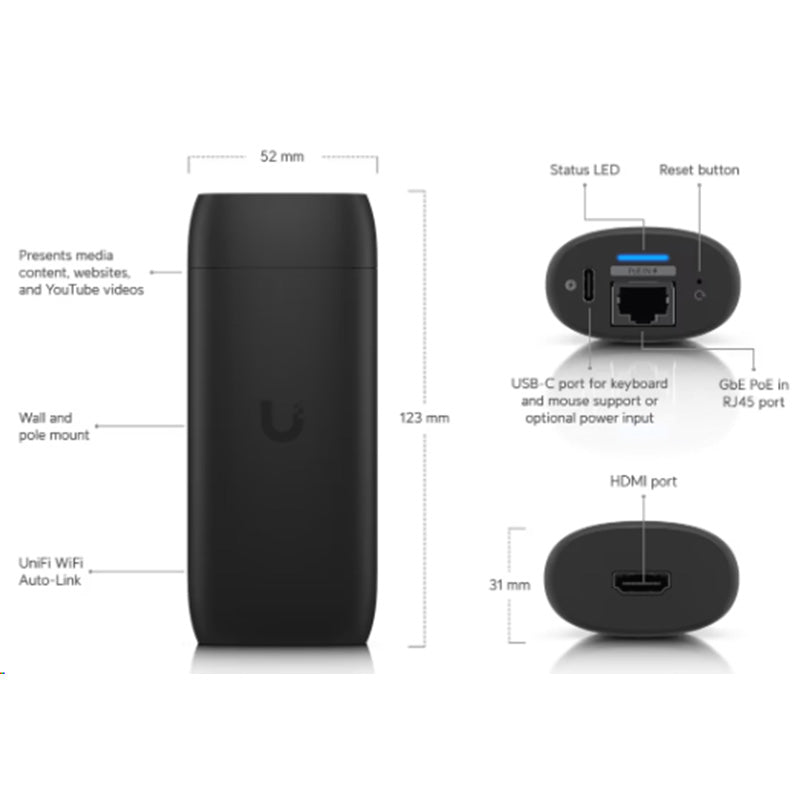

Dimensions	Without mount: 123 x 52 x 31 mm / (4.8 x 2.1 x 1.2") / With mount: 125.1 x 56.3 x 40.8 mm / (4.9 x 2.2 x 1.6")

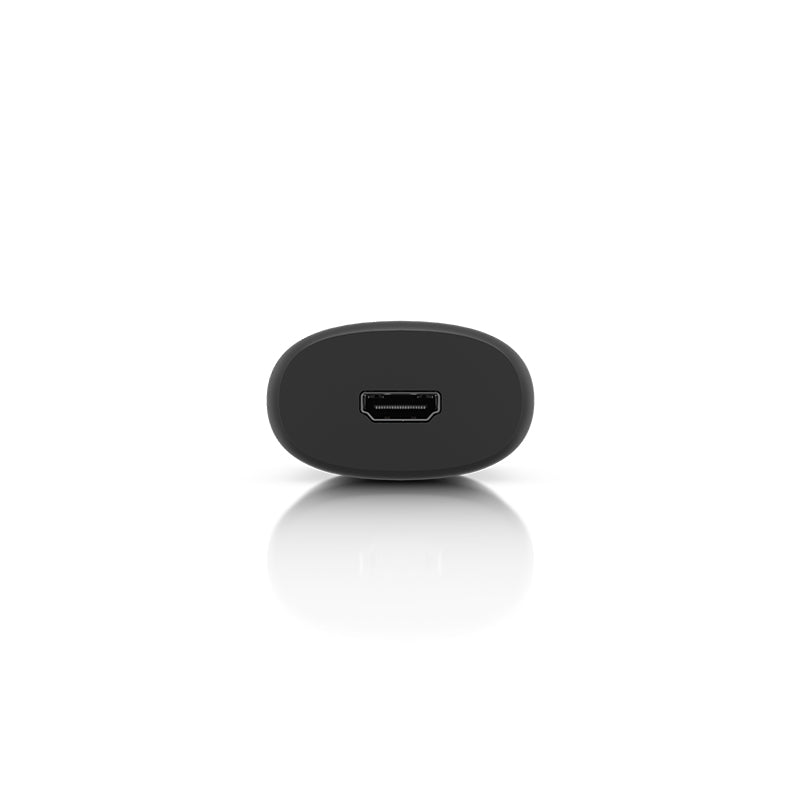

Display Output	(1) HDMI port
Video Content Support	480p / 720p / 1080p / 4k
Mechanical
Weight	Without mount: 240 g (8.5 oz) / With mount: 260 g (9.2 oz)

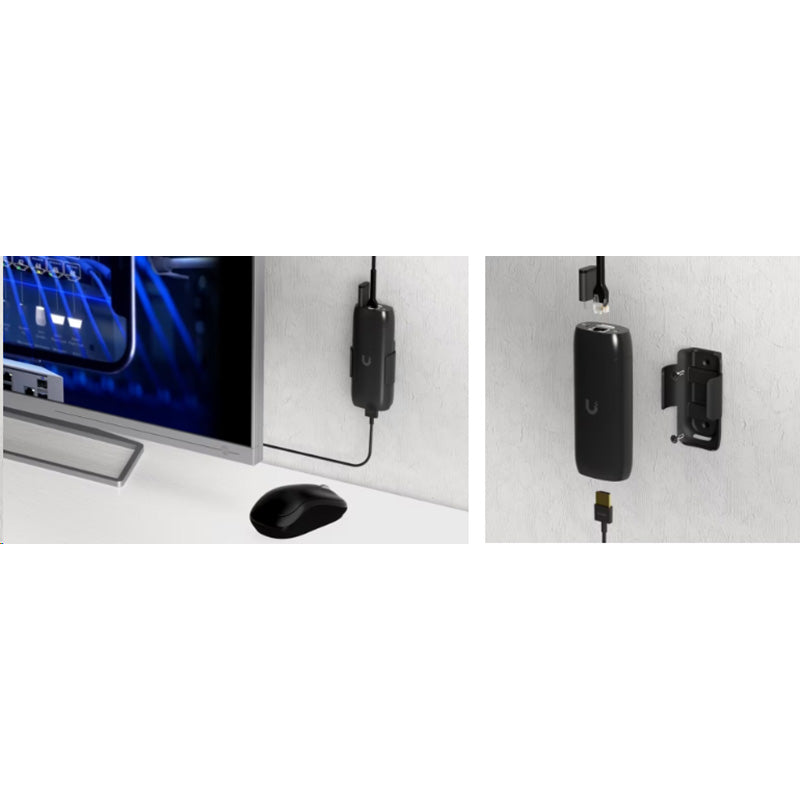

Pole Mount Diameter	1—2" (25—50 mm)
Hardware
Processor	Octa-core CPU including (2) ARM® Cortex®-A78 and (6) ARM® Cortex®-A55 / Integrated Mali-G57 GPU
Memory	Storage: 32 GB / RAM: 8 GB

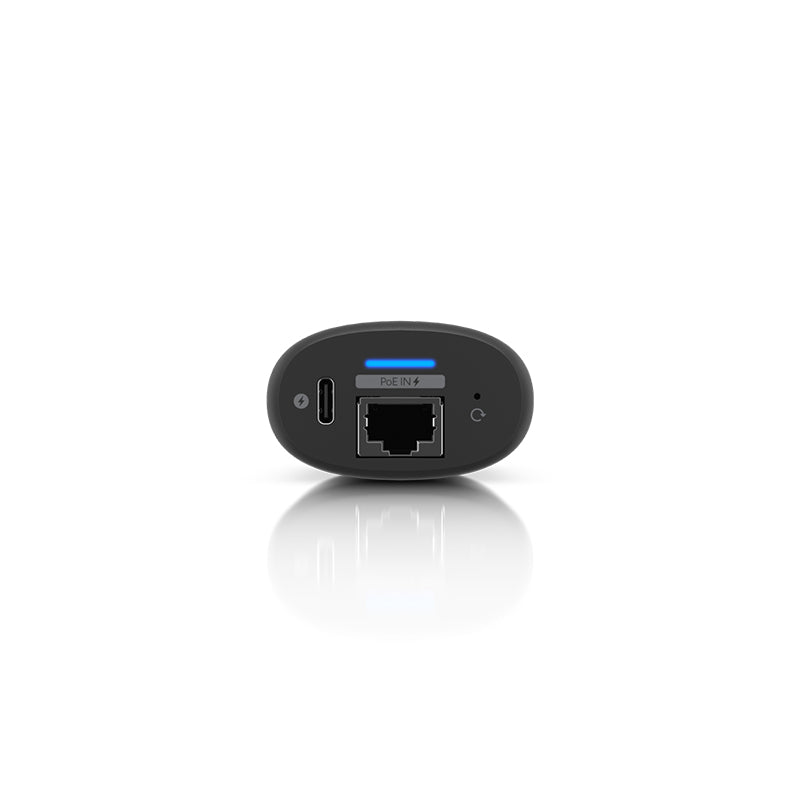

Power Method	(1) GbE RJ45 PoE 48V DC, 0.35A / (1) USB Type-C 5V DC, 3A / UL 60950-1/62368-1 LPS/PS2 PSU
Connectivity	WiFi 2.4G, BW 20/40 MHz / WiFi 5G, BW 20/40/80 MHz
WiFi Standards	802.11 a/b/g/n/ac/ax
LEDs · System	White/blue (<a href="https://help.ui.com/hc/en-us/articles/204910134-Understanding-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> )
Buttons	(1) Factory reset
Ambient Operating Temperature	0 to 40° C (32 to 104° F)
Ambient Operating Humidity	20 to 90% noncondensing
Certifications	CE, FCC, IC, Wi-Fi CERTIFIED / UL 62368-1, CSA C22.2 No. 62368-1, Anatel: 06981-25-08356
Software
Management Application · UniFi Connect Web	Version 3.14.6 and later
Management Application · UniFi Connect iOS™ and Android™	Version 2.18.1 and later
