Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UC-Display

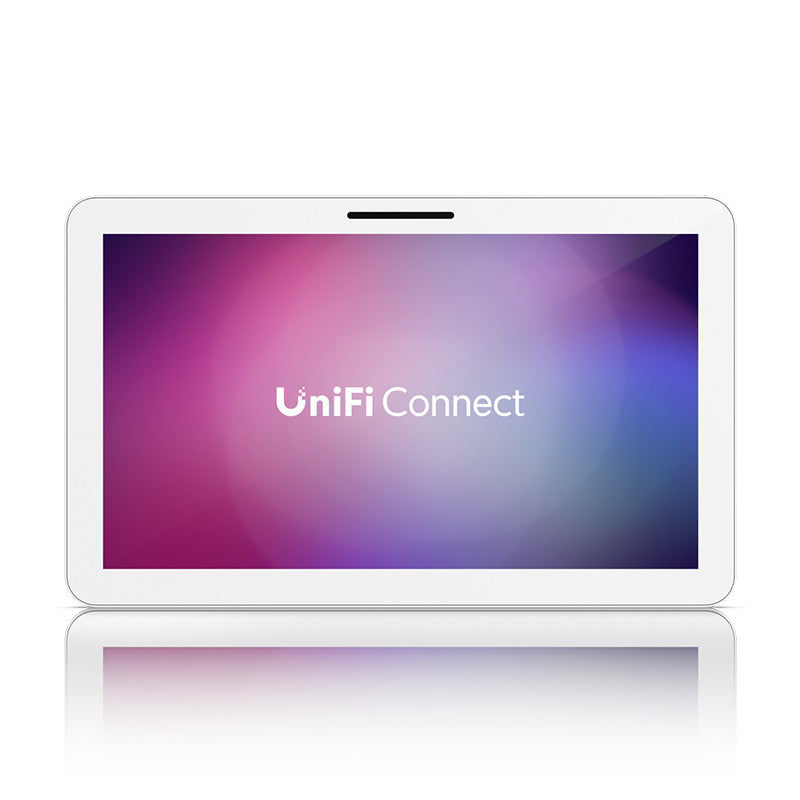

UC-Display Ubiquiti UniFi Connect Display
$1,541.25 AUD
Unit price
/
Unavailable
Out of stock
Brisbane (none in stock)Sydney (none in stock)Melbourne (none in stock)Adelaide (none in stock)Perth (none in stock)North Lakes (none in stock)
Description
Description
21.5" Full HD PoE++ touchscreen designed for UniFi Connect.
Features:
Ultra-bright 21.5" touch display

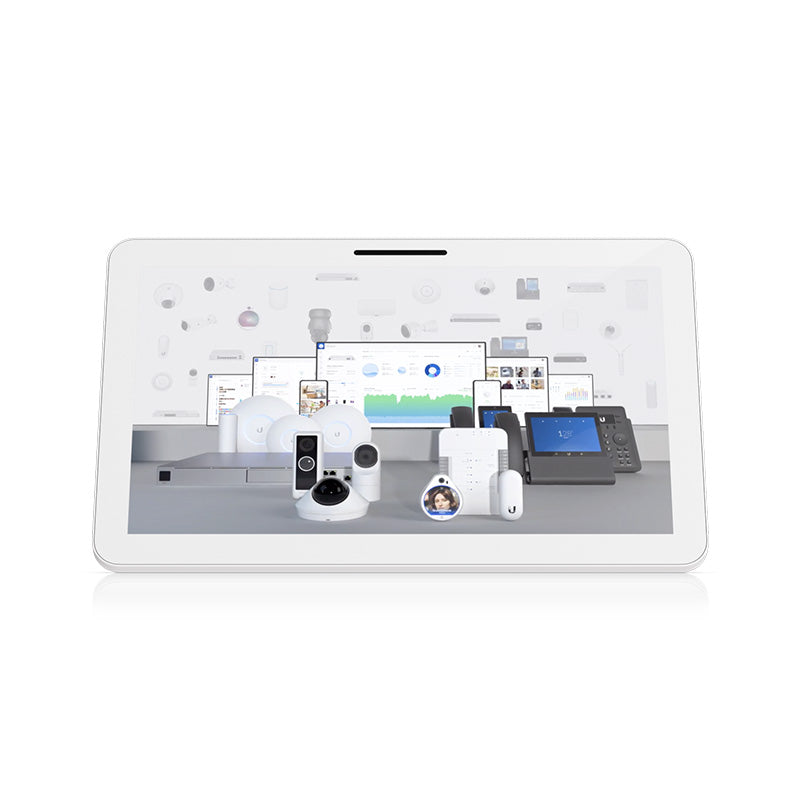

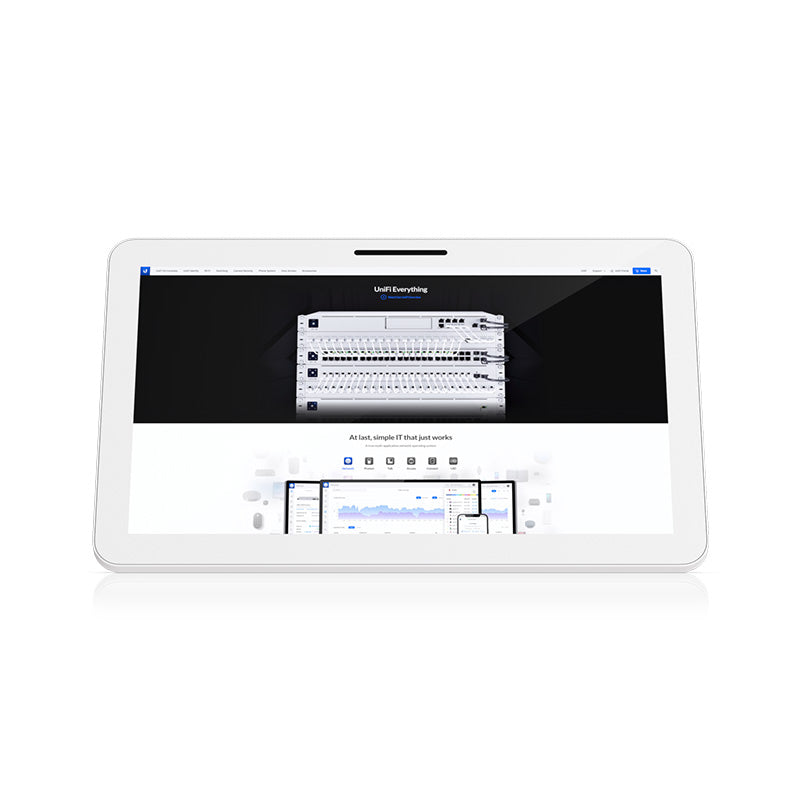

Display media, web pages, and Android apps with UniFi Connect
Included VESA mount adapter
Multiple mounting options*
PoE++ in
*Mounts sold separately.
Frequently asked questions5 questions
What is the UniFi Connect Display used for?
It is a 21.5" Full HD touchscreen designed for UniFi Connect. It can display media, web pages and Android apps.
How is the UniFi Connect Display powered?

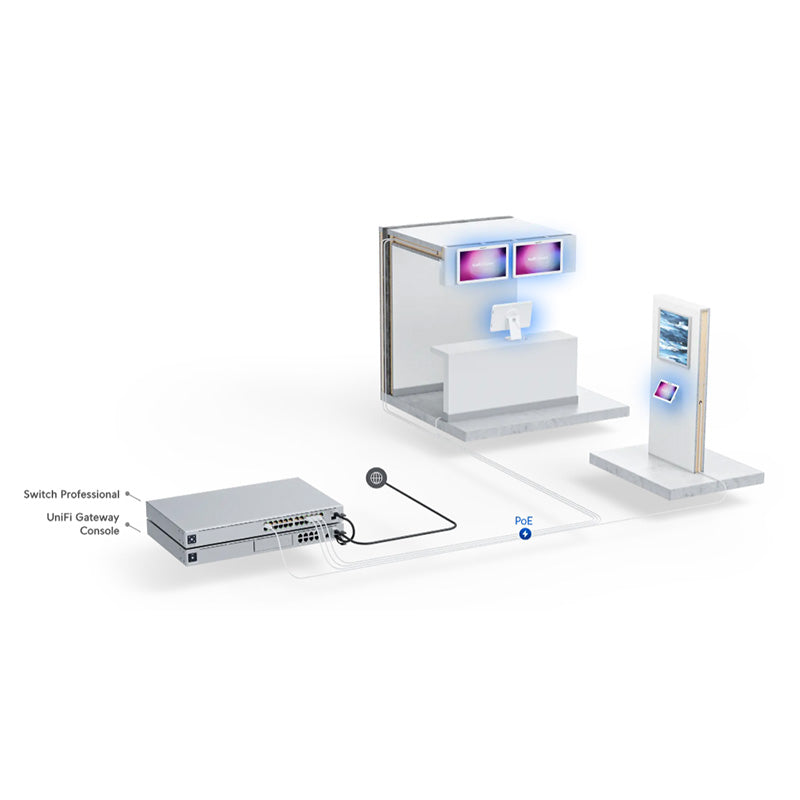

It is powered by PoE++ through its single GbE RJ45 port. Maximum power consumption is 27W.
What screen specifications does it have?
The display measures 21.5" (546 mm) diagonally with a 1920 x 1080 FHD (16:9) resolution. It uses capacitive multi-touch and has a typical brightness of 250 nits.
What mounting options are available?

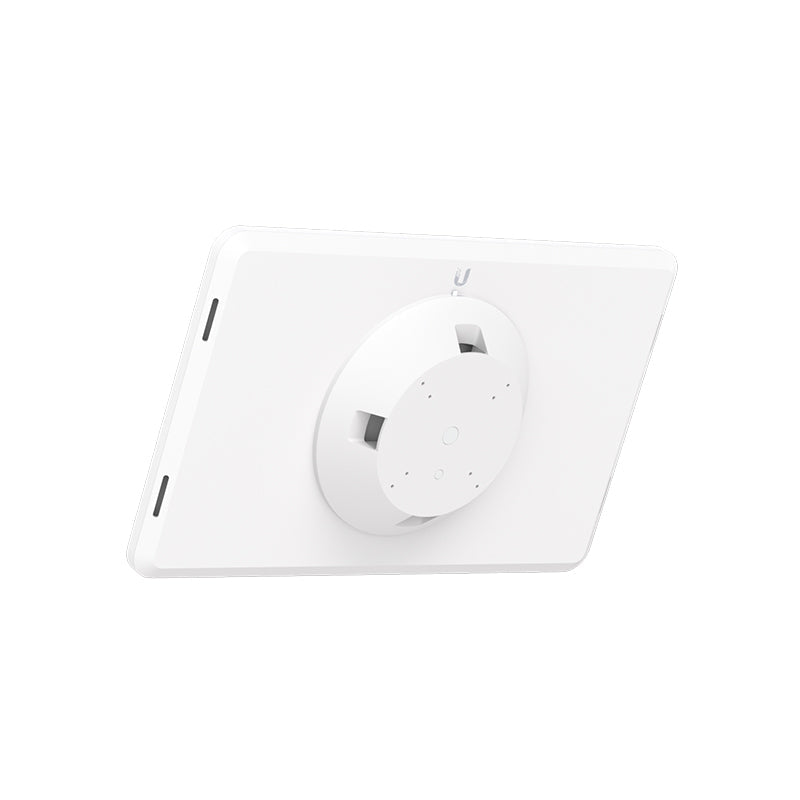

A VESA mount adapter is included. Table stand, surface, arm and flush mount options are also available as optional extras.
What connectivity and hardware does it have?
It has one GbE RJ45 port, Bluetooth 4.2 and a USB-C port reserved for a future function update. Internally it uses an octa-core ARM Cortex-A53 processor at 2.2 GHz with 3 GB RAM and 32 GB storage.
Specifications19 specifications · 4 sections
| Overview | |
|---|---|

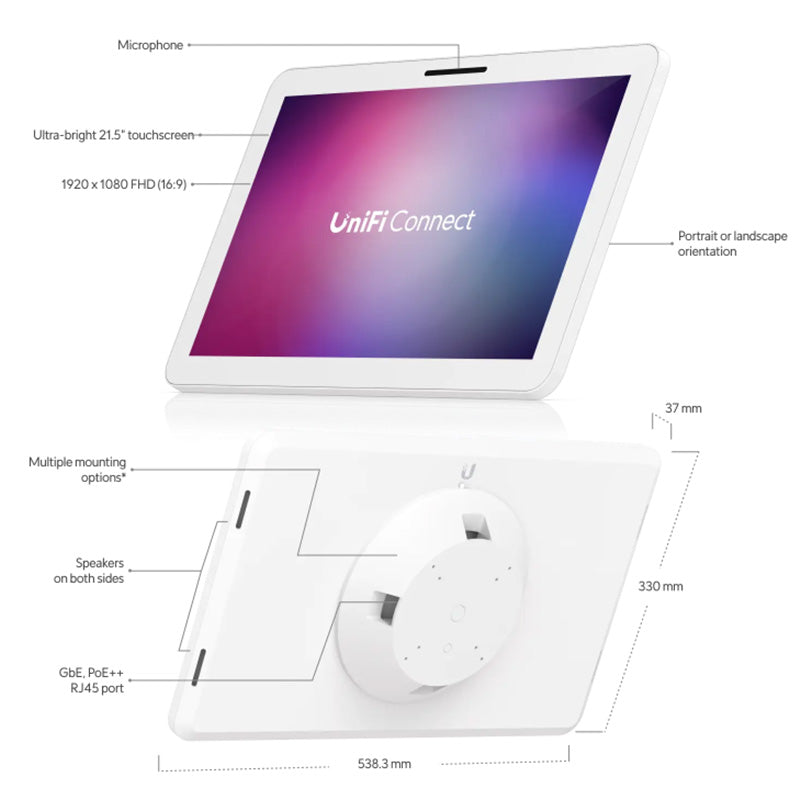

| Dimensions | 538.3 x 330 x 37 mm / (21.2 x 13 x 1.5") |
| Mounting | VESA mount adapter (Included) / Table stand, surface, arm, flush mount (Optional) |
| Touch Screen Technology | Capacitive multi-touch |
| Mechanical | |
| Weight | 4.9 kg (10.8 lb) |
| Enclosure Material | Polycarbonate, aluminum |
| Hardware | |
| Display · Size | 546 mm (21.5") diagonal |
| Display · Brightness | 250 nits (Typical) |
| Display · Resolution | 1920 x 1080 FHD (16:9) |
| Processor | Octa-core ARM® Cortex®-A53 at 2.2 GHz |
| Memory | Storage: 32 GB / RAM: 3 GB |
| Power Method | PoE++ |
| Max. Power Consumption | 27W |
| Connectivity | (1) GbE RJ45 port / (1) USB-C port (Reserved feature for future function update) / Bluetooth® 4.2 |
| Buttons | (1) Factory Reset |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 20 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Management Application · UniFi Connect Web | Version 2.1.14 and later |
| Management Application · UniFi Connect iOS™ and Android™ | Version 1.0.0 and later |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model UC-Display · Ubiquiti's spec sheet
