UCG-Industrial - Ubiquiti UniFi Cloud Gateway Industrial
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
Cloud Gateway Industrial – Rugged, High‑Performance Networking for Demanding Environments
The Cloud Gateway Industrial is engineered for organisations that require unwavering reliability, advanced routing performance and robust power delivery in challenging conditions. Designed as a ruggedised, fanless 10 GbE UniFi Cloud Gateway, it delivers exceptional durability and silent operation, making it ideal for industrial, commercial and high‑density deployments.
Built for Power and Performance
With an impressive 350 W total system power, the Cloud Gateway Industrial supports extensive PoE requirements without compromise. Its 10 GbE connectivity ensures rapid data throughput, while integrated microSD storage enables full UniFi application support, including local logging and edge recording. This combination of power and intelligence makes it a dependable core for complex network infrastructures.
Industrial‑Grade Design
The fanless architecture enhances longevity by eliminating moving parts, while the rugged enclosure protects against harsh environmental conditions. Whether deployed in manufacturing facilities, outdoor cabinets or high‑demand enterprise networks, it maintains stable, efficient performance.
Future‑Ready Connectivity
The device includes onboard SIM slots designed for Remote SIM integration with UniFi 5G Max Outdoor, enabling flexible connectivity options once supported via a forthcoming software update. This ensures your network remains adaptable as technology evolves.
Seamless UniFi Integration
As part of the UniFi ecosystem, the Cloud Gateway Industrial offers centralised management, advanced security features and effortless scalability. It is the ideal choice for organisations seeking a powerful, reliable and future‑proof gateway that delivers exceptional performance in even the most demanding environments.
*The onboard SIM slots are exclusively for Remote SIM integration with the UniFi 5G Max Outdoor. Support coming soon via software update.
Frequently asked questions5 questions
What is the UCG-Industrial designed for?
What ports and PoE capacity does it offer?
How many UniFi devices and users can it manage?
Does it include storage for UniFi Protect recordings?
Can I use a SIM card in the onboard SIM slots?
Specifications53 specifications · 6 sections
| Overview | |
|---|---|
| Dimensions | Device: 307.9 x 203.5 x 43.7 mm / (12.1 x 8 x 1.7") / Table stand: 203.5 x 100.2 x 21.9 mm / (8 x 3.9 x 0.9") |
| Managed UniFi Devices | 50+ |
| Managed Cameras | (15) HD / (8) 2K / (5) 4K |
| Managed Access Hubs | 50 |
| Simultaneous Users Connected | 500+ |
| Max. WAN Port Count | 5 |
| Default WAN Ports | (1) 10G SFP+ / (1) 10 GbE RJ45 / (1) 2.5 GbE RJ45 |

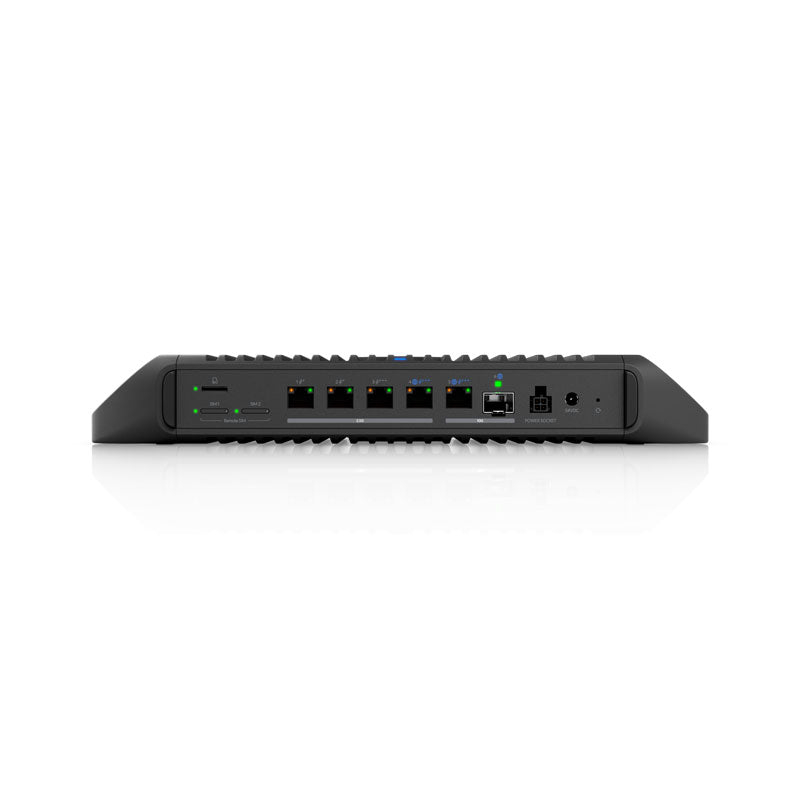

| Port Layout · 2.5 GbE RJ45 | 4 (2 PoE+++, 2 PoE+) / (2.5G/1G/100M) |
| Port Layout · 10 GbE RJ45 | 1 (PoE+++) / (10G/5G/2.5G/1G/100M) |
| Port Layout · 10G SFP+ | 1 / (10G/1G) |
| IDS/IPS Throughput | 5 Gbps |

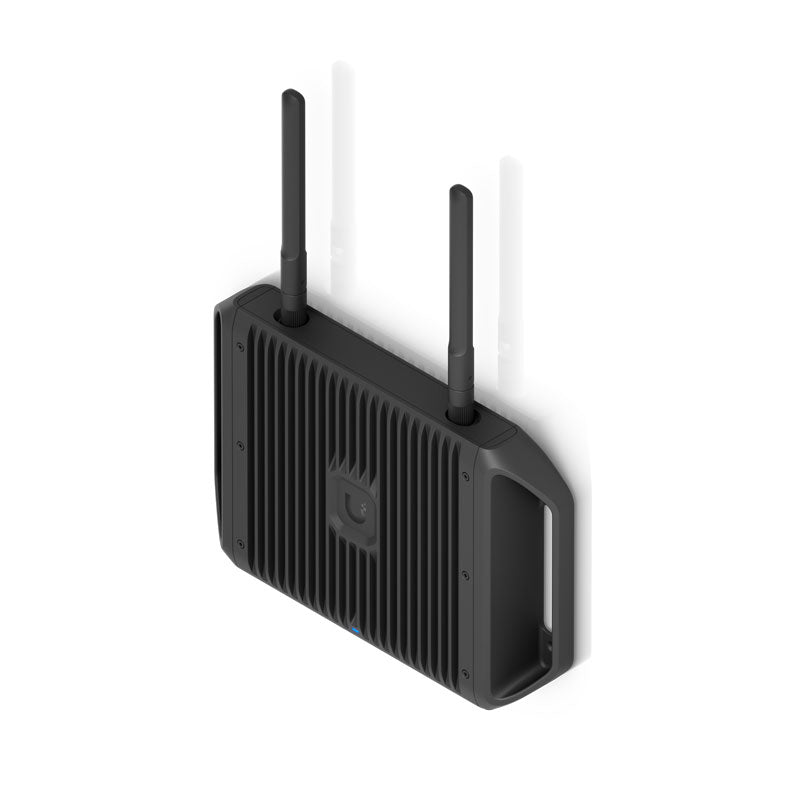

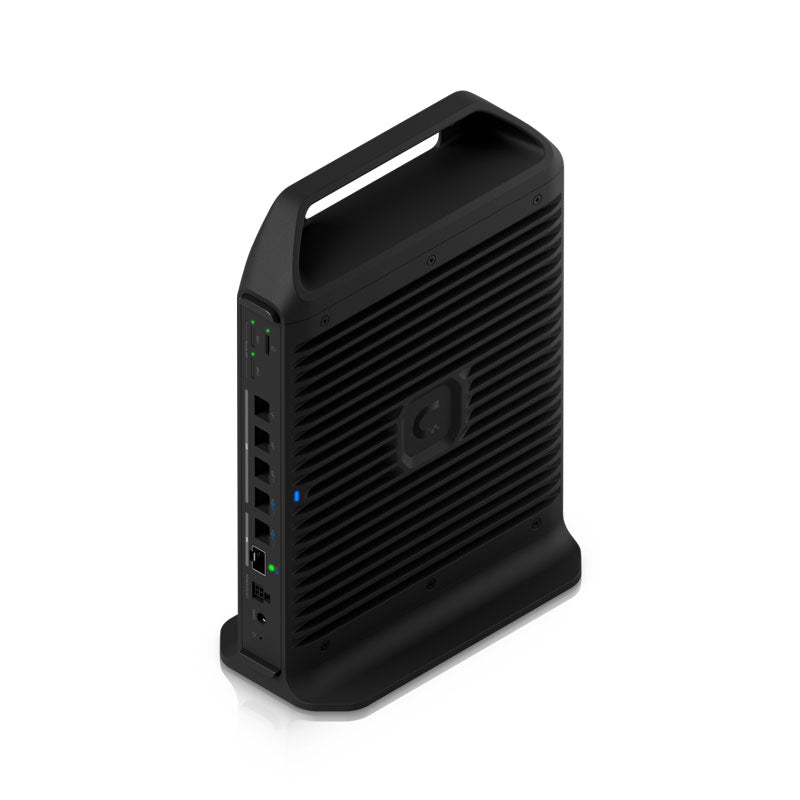

| Form Factor | Wall-mounted / Compact desktop (Table stand included) / Rack mount (Accessory sold separately) |
| Coverage Area | 115 m² (1,250 ft²) |
| Security | |
| IDS/IPS Signatures | 55,000+ with CyberSecure |
| Networking | |
| MAC Address Table Size | 4,000 |
| Integrated WiFi | |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7) |
| Throughput · 5 GHz | 4.3 Gbps |
| Throughput · 2.4 GHz | 688 Mbps |
| MIMO · 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Antenna Gain · 5 GHz | Stub antenna: 5 dBi / Terminal (Omni) antenna: 6 dBi |
| Antenna Gain · 2.4 GHz | Stub antenna: 3 dBi / Terminal (Omni) antenna: 6 dBi |
| Max. TX Power · 5 GHz | 26 dBm |
| Max. TX Power · 2.4 GHz | 23 dBm |
| Supported Data Rates · 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) |
| Supported Data Rates · 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Supported Data Rates · 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Supported Data Rates · 802.11b | 1, 2, 5.5, 11 Mbps |
| Supported Data Rates · 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Hardware | |
| NVR Storage | Pre-installed 128 GB microSD for NVR |
| Expansion Slot | MicroSD Card |
| PoE Budget | DC input: 270W / ATX power: 75W |
| Max. PoE Wattage per Port by PSE · PoE+ | 30W |
| Max. PoE Wattage per Port by PSE · PoE+++ | 90W |
| Voltage Range PoE Mode | 50-57V |
| Max. Power Consumption | 28W (Excluding PoE output) |
| Power Method | (1) DC Input (350W PSU) / (1) ATX power (48V) |
| Power Supply | 54V DC, 350W (Adapter included) / ATX power (48V) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 95 BTU/hr (Excluding PoE output) |
| Processor | Quad-core ARM® Cortex®-A73 at 2.2 GHz |
| System Memory | 3 GB |
| Weight | Device: 2.4 kg (5.3 lb) / Table stand: 321 g (11.3 oz) |
| Enclosure Material | Device: Polycarbonate, aluminium alloy / Table stand: Polycarbonate, galvanized steel, silicone rubber |
| Management | Ethernet / Bluetooth |
| Button | (1) Factory reset / (2) Handle release buttons |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Application Requirements · Mobile App | UniFi iOS™: Version 10.32.0 and later / UniFi Android™: Version 10.35.0 and later |
